| Item | Part No. | Part Name | Qty | Serial No. |
| (709-12-13400) | VALVE ASS'Y | 10012- | ||

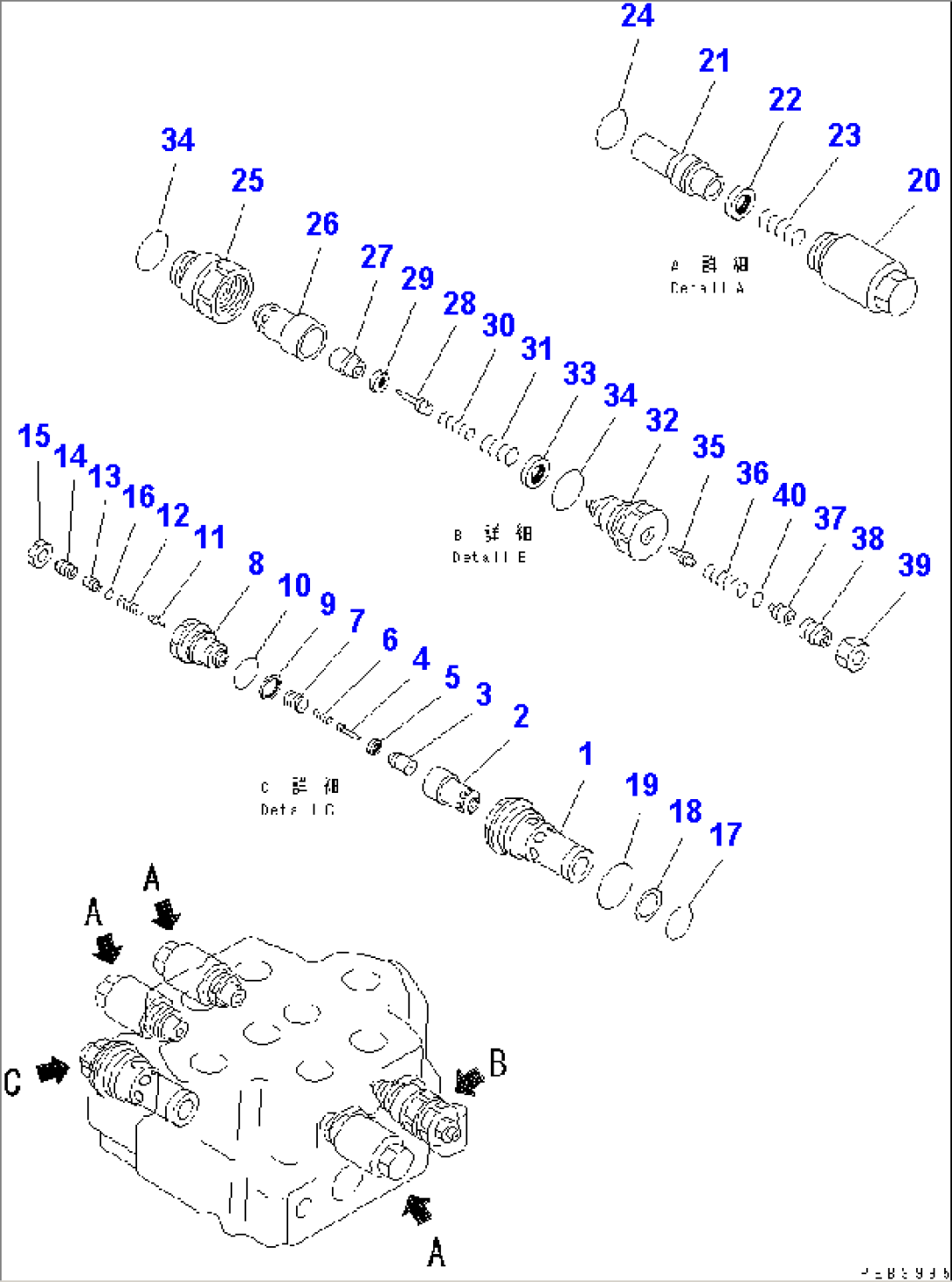

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-02A0A | ||||
| 709-90-72800 | VALVE ASS'Y | 10019- | ||
| 1 | 709-10-51550 | SLEEVE | 10019- | |
| 2 | \6\ | SLEEVE | 10019- | |
| 3 | \6\ | POPPET | 10019- | |
| 4 | \6\ | PISTON | 10019- | |
| 5 | \6\ | SEAL | 10019- | |
| 6 | 709-70-71210 | SPRING | 10019- | |
| 7 | 709-90-71220 | SPRING | 10019- | |
| 8 | \6\ | PLUG | 10019- | |
| 9 | \6\ | SEAL | 10019- | |
| 10 | \6\ | O-RING | 10019- | |
| 11 | \6\ | POPPET | 10019- | |
| 12 | \6\ | SPRING | 10019- | |
| 13 | \6\ | SPACER | 10019- | |
| 14 | \6\ | SCREW | 10019- | |
| 15 | 01583-11408 | NUT | 10019- | |
| 16 | \6\ | O-RING | 10019- | |
| 17 | 07000-13032 | O-RING | 10019- | |
| 18 | 07001-03032 | RING,BACK UP | 10019- | |
| 19 | 07002-05234 | O-RING | 10019- | |
| 700-90-74001 | VALVE ASS'Y,SUCTION | 10012- | ||
| 20 | \6\ | SLEEVE | 10012- | |
| 21 | \6\ | VALVE | 10012- | |
| 22 | \6\ | SEAL | 10012- | |
| 23 | \6\ | SPRING | 10012- | |
| 24 | 07002-03634 | O-RING | 10012- | |
| 709-90-71600 | VALVE ASS'Y,SUCTION AND SAFETY | 10012- | ||
| 25 | \6\ | SLEEVE | 10012- | |
| 26 | \6\ | SLEEVE | 10012- | |
| 27 | \6\ | POPPET | 10012- | |
| 28 | \6\ | PISTON | 10012- | |
| 29 | \6\ | SEAL | 10012- | |
| 30 | \6\ | SPRING | 10012- | |
| 31 | \6\ | SPRING | 10012- | |
| 32 | \6\ | PLUG | 10012- | |
| 33 | \6\ | SEAL | 10012- | |
| 34 | 07002-03634 | O-RING | 10012- | |
| 35 | \6\ | POPPET | 10012- | |
| 36 | \6\ | SPRING | 10012- | |
| 37 | \6\ | SPACER | 10012- | |
| 38 | \6\ | SCREW | 10012- | |
| 39 | \6\ | NUT | 10012- | |
| 40 | \6\ | O-RING | 10012- |
