| Item | Part No. | Part Name | Qty | Serial No. |
| (723-63-12101) | CONTROL VALVE | 3348- | ||
| (723-63-12100) | CONTROL VALVE | 3034-3347 | ||

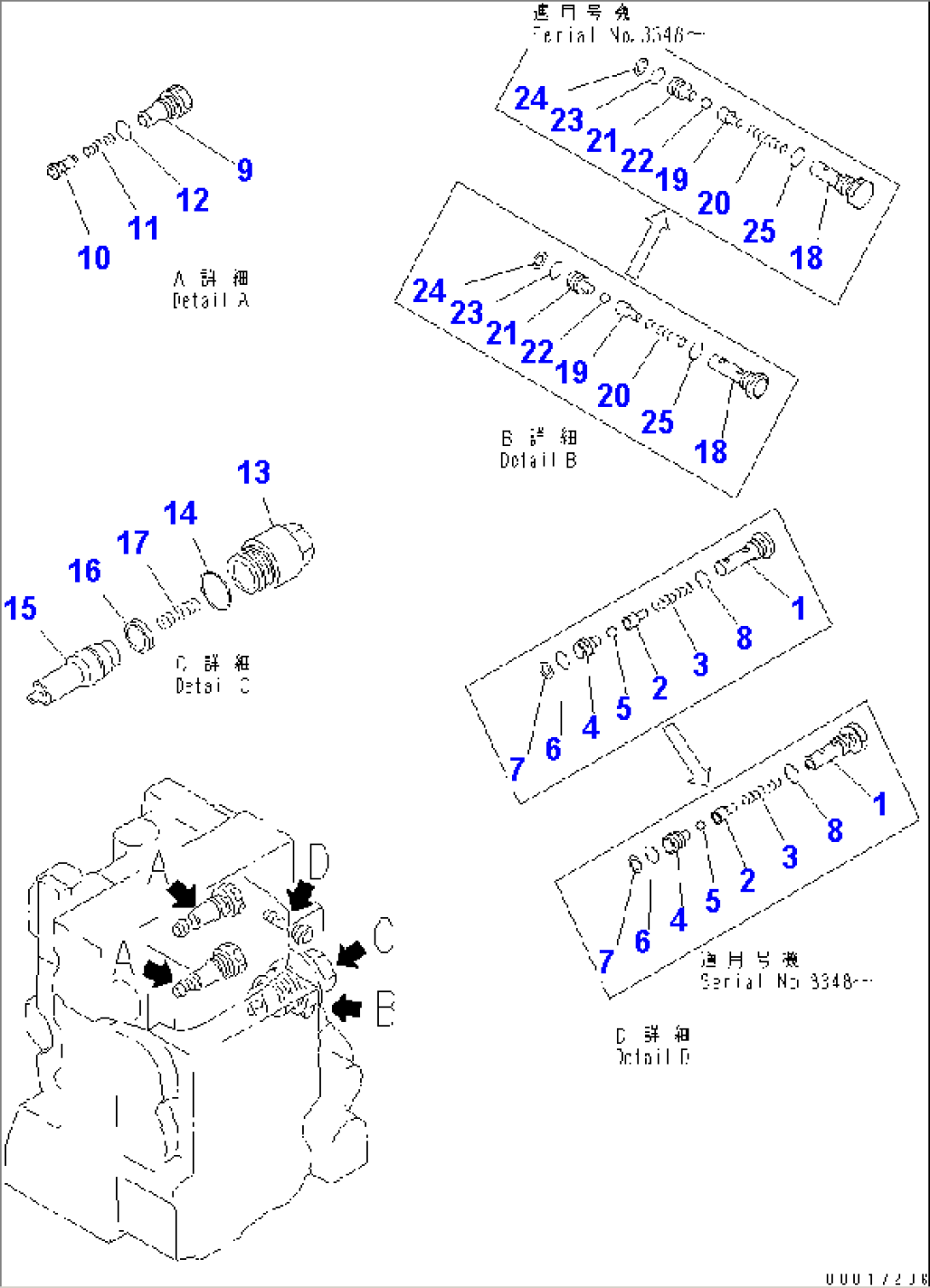

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1663-01A0 TO Y1663-04A0. | ||||
| 723-60-23301 | VALVE ASS'Y,CHECK | 3348- | ||
| 723-60-23300 | VALVE ASS'Y,CHECK | 3034-3347 | ||
| 1 | \6\ | SLEEVE | 3348- | |
| \6\ | SLEEVE | 3034-3347 | ||
| 2 | \6\ | RETAINER | 3034- | |
| 3 | \6\ | SPRING | 3034- | |
| 4 | \6\ | SEAT | 3034- | |
| 5 | \6\ | BALL | 3034- | |
| 6 | 07000-11005 | O-RING | 3034- | |
| 7 | 07001-01005 | RING,BACK-UP | 3034- | |
| 8 | 07002-11023 | O-RING | 3034- | |
| 723-60-23400 | VALVE ASS'Y,CHECK | 3034- | ||
| 9 | \6\ | SLEEVE | 3034- | |
| 10 | \6\ | VALVE | 3034- | |
| 11 | \6\ | SPRING | 3034- | |
| 12 | 07002-11823 | O-RING | 3034- | |
| 723-60-23800 | VALVE ASS'Y,SUCTION | 3034- | ||
| 13 | \6\ | SLEEVE | 3034- | |
| 14 | 07002-13634 | O-RING | 3034- | |
| 15 | \6\ | VALVE | 3034- | |
| 16 | \6\ | SEAL | 3034- | |
| 17 | \6\ | SPRING | 3034- | |
| 723-60-23601 | VALVE ASS'Y,CHECK | 3348- | ||
| 723-60-23600 | VALVE ASS'Y,CHECK | 3034-3347 | ||
| 18 | \6\ | SLEEVE | 3348- | |
| \6\ | SLEEVE | 3034-3347 | ||
| 19 | \6\ | RETAINER | 3034- | |
| 20 | \6\ | SPRING | 3034- | |
| 21 | \6\ | SEAT | 3348- | |
| \6\ | SEAT | 3034-3347 | ||
| 22 | \6\ | BALL | 3034- | |
| 23 | 07000-11005 | O-RING | 3034- | |
| 24 | 07001-01005 | RING,BACK-UP | 3034- | |
| 25 | 07002-11023 | O-RING | 3034- |
