| Item | Part No. | Part Name | Qty | Serial No. |
| (723-63-11104) | CONTROL VALVE | 3010- | ||
| (\0\723-63-11103) | CONTROL VALVE | 3001-3009 | ||

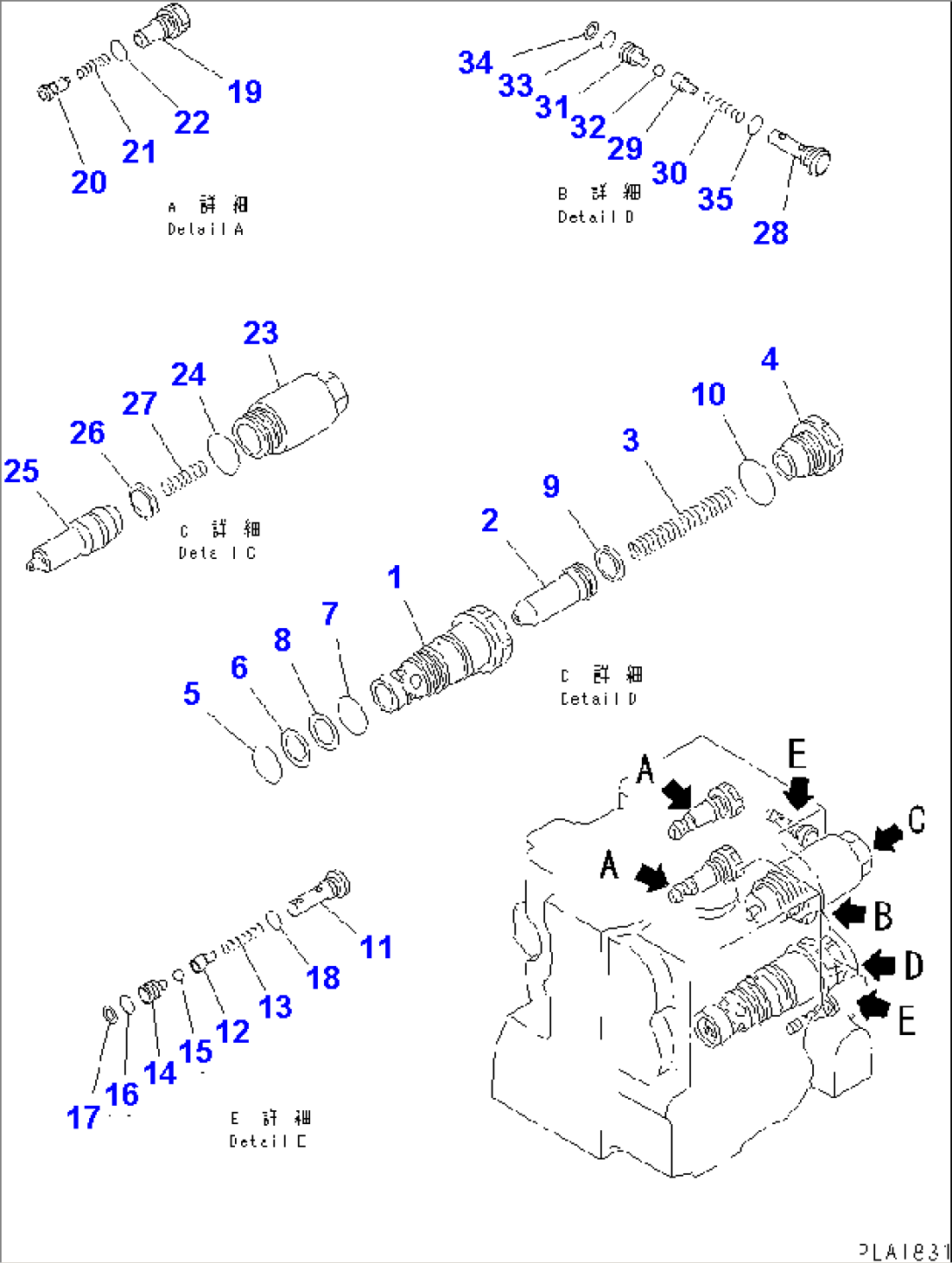

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1666-01A0 TO Y1666-06A0. | ||||
| 723-60-23200 | VALVE ASS'Y | 3001- | ||
| 1 | \6\ | SLEEVE | 3001- | |
| 2 | \6\ | VALVE | 3001- | |
| 3 | 709-64-91130 | SPRING | 3001- | |
| 4 | 723-60-23240 | PLUG | 3001- | |
| 5 | 07000-13035 | O-RING | 3001- | |
| 6 | 07001-03035 | RING | 3001- | |
| 7 | 07000-13030 | O-RING | 3001- | |
| 8 | 07001-03030 | RING | 3001- | |
| 9 | \6\ | SEAL | 3001- | |
| 10 | 07002-03334 | O-RING | 3001- | |
| 723-60-23300 | VALVE ASS'Y,CHECK | 3001- | ||
| 11 | \6\ | SLEEVE | 3001- | |
| 12 | \6\ | RETAINER | 3001- | |
| 13 | \6\ | SPRING | 3001- | |
| 14 | \6\ | SEAT | 3001- | |
| 15 | \6\ | BALL | 3001- | |
| 16 | 07000-11005 | O-RING | 3001- | |
| 17 | 07001-01005 | RING | 3001- | |
| 18 | 07002-11023 | O-RING | 3001- | |
| 723-60-23400 | VALVE ASS'Y,CHECK | 3001- | ||
| 19 | \6\ | SLEEVE | 3001- | |
| 20 | \6\ | VALVE | 3001- | |
| 21 | \6\ | SPRING | 3001- | |
| 22 | 07002-11823 | O-RING | 3001- | |
| 709-90-64100 | VALVE ASS'Y,SUCTION | 3001- | ||
| 23 | \6\ | SLEEVE | 3001- | |
| 24 | 07002-03634 | O-RING | 3001- | |
| 25 | \6\ | VALVE | 3001- | |
| 26 | \6\ | SEAL | 3001- | |
| 27 | \6\ | SPRING | 3001- | |
| 723-60-23600 | VALVE ASS'Y,CHECK | 3001- | ||
| 28 | \6\ | SLEEVE | 3001- | |
| 29 | \6\ | RETAINER | 3001- | |
| 30 | \6\ | SPRING | 3001- | |
| 31 | \6\ | SEAT | 3001- | |
| 32 | \6\ | BALL | 3001- | |
| 33 | 07000-11005 | O-RING | 3001- | |
| 34 | 07001-01005 | RING | 3001- | |
| 35 | 07002-11023 | O-RING | 3001- |
