| Item | Part No. | Part Name | Qty | Serial No. |
| (723-4A-10103) | VALVE ASS'Y | 1101- | ||

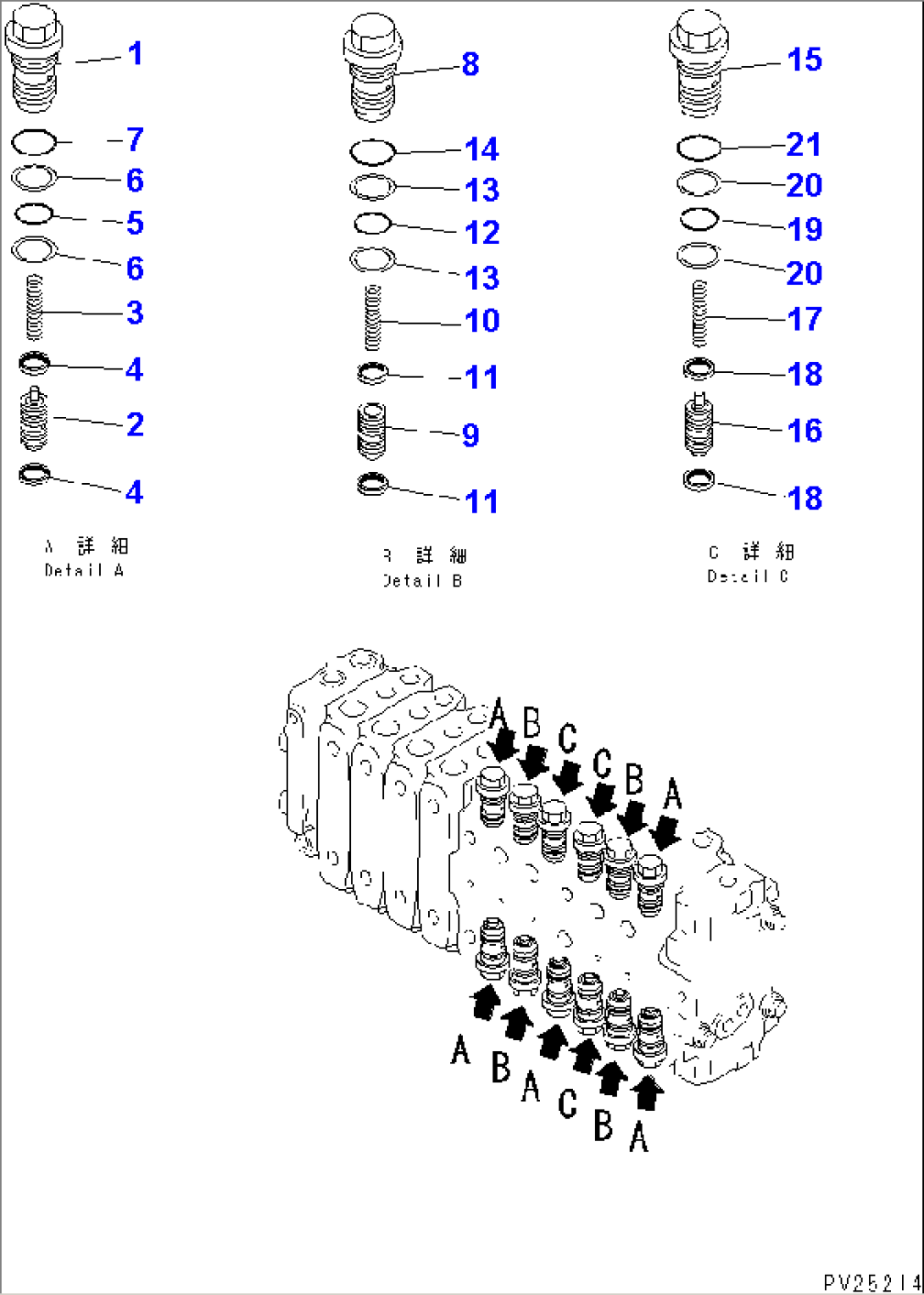

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 TO 6211. | ||||
| 723-46-40100 | VALVE ASS'Y | 1101- | ||
| 1 | \6\ | SLEEVE | 1101- | |
| 2 | \6\ | PISTON SUB ASS'Y | 1101- | |
| 3 | \6\ | SPRING | 1101- | |
| 4 | \6\ | SEAL | 1101- | |
| 5 | 700-93-11320 | O-RING | 1101- | |
| 6 | 723-46-41950 | RING | 1101- | |
| 7 | 07002-13634 | O-RING | 1101- | |
| 723-46-40300 | VALVE ASS'Y | 1101- | ||
| 8 | \6\ | SLEEVE | 1101- | |
| 9 | \6\ | PISTON | 1101- | |
| 10 | \6\ | SPRING | 1101- | |
| 11 | \6\ | SEAL | 1101- | |
| 12 | 700-93-11320 | O-RING | 1101- | |
| 13 | 723-46-41950 | RING | 1101- | |
| 14 | 07002-13634 | O-RING | 1101- | |
| 723-46-45100 | VALVE ASS'Y | 1101- | ||
| 15 | \6\ | SLEEVE | 1101- | |
| 16 | \6\ | PISTON SUB ASS'Y | 1101- | |
| 17 | \6\ | SPRING | 1101- | |
| 18 | \6\ | SEAL | 1101- | |
| 19 | 700-93-11320 | O-RING | 1101- | |
| 20 | 723-46-41950 | RING | 1101- | |
| 21 | 07002-13634 | O-RING | 1101- |
