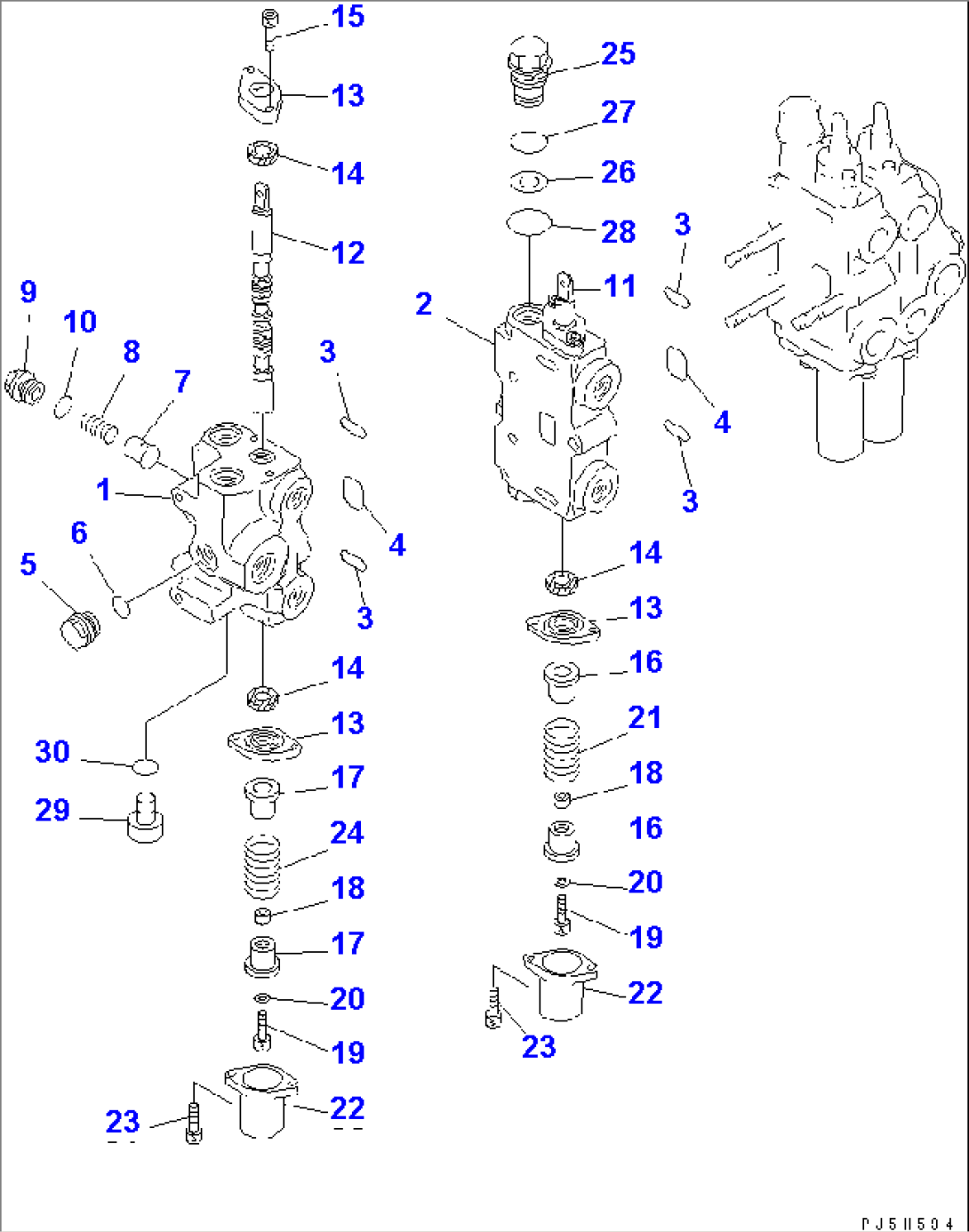

CONTROL VALVE (4-SPOOL) (1/3) (FOR RIPPER)(#3731-)

Item	Part No.	Part Name	Qty	Serial No.
	700-84-84000	CONTROL VALVE		3731-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1664-01A0A T0 Y1664-03A0A .
	\6\	VALVE SUB ASS'Y		3731-
	709-84-20200	BODY SUB ASS'Y		3731-
1	\6\	BODY,VALVE		3731-
2	\6\	BLOCK,VALVE		3731-
3	07000-13038	O-RING		3731-
4	07000-13050	O-RING		3001-
5	700-22-11370	PLUG		3001-
6	07002-12434	O-RING		3001-
7	700-42-31460	VALVE		3001-
8	700-90-51320	SPRING		3731-
9	700-84-11320	PLUG		3001-
10	07002-13034	O-RING		3001-
11	\6\	SPOOL		3731-
12	\6\	SPOOL		3731-
13	700-84-13891	PLATE		3731-
14	700-84-13910	SEAL		3731-
15	01252-60612	BOLT		3731-
16	700-84-11631	RETAINER		3731-
17	700-83-11530	RETAINER		3731-
18	700-84-11641	COLLAR		3001-
19	01252-60830	BOLT		3731-
20	01643-30823	WASHER		3001-
21	700-84-11650	SPRING		3001-
22	700-84-11390	COVER		3001-
23	01252-60625	BOLT		3731-
24	700-83-11540	SPRING		3731-
25	700-84-13960	PLUG		3731-
26	700-80-64220	RING		3731-
27	07002-13034	O-RING		3731-
28	700-22-11410	O-RING		3731-
29	07040-13316	PLUG		3731-
30	07002-13334	O-RING		3731-
