| Item | Part No. | Part Name | Qty | Serial No. |
| (723-4A-10200) | VALVE ASS'Y | | 1002- |

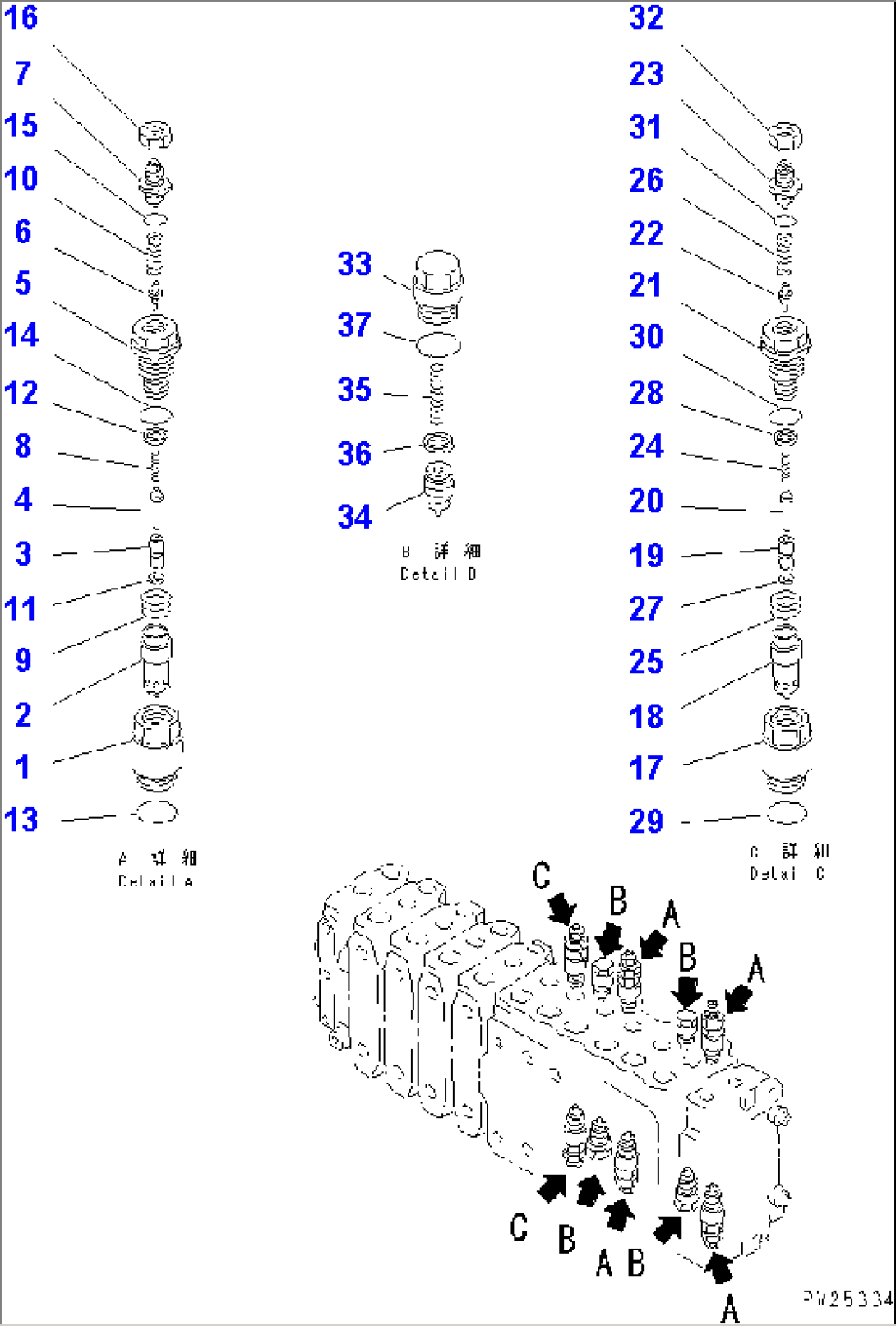

| | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 TO 6211. | | |
| 709-70-74700 | VALVE ASS'Y,SUCTION AND RELIEF | | 1002- |
| 1 | \6\ | SLEEVE | | 1002- |
| 2 | \6\ | SLEEVE | | 1002- |
| 3 | \6\ | POPPET | | 1002- |
| 4 | \6\ | PISTON | | 1002- |
| 5 | \6\ | PLUG | | 1002- |
| 6 | \6\ | POPPET | | 1002- |
| 7 | \6\ | SCREW | | 1002- |
| 8 | \6\ | SPRING | | 1002- |
| 9 | \6\ | SPRING | | 1002- |
| 10 | \6\ | SPRING | | 1002- |
| 11 | \6\ | SEAL | | 1002- |
| 12 | \6\ | SEAL | | 1002- |
| 13 | 709-25-11390 | O-RING | | 1002- |
| 14 | \6\ | O-RING | | 1002- |
| 15 | 07000-02011 | O-RING | | 1002- |
| 16 | 01583-11408 | NUT | | 1002- |
| 709-70-75400 | VALVE ASS'Y,SUCTION AND RELIEF | | 1002- |
| 17 | \6\ | SLEEVE | | 1002- |
| 18 | \6\ | SLEEVE | | 1002- |
| 19 | \6\ | POPPET | | 1002- |
| 20 | \6\ | PISTON | | 1002- |
| 21 | \6\ | PLUG | | 1002- |
| 22 | \6\ | POPPET | | 1002- |
| 23 | \6\ | SCREW | | 1002- |
| 24 | \6\ | SPRING | | 1002- |
| 25 | \6\ | SPRING | | 1002- |
| 26 | \6\ | SPRING | | 1002- |
| 27 | \6\ | SEAL | | 1002- |
| 28 | \6\ | SEAL | | 1002- |
| 29 | 709-25-11390 | O-RING | | 1002- |
| 30 | \6\ | O-RING | | 1002- |
| 31 | 07000-02011 | O-RING | | 1002- |
| 32 | 01583-11408 | NUT | | 1002- |
| 723-40-85100 | VALVE ASS'Y | | 1002- |
| 33 | \6\ | SLEEVE | | 1002- |
| 34 | \6\ | VALVE | | 1002- |
| 35 | \6\ | SPRING | | 1002- |
| 36 | \6\ | SEAL | | 1002- |
| 37 | 709-25-11390 | O-RING | | 1002- |
