| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | WA0116 | O-RING (1) | ||
| 2 | BF1651 | SCREW, ADJUSTING | ||
| 3 | BF1652 | NUT, SEAL - M8 (1) | ||
| 4 | BF1653 | CAPSCREW | ||
| 5 | 30777R1 | PIN, DOWEL - M6 X 16 | ||
| NS|6 | BF1622 | NOTE: (1) INCLUDED IN BF1622 SEAL KIT. |
- Главная
- Каталог запчастей
- Самосвалы
- Afe47 bj 730e s/n a30197 a30200 (kumba)
- Hydraulic system
- Control valve assembly (bf1613)
Поиск по каталогу

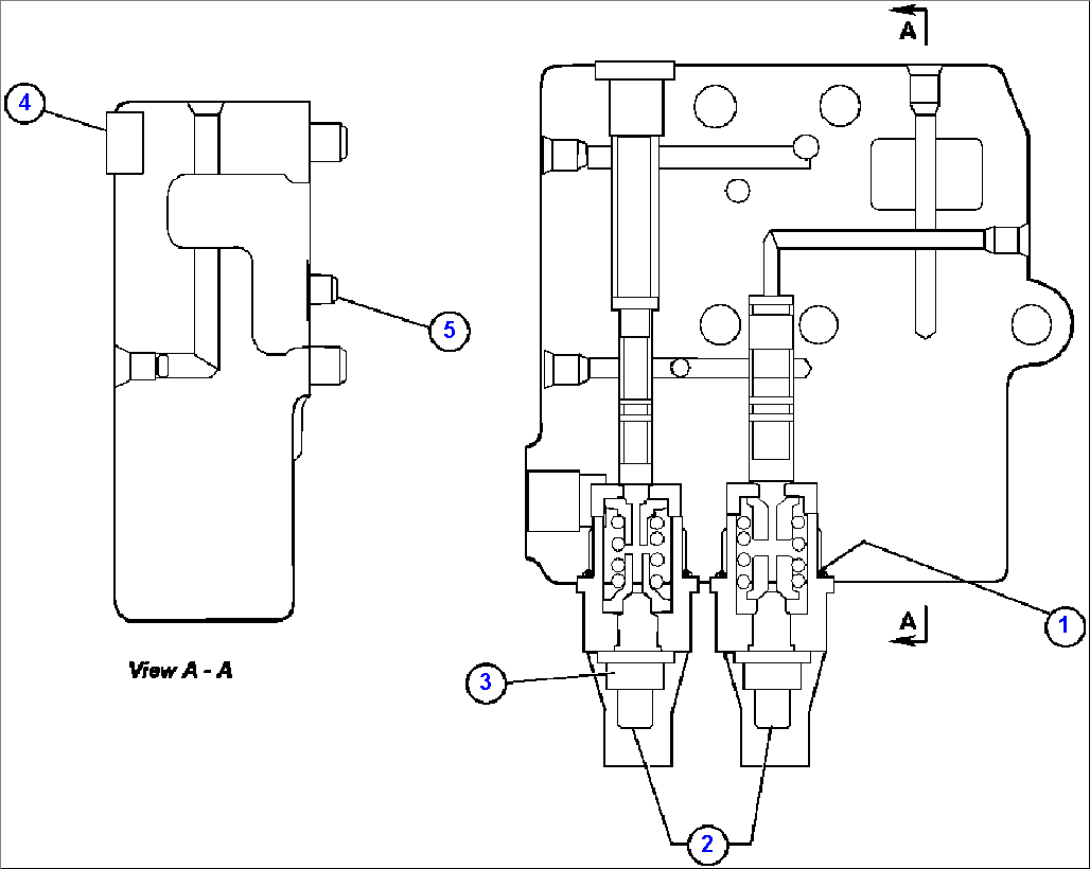

CONTROL VALVE ASSEMBLY (BF1613)
