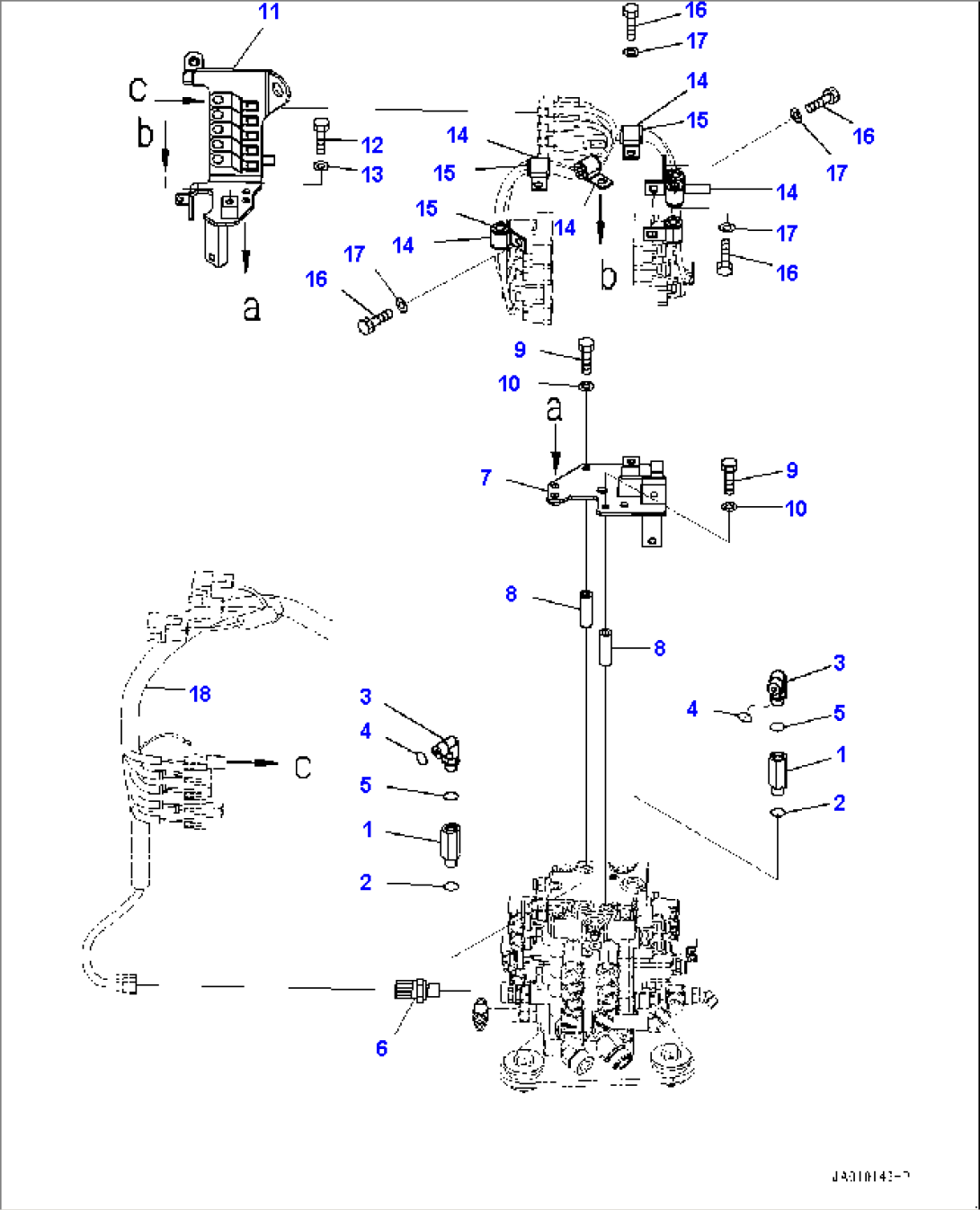

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-62-65530 | Adapter | 90001- | |
| 2 | 07002-11423 | O-ring | 90001- | |
| 3 | 02782-10311 | Elbow | 90001- | |
| 4 | 02896-11009 | O-ring | 90001- | |
| 5 | 07002-11423 | O-ring | 90001- | |
| 6 | 7861-93-1812 | Sensor, Pressure, Work Equipment Pump | 90001- | |
| 6 | 07002-61823 | O-ring | 90001- | |
| 7 | 11Y-06-41850 | Bracket | 90001- | |
| 8 | 11Y-06-41880 | Collar | 90001- | |
| 9 | 01010-80870 | Bolt | 90001- | |
| 10 | 01643-30823 | Washer | 90001- | |
| 11 | 11Y-06-41861 | Bracket | 90001- | |
| 12 | 01010-80820 | Bolt | 90001- | |
| 13 | 01643-30823 | Washer | 90001- | |
| 14 | 04434-51710 | Clip | 90001- | |
| 15 | 07095-20211 | Cushion | 90001- | |
| 16 | 01010-81020 | Bolt | 90001- | |
| 17 | 01643-31032 | Washer | 90001- | |
| 18 | (11Y-06-41371) | Wiring Harness | - |
