| Item | Part No. | Part Name | Qty | Serial No. |

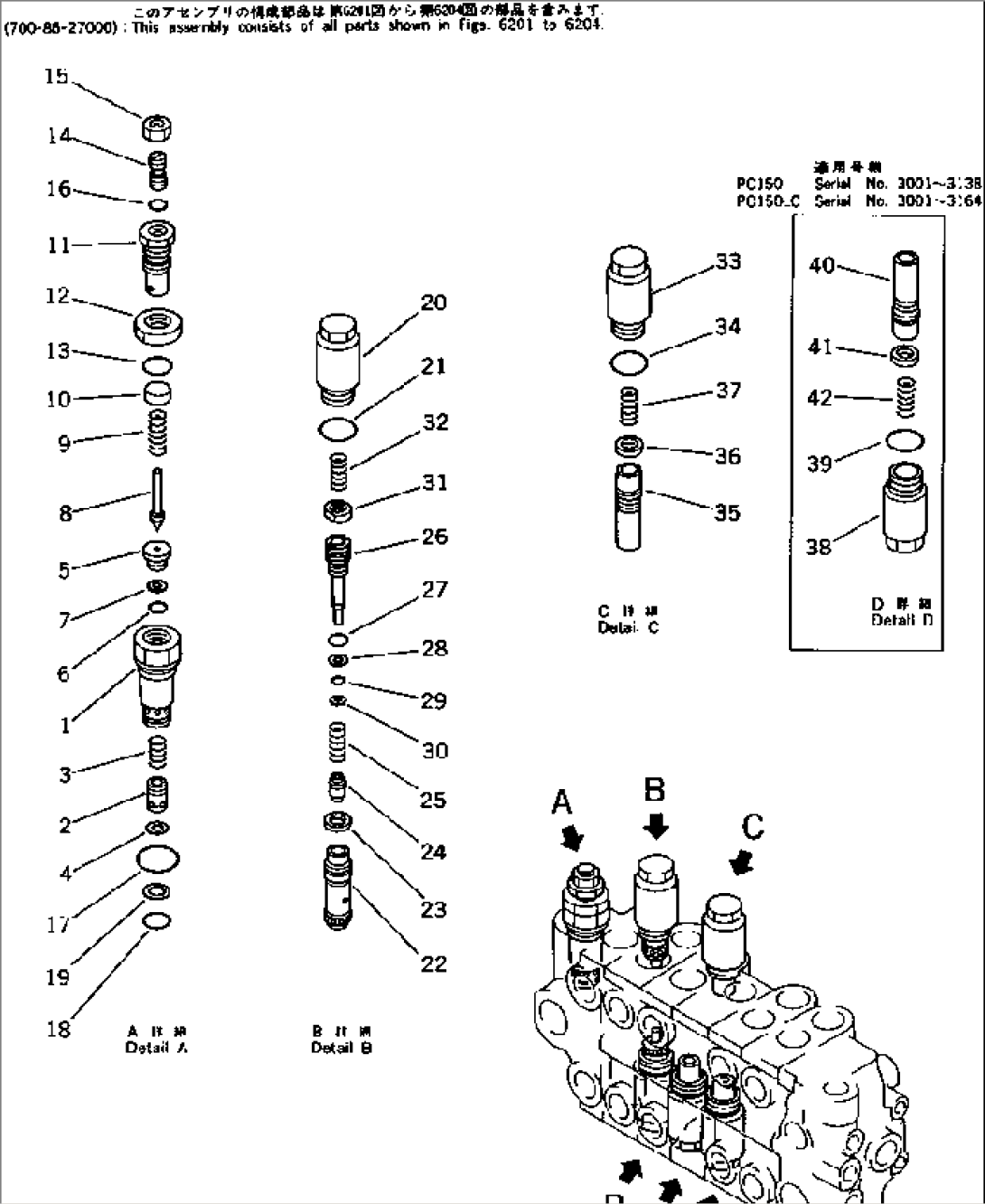

| (700-86-27006) | CONTROL VALVE ASS'Y,L.H. | 3001-@ | ||
| (\2\700-86-27000) | CONTROL VALVE ASS'Y,L.H. | (3001-3138) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 TO 6204. | ||||
| 700-87-56000 | VALVE ASS'Y,RELIEF | 3001-@ | ||
| 1 | \6\ | SLEEVE | 3001-@ | |
| 2 | \6\ | VALVE | 3001-@ | |
| 3 | 700-80-51390 | SPRING | 3001-@ | |
| 4 | 700-80-51350 | RING,SNAP | 3001-@ | |
| 5 | 700-80-51740 | SEAT | 3001-@ | |
| 6 | 07000-22012 | O-RING | 3001-@ | |
| 7 | 07001-02012 | RING,BACK-UP | 3001-@ | |
| 8 | 700-80-61190 | POPPET | 3001-@ | |
| 9 | 709-20-51231 | SPRING | 3001-@ | |
| 10 | 709-90-51260 | RETAINER | 3001-@ | |
| 11 | 700-80-51360 | HOLDER | 3001-@ | |
| 12 | 07239-12410 | NUT | 3001-@ | |
| 13 | 07002-02434 | O-RING | 3001-@ | |
| 14 | 700-80-51630 | SCREW | 3001-@ | |
| 15 | 01582-11411 | NUT | 3001-@ | |
| 16 | 07000-02011 | O-RING | 3001-@ | |
| 17 | 07002-03334 | O-RING | 3001-@ | |
| 18 | 700-13-31161 | O-RING | 3001-@ | |
| 19 | 700-80-51190 | RING,BACK-UP | 3001-@ | |
| 709-70-61201 | VALVE ASS'Y,SUCTION AND SAFETY | 3001-@ | ||
| (\2\709-70-61200) | VALVE ASS'Y,SUCTION AND SAFETY | (3001-.) | ||
| 20 | 700-80-62310 | SLEEVE | 3001-@ | |
| 21 | 07002-03034 | O-RING | 3001-@ | |
| 22 | \6\ | VALVE | 3001-@ | |
| 23 | \6\ | SEAL | 3001-@ | |
| 24 | \6\ | POPPET | 3001-@ | |
| 25 | \6\ | SPRING | 3001-@ | |
| 26 | \6\ | PISTON | 3001-@ | |
| 27 | \6\ | O-RING | 3001-@ | |
| 28 | \6\ | RING,BACK-UP | 3001-@ | |
| 29 | \6\ | O-RING | 3001-@ | |
| 30 | \6\ | SEAL | 3001-@ | |
| 31 | \6\ | NUT | .-@ | |
| 31 | \6\ | NUT | 3001-. | |
| 32 | 700-80-62250 | SPRING | 3001-@ | |
| 700-81-81000 | VALVE ASS'Y,SUCTION | 3001-@ | ||
| 33 | \6\ | SLEEVE | 3001-@ | |
| 34 | 07002-03034 | O-RING | 3001-@ | |
| 35 | \6\ | VALVE | 3001-@ | |
| 36 | \6\ | SEAL | 3001-@ | |
| 37 | 700-80-62250 | SPRING | 3001-@ | |
| 700-81-81000 | VALVE ASS'Y,SUCTION | 3001-3138 | ||
| 38 | 700-80-62310 | SLEEVE | 3001-3138 | |
| 39 | 07002-03034 | O-RING | 3001-3138 | |
| 40 | \6\ | VALVE | 3001-3138 | |
| 41 | \6\ | SEAL | 3001-3138 | |
| 42 | 700-80-62250 | SPRING | 3001-3138 |
