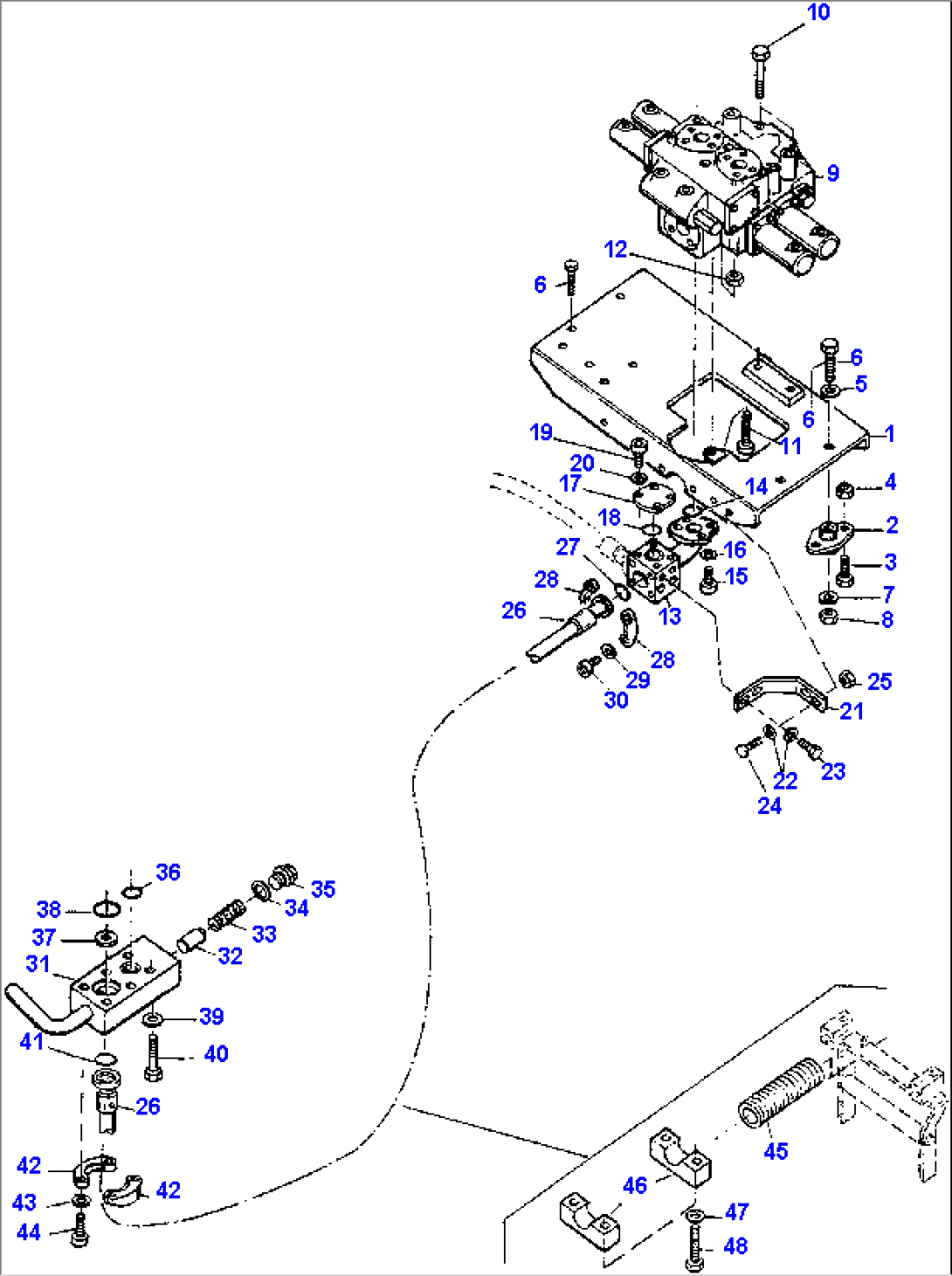

Item | Part No. | Part Name | Qty | Serial No. |
1 | 4221391M92 | CARRIER | ||
2 | 2994696M91 | BUFFER | ||
3 | 339761X1 | SCREW | ||
4 | 1444329X1 | NUT | ||
5 | 391212X1 | PLAIN WASHER | ||
6 | 391673X1 | SCREW | ||
7 | 2948080M1 | DISC | ||
8 | 1444330X1 | NUT | ||
9 | 4220825M91 | CONTROL VALVE | ||
CONTROL VALVE | ||||
10 | 391856X1 | SCREW | ||
11 | 3067374M8 | SCREW | ||
12 | 339054X1 | NUT | ||
13 | 4200540M91 | MANIFOLD | ||
14 | 1444850X1 | O-RING | ||
15 | 1443711X1 | SCREW | ||
16 | 1443792X1 | SPRING WASHER | ||
17 | 4200541M1 | BLANK COVER | ||
18 | 1444850X1 | O-RING | ||
19 | 1443711X1 | SCREW | ||
20 | 1443792X1 | SPRING WASHER | ||
21 | 4201005M1 | BRACKET | ||
22 | 1443790X1 | SPRING WASHER | ||
23 | 1444133X1 | SCREW | ||
24 | 2995660X1 | SCREW | ||
25 | 339402X1 | NUT | ||
26 | 4700148X91 | HOSE ASSEMBLY | ||
27 | 1444851X1 | O-RING | ||
28 | 3004944X1 | HALF FLANGE | ||
29 | 1440990X1 | SPRING WASHER | ||
30 | 1441701X1 | SCREW | ||
31 | 4200650M91 | VALVE CASE | ||
32 | 2947121M1 | PISTON | ||
33 | 2951897M1 | COMPRESSION SPRING | ||
34 | 1444753X1 | SEAL | ||
35 | 1443746X1 | PLUG | ||
36 | 1444847X1 | O-RING | ||
37 | 4200646M1 | ORIFICE PLATE | ||
38 | 3000161X1 | O-RING | ||
39 | 1443792X1 | SPRING WASHER | ||
40 | 1444177X1 | SCREW | ||
41 | 3000161X1 | O-RING | ||
42 | 3004945X1 | HALF FLANGE | ||
43 | 1440990X1 | SPRING WASHER | ||
44 | 1444186X1 | SCREW | ||
45 | 4700159X1 | HOSE PROTECTOR | ||
46 | 4202853M1 | CLIP | ||
47 | 1443792X1 | SPRING WASHER | ||
48 | 1444021X1 | SCREW |
