| Item | Part No. | Part Name | Qty | Serial No. |
| (23F-60-12100) | CONTROL VALVE ASS'Y | 11001- | ||

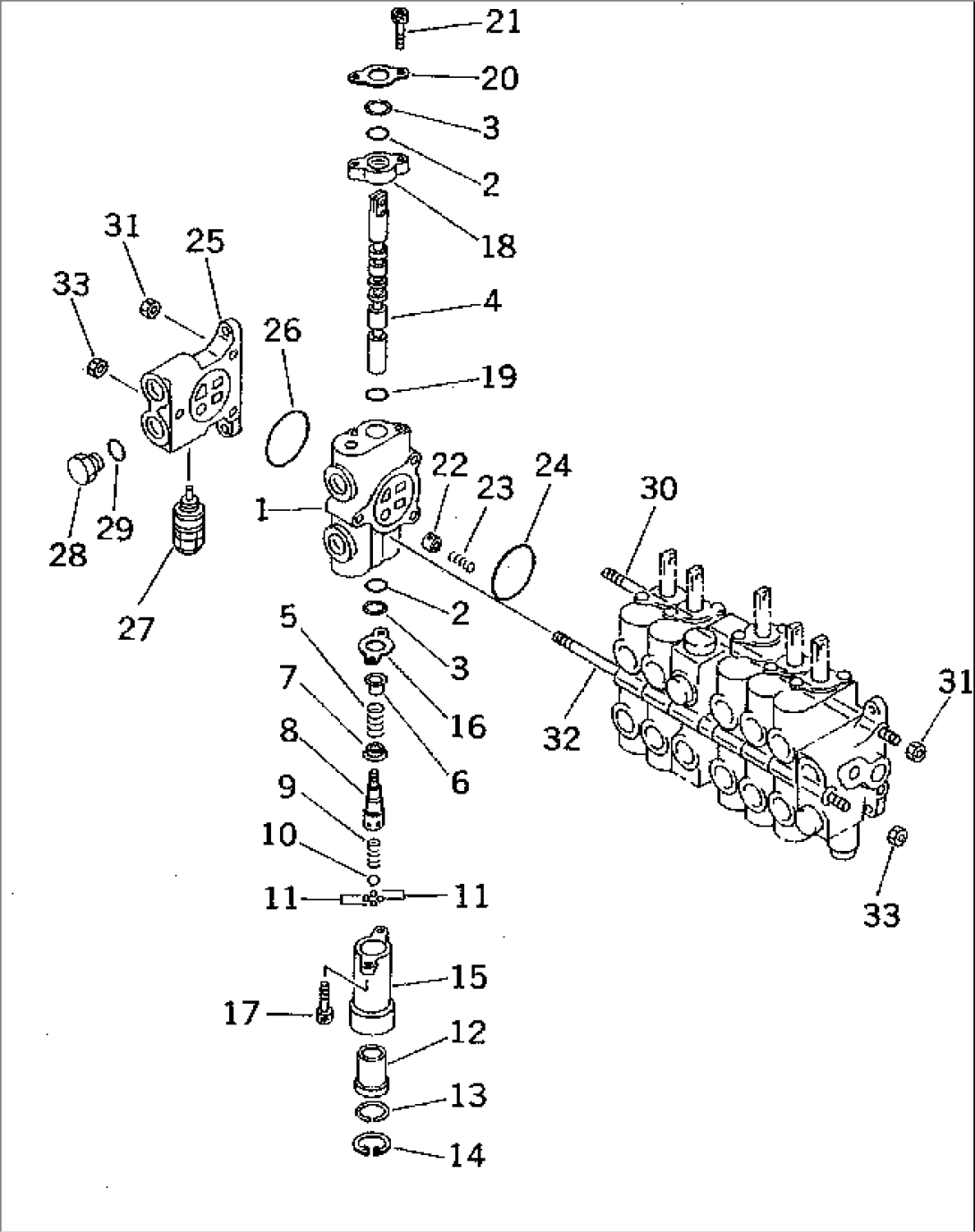

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 TO 6213. | ||||
| THE KAYABA KOGYO PART NUMBER IS THAT KB IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| KB21013-33931 | SPOOL SECTION ASS'Y | 11001- | ||
| 1 | \6\ | HOUSING | 11001- | |
| 2 | \6\ | O-RING (K23) | 11001- | |
| 3 | \6\ | WIPER (K23) | 11001- | |
| 4 | \6\ | SPOOL | 11001- | |
| 5 | KB21011-30603 | SPRING | 11001- | |
| 6 | KB21011-30707 | SEAT,SPRING | 11001- | |
| 7 | KB21011-30708 | SEAT,SPRING | 11001- | |
| 8 | KB21011-30529 | PIN | 11001- | |
| 9 | KB21011-30661 | SPRING | 11001- | |
| 10 | KB21011-33002 | BALL | 11001- | |
| 11 | KB21011-33003 | BALL | 11001- | |
| 12 | KB21011-31821 | SLEEVE | 11001- | |
| 13 | KB21011-33425 | SPACER | 11001- | |
| 14 | KB21011-33501 | RING,SNAP | 11001- | |
| 15 | KB21011-31013 | CAP | 11001- | |
| 16 | KB21011-31702 | PLATE | 11001- | |
| 17 | KB92703-06181 | BOLT | 11001- | |
| 18 | KB21011-30925 | SPACER | 11001- | |
| 19 | \6\ | O-RING (K23) | 11001- | |
| 20 | KB21011-31702 | PLATE | 11001- | |
| 21 | KB92703-06251 | BOLT | 11001- | |
| 22 | KB21011-32404 | POPPET | 11001- | |
| 23 | KB21011-30604 | SPRING | 11001- | |
| 24 | \6\ | O-RING (K23) | 11001- | |
| KB21013-36018 | INLET SECTION ASS'Y | 11001- | ||
| 25 | KB21011-36315 | HOUSING | 11001- | |
| 26 | \6\ | O-RING | 11001- | |
| 27 | KB21013-30664 | RELIEF VALVE ASS'Y | 11001- | |
| KB21003-00207 | PLUG ASS'Y | 11001- | ||
| 28 | KB21001-00504 | PLUG | 11001- | |
| 29 | \6\ | O-RING | 11001- | |
| 30 | KB21091-30712 | STUD | 11001- | |
| 31 | KB93118-08652 | NUT | 11001- | |
| 32 | KB21091-30709 | STUD | 11001- | |
| 33 | KB93128-10082 | NUT | 11001- |
