| Item | Part No. | Part Name | Qty | Serial No. |
| (723-13-11806) | CONTROL VALVE ASS'Y | BF00006- | ||
| 1 | \6\ | BODY | BF00006- | |
| 2 | 702-21-54260 | O-RING | BF00006- | |
| 3 | 01252-60640 | BOLT | BF00006- | |
| 4 | 01252-60650 | BOLT | BF00006- | |
| 5 | 723-11-29650 | SCREW | BF00006- |
- Главная
- Каталог запчастей
- Погрузчики с бортовым поворотом
- Sk815 5 s/n bf00006 up
- Work equipment control system
- Control valve (standard) (8/11)
Поиск по каталогу

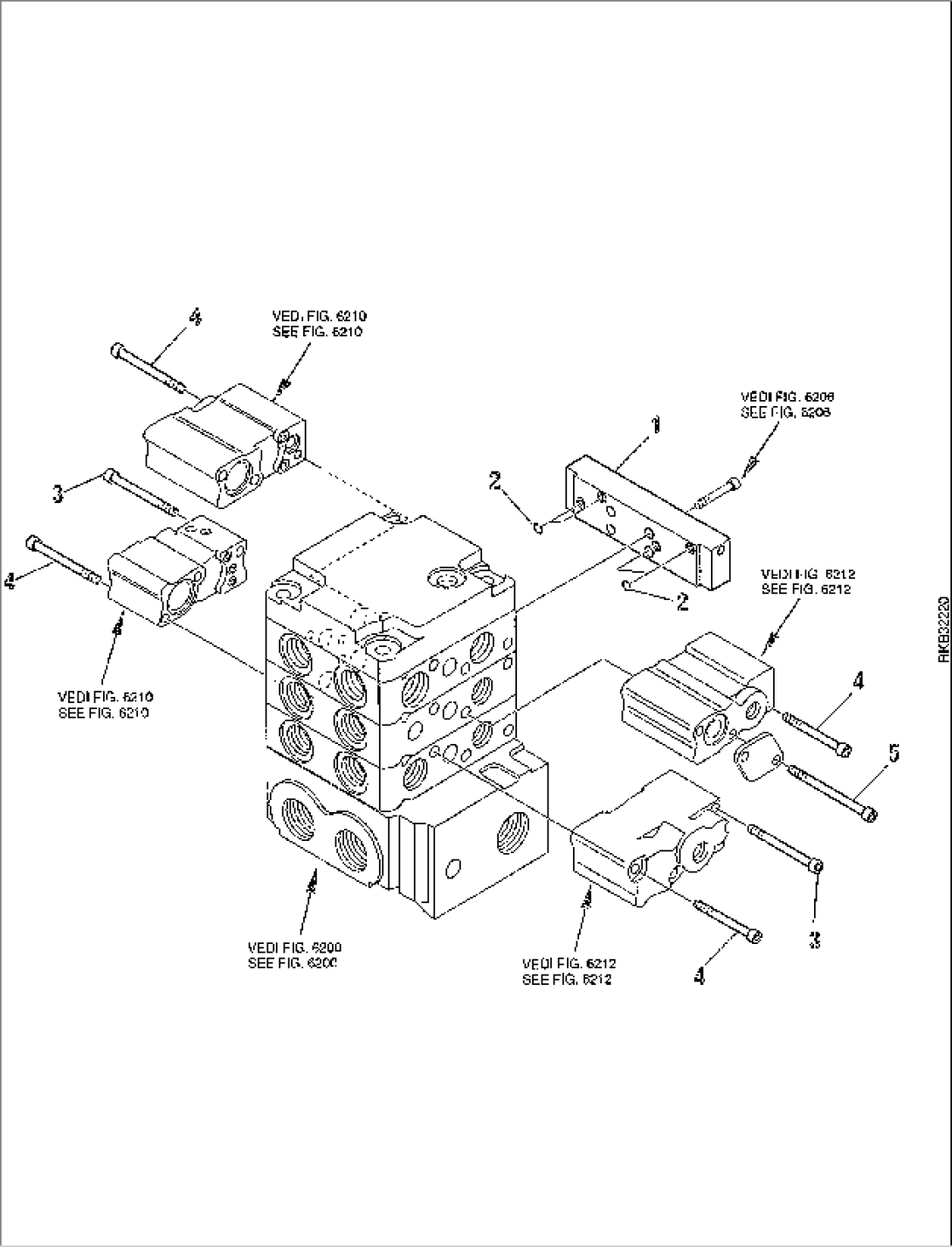

CONTROL VALVE (STANDARD) (8/11)
