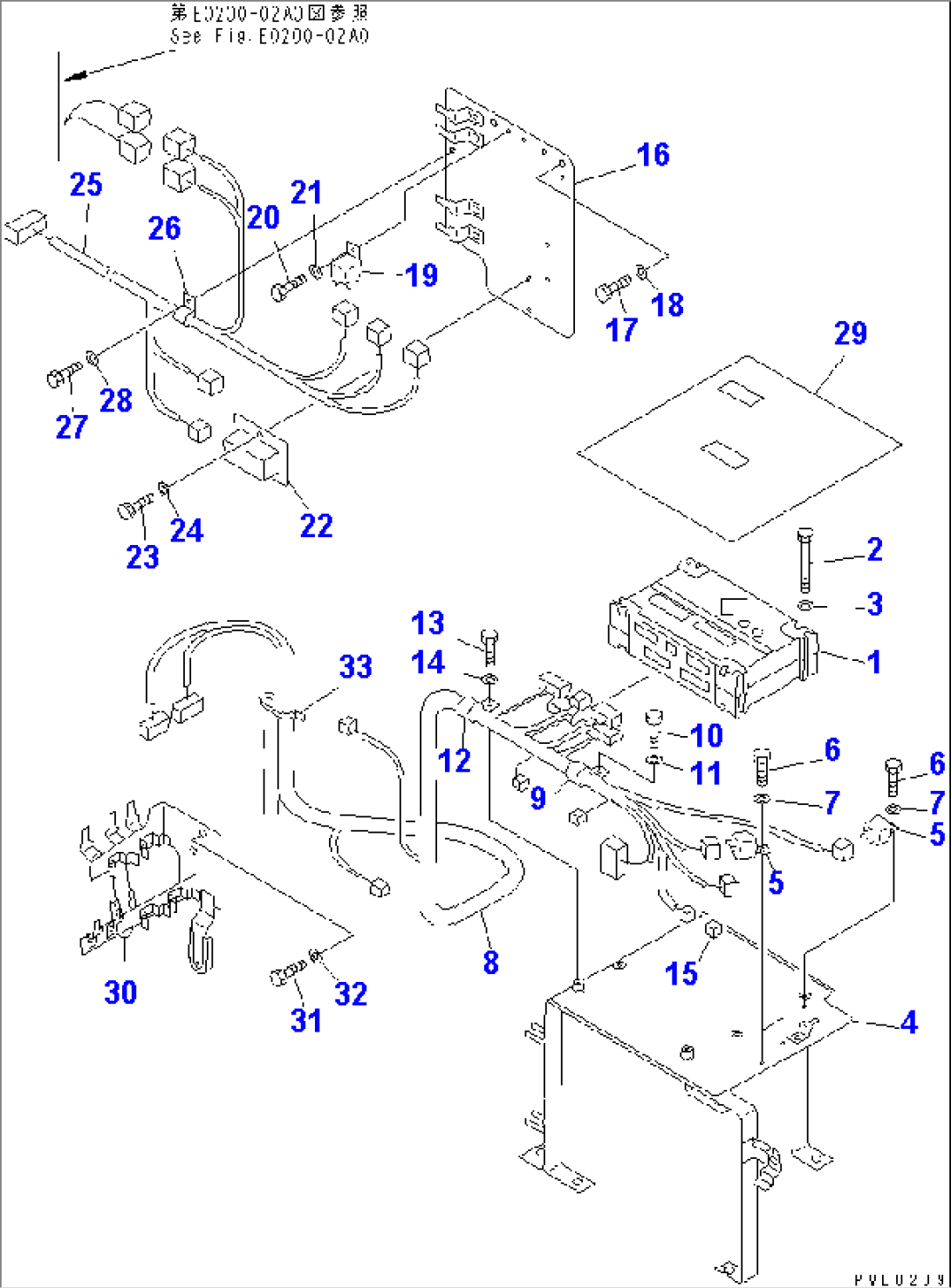

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7834-22-6005 | CONTROLLER | 10170-10210 | |
| 1 | 7834-22-6004 | CONTROLLER | 10094-10169 | |
| 1 | 7834-22-6003 | CONTROLLER,ENGINE | 10058-10093 | |
| 2 | 01010-80890 | BOLT | 10058-@ | |
| 3 | 01643-30823 | WASHER | 10058-@ | |
| 4 | 21N-06-32132 | BRACKET | 10001-10157 | |
| 5 | 569-06-61960 | RELAY | 10110-@ | |
| 5 | 569-06-61960 | RELAY | 10001-10109 | |
| 6 | 01010-80616 | BOLT | 10110-@ | |
| 6 | 01010-80616 | BOLT | 10001-10109 | |
| 7 | 01643-30623 | WASHER | 10110-@ | |
| 7 | 01643-30623 | WASHER | 10001-10109 | |
| 8 | 21N-06-32262 | WIRING HARNESS | 10110-@ | |
| 8 | 21N-06-32261 | WIRING HARNESS | 10037-10109 | |
| 9 | 04434-52512 | CLIP | 10001-@ | |
| 10 | 01010-81020 | BOLT | 10001-@ | |
| 11 | 01643-31032 | WASHER | 10001-@ | |
| 12 | 113-899-7950 | CLIP | 10001-@ | |
| 13 | 01010-81020 | BOLT | 10001-@ | |
| 14 | 01643-31032 | WASHER | 10001-@ | |
| 15 | 21N-06-32380 | SWITCH | 10037-@ | |
| 16 | 21N-06-32161 | BRACKET | 10001-@ | |
| 17 | 01010-81020 | BOLT | 10001-@ | |
| 18 | 01643-31032 | WASHER | 10001-@ | |
| 19 | 569-06-61960 | RELAY | 10001-@ | |
| 20 | 01010-80616 | BOLT | 10001-@ | |
| 21 | 01643-30623 | WASHER | 10001-@ | |
| 22 | 209-06-72180 | TIMER | 10001-@ | |
| 23 | 01010-80616 | BOLT | 10001-@ | |
| 24 | 01643-30623 | WASHER | 10001-@ | |
| 25 | 21N-06-32180 | WIRING HARNESS | 10001-@ | |
| 26 | 04434-52112 | CLIP | 10001-@ | |
| 27 | 01010-81020 | BOLT | 10001-@ | |
| 28 | 01643-31032 | WASHER | 10001-@ | |
| 29 | 21N-06-32330 | SHEET | 10001-@ | |
| 30 | 21N-06-32151 | BRACKET | 10001-@ | |
| 31 | 01010-81025 | BOLT | 10001-@ | |
| 32 | 01643-31032 | WASHER | 10001-@ | |
| 33 | 08034-00536 | BAND | 10001-@ |
