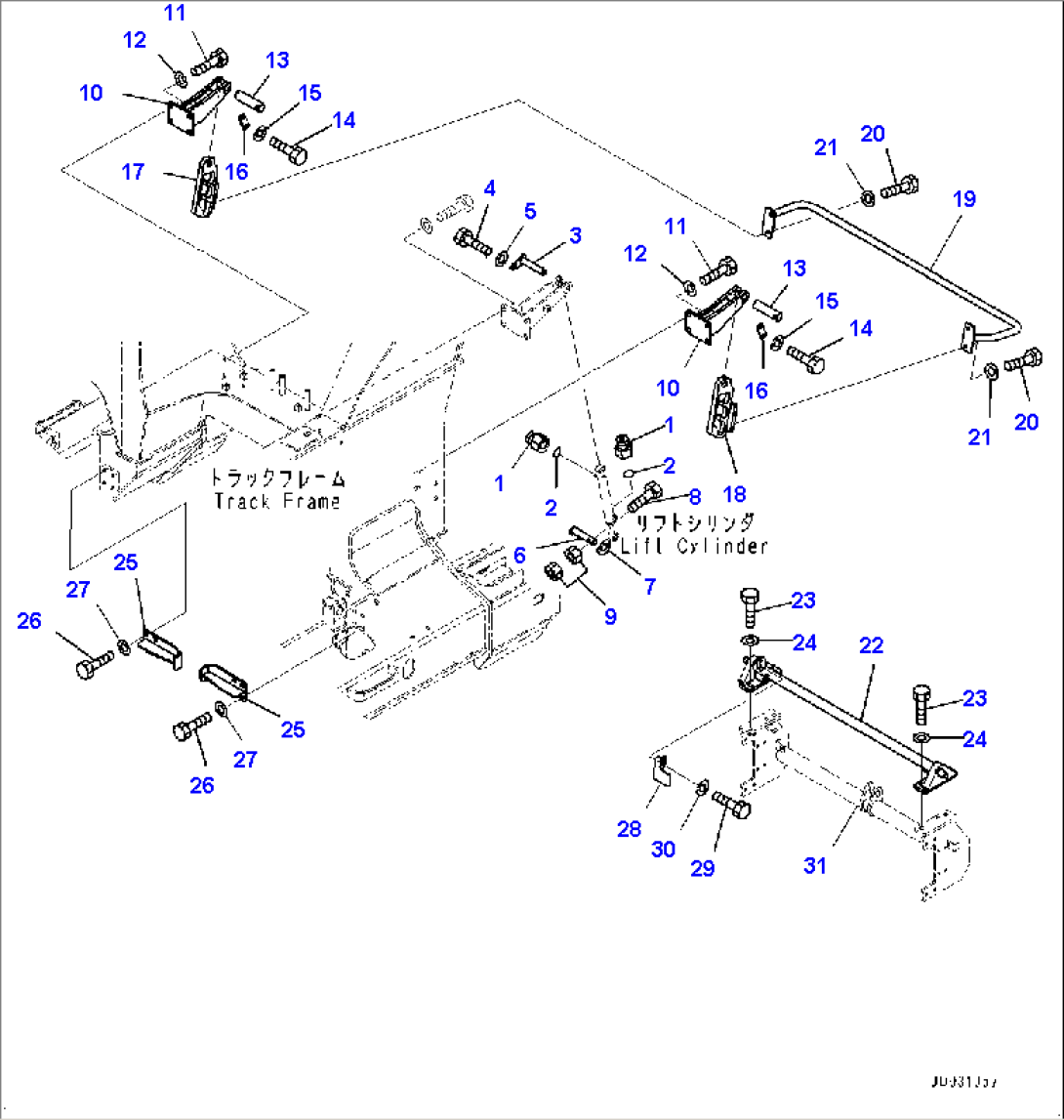

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-62-4170 | Nipple | 2616- | |
| 2 | 02896-11008 | O-ring | 2616- | |
| 3 | 21A-70-11370 | Pin | 2616- | |
| 4 | 01010-81020 | Bolt | 2616- | |
| 5 | 01643-31032 | Washer | 2616- | |
| 6 | 8240-75-2170 | Pin | 2616- | |
| 7 | 01640-22032 | Washer | 2616- | |
| 8 | 01010-81040 | Bolt | 2616- | |
| 9 | 01580-11008 | Nut | 2616- | |
| 10 | 8240-75-2132 | Bracket | 2616- | |
| 11 | 01010-81635 | Bolt | 2616- | |
| 12 | 01643-31645 | Washer | 2616- | |
| 13 | 11T-71-18350 | Pin | 2616- | |
| 14 | 01010-81020 | Bolt | 2616- | |
| 15 | 01643-31032 | Washer | 2616- | |
| 16 | 04082-00110 | Lock | 2616- | |
| 17 | 8240-75-2241 | Bracket | 2616- | |
| 18 | 8240-75-2261 | Bracket | 2616- | |
| 19 | 8240-75-2251 | Stay | 2616- | |
| 20 | 01010-81230 | Bolt | 2616- | |
| 21 | 01643-31232 | Washer | 2616- | |
| 22 | 8240-75-4111 | Bracket | 2616- | |
| 23 | 01010-81655 | Bolt | 2616- | |
| 24 | 01643-31645 | Washer | 2616- | |
| 25 | 8240-75-2730 | Bracket | 2616- | |
| 26 | 01010-81635 | Bolt | 2616- | |
| 27 | 01643-31645 | Washer | 2616- | |
| 28 | 8240-75-4120 | Bracket | 2616- | |
| 29 | 01010-81225 | Bolt | 2616- | |
| 30 | 01643-31232 | Washer | 2616- | |
| 31 | (8240-75-1491) | Bracket | - | |
| (8240-75-1491) | Bracket | - | ||
| (8240-75-1491) | Bracket | - | ||
| (8240-75-1491) | Bracket | - | ||
| (8240-75-1491) | Bracket | - | ||
| (8240-75-1491) | Bracket | - |
