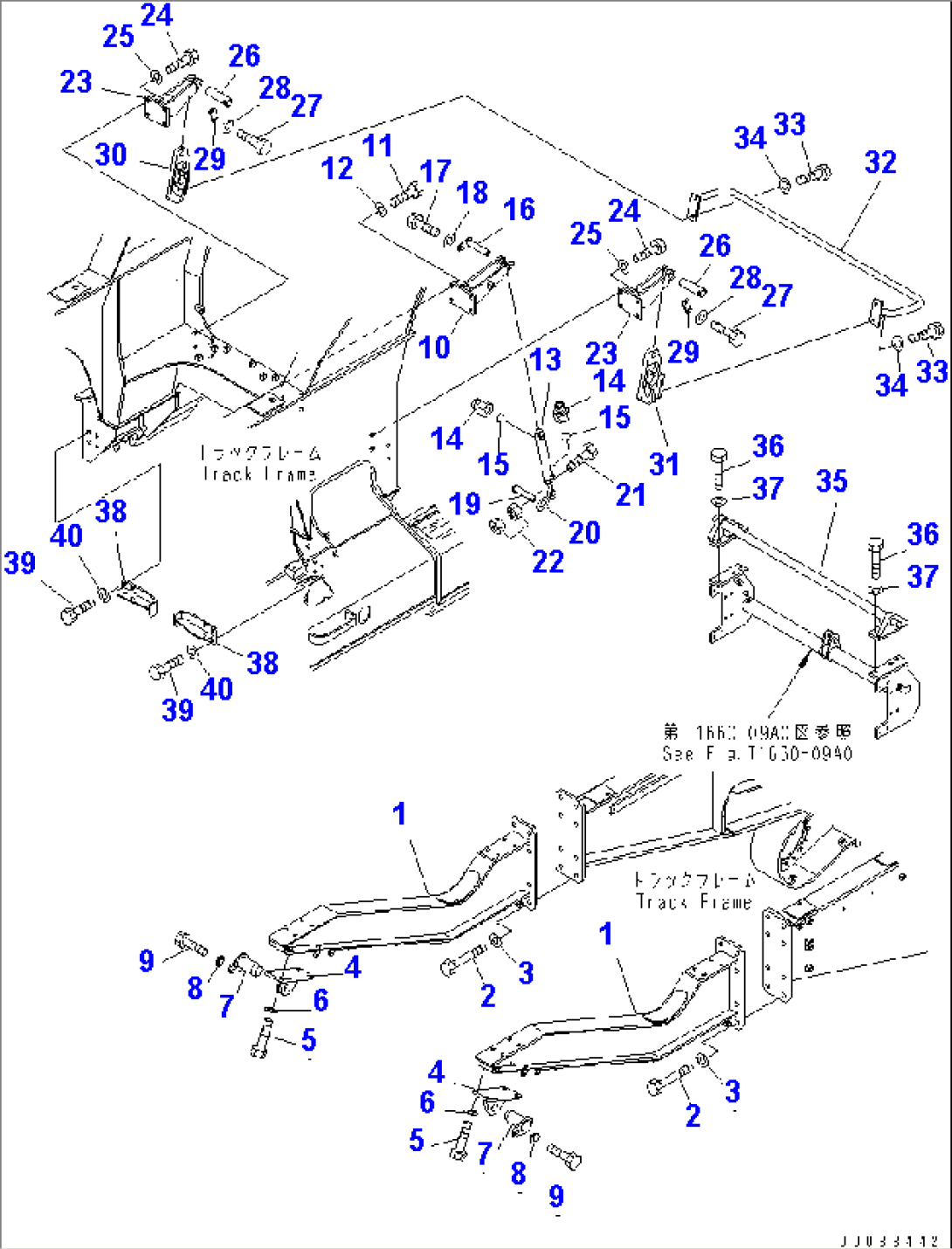

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-75-1182 | FRAME | 1079-@ | |
| 2 | 01010-82480 | BOLT | 1001-@ | |
| 3 | 01643-32460 | WASHER | 1001-@ | |
| 4 | 8240-75-1171 | BRACKET | 1001-@ | |
| 5 | 01010-81650 | BOLT | 1001-@ | |
| 6 | 01643-31645 | WASHER | 1001-@ | |
| 7 | 8248-75-3650 | PIN | 1001-@ | |
| 8 | 20S-70-31180 | SPACER | 1001-@ | |
| 9 | 01010-81225 | BOLT | 1001-@ | |
| 10 | 8240-75-2141 | BRACKET | 1001-@ | |
| 11 | 01010-81635 | BOLT | 1001-@ | |
| 12 | 01643-31645 | WASHER | 1001-@ | |
| 13 | (707-00-0Z890) | CYLINDER ASS'Y | 1001-@ | |
| 13 | (21A-63-02020) | CYLINDER ASS'Y | 1001-@ | |
| 14 | 8240-75-2121 | NIPPLE | 1001-@ | |
| 15 | 02896-11008 | O-RING | 1001-@ | |
| 16 | 21A-70-11370 | PIN | 1001-@ | |
| 17 | 01010-81020 | BOLT | 1001-@ | |
| 18 | 01643-31032 | WASHER | 1001-@ | |
| 19 | 8240-75-2170 | PIN | 1001-@ | |
| 20 | 01640-22032 | WASHER | 1001-@ | |
| 21 | 01010-81040 | BOLT | 1001-@ | |
| 22 | 01580-11008 | NUT | 1001-@ | |
| 23 | 8240-75-2131 | BRACKET | 1001-1272 | |
| 24 | 01010-81635 | BOLT | 1001-@ | |
| 25 | 01643-31645 | WASHER | 1001-@ | |
| 26 | 11T-71-18350 | PIN | 1001-@ | |
| 27 | 01010-81020 | BOLT | 1001-@ | |
| 28 | 01643-31032 | WASHER | 1001-@ | |
| 29 | 04082-00110 | LOCK | 1001-@ | |
| 30 | 8240-75-2241 | BRACKET | 1001-@ | |
| 31 | 8240-75-2261 | BRACKET | 1001-@ | |
| 32 | 8240-75-2251 | STAY | 1001-@ | |
| 33 | 01010-81230 | BOLT | 1001-@ | |
| 34 | 01643-31232 | WASHER | 1001-@ | |
| 35 | 8240-75-2280 | BRACKET | 1001-@ | |
| 36 | 01010-81655 | BOLT | 1001-@ | |
| 37 | 01643-31645 | WASHER | 1001-@ | |
| 38 | 8240-75-2730 | BRACKET | 1201-@ | |
| 39 | 01010-81635 | BOLT | 1001-@ | |
| 40 | 01643-31645 | WASHER | 1001-@ |
