| Item | Part No. | Part Name | Qty | Serial No. |
| (8248-75-4003) | CONVEYOR ASS'Y | 1201- | ||

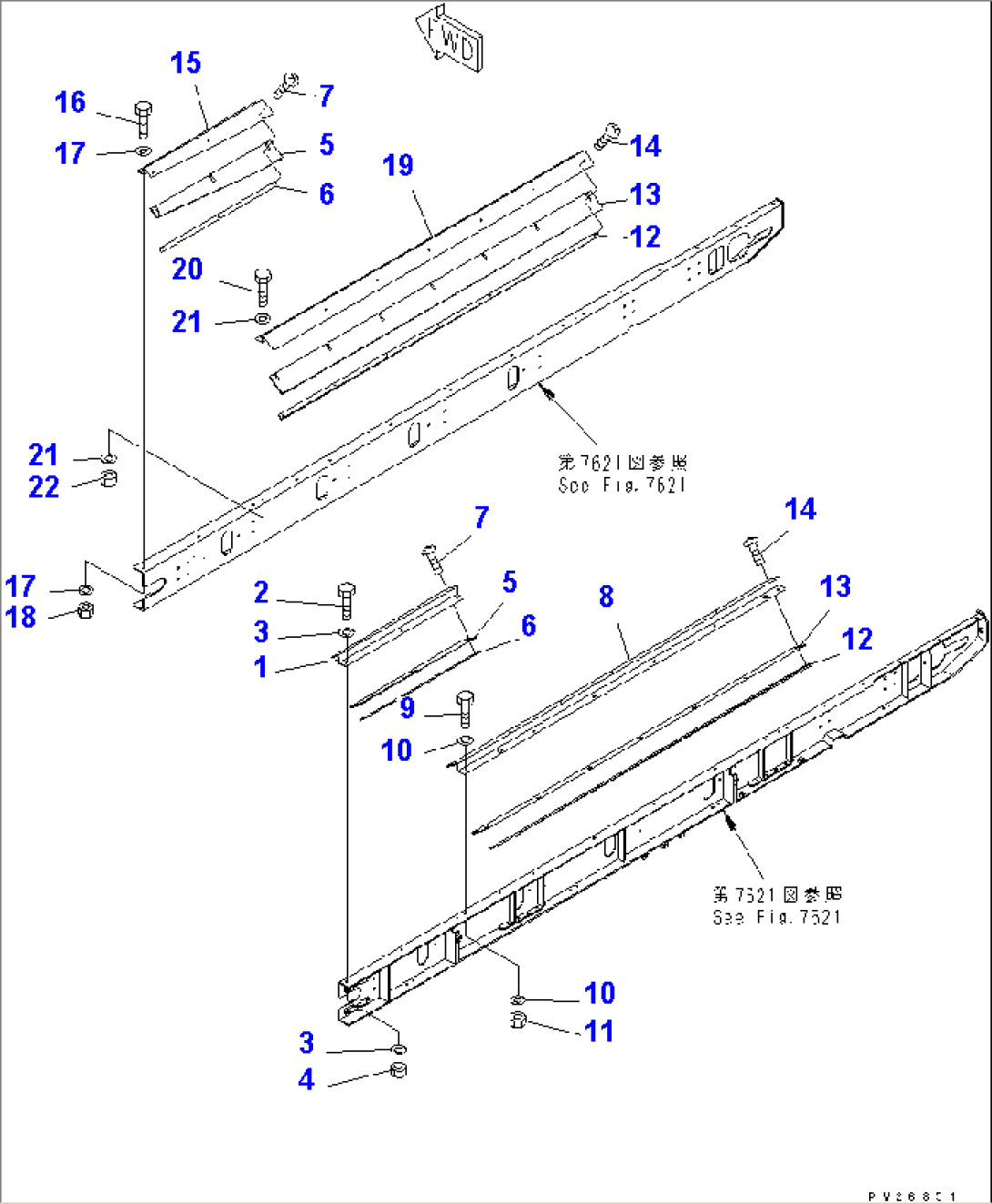

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7621 TO 7628. | ||||
| 1 | 8248-75-4580 | STAY,L.H. | 1002- | |
| 2 | 01010-81025 | BOLT | 1002- | |
| 3 | 01643-31032 | WASHER | 1002- | |
| 4 | 01580-11008 | NUT | 1002- | |
| 5 | 8248-75-4560 | RUBBER | 1002- | |
| 6 | 8248-75-4570 | PLATE | 1002- | |
| 7 | 8248-75-4490 | SCREW | 1002- | |
| 8 | 8248-75-4550 | STAY | 1002- | |
| 9 | 01010-81025 | BOLT | 1002- | |
| 10 | 01643-31032 | WASHER | 1002- | |
| 11 | 01580-11008 | NUT | 1002- | |
| 12 | 8248-75-4530 | PLATE | 1002- | |
| 13 | 8248-75-4540 | RUBBER | 1002- | |
| 14 | 8248-75-4490 | SCREW | 1002- | |
| 15 | 8248-75-4140 | STAY,L.H. | 1002- | |
| 16 | 01010-81025 | BOLT | 1002- | |
| 17 | 01643-31032 | WASHER | 1002- | |
| 18 | 01580-11008 | NUT | 1002- | |
| 19 | 8248-75-4130 | STAY | 1002- | |
| 20 | 01010-81025 | BOLT | 1002- | |
| 21 | 01643-31032 | WASHER | 1002- | |
| 22 | 01580-11008 | NUT | 1002- |
