| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8230-75-2250 | BRACKET | 1301- | |
| 2 | 01010-81230 | BOLT | 1301- | |
| 3 | 01643-31232 | WASHER | 1301- | |
| 4 | 8230-75-2240 | BRACKET | 1301- | |
| 5 | 01010-81235 | BOLT | 1301- | |
| 6 | 01643-31232 | WASHER | 1301- | |
| 7 | 8230-75-2260 | BELT | 1301- |
- Главная
- Каталог запчастей
- Мобильные дробилки и ресайклеры
- Br100jg 2 s/n 1301 up
- Work equipment
- Conveyor (inner parts) (bracket and belt)
Поиск по каталогу

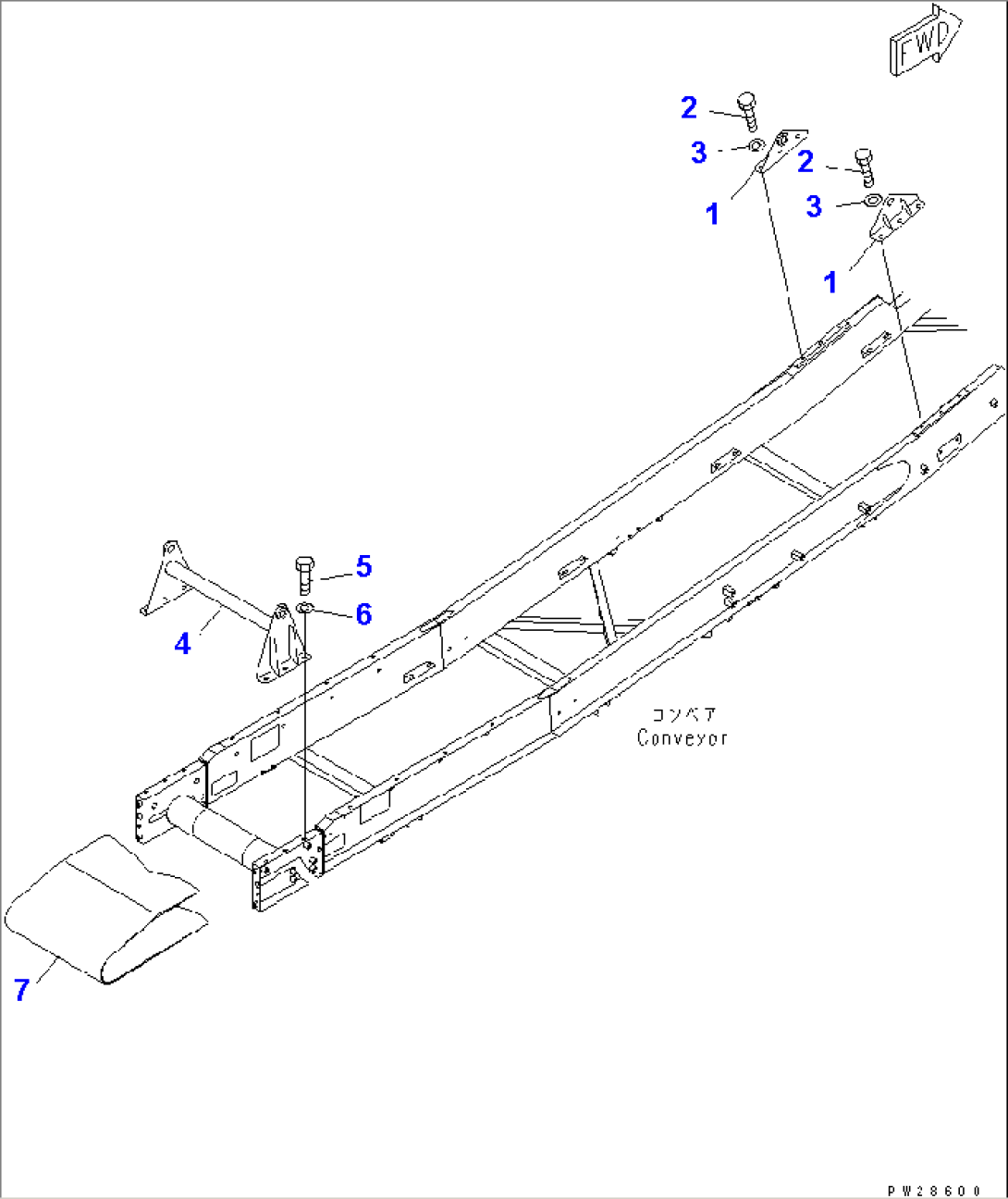

CONVEYOR (INNER PARTS) (BRACKET AND BELT)
