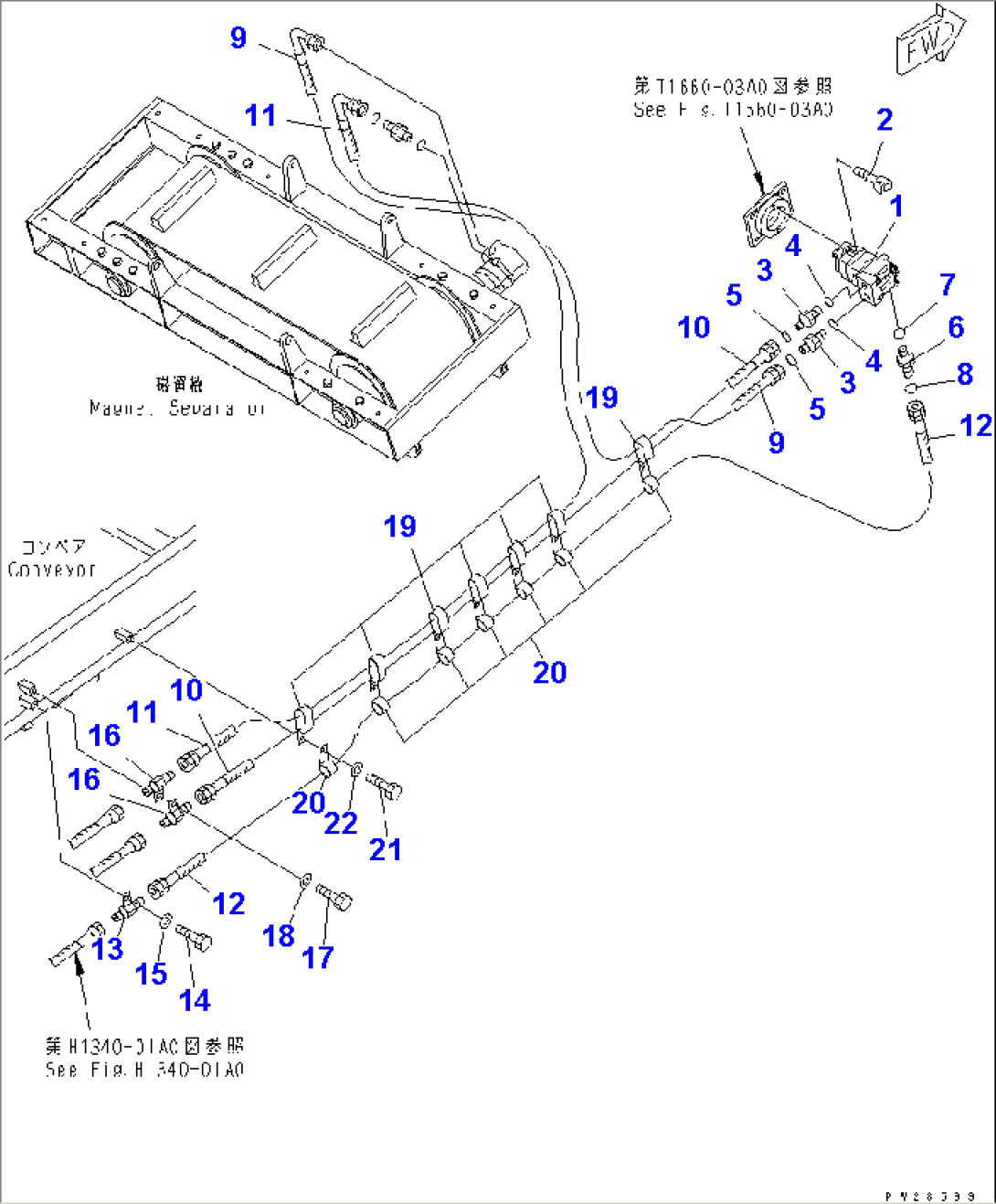

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (8230-75-2320) | MOTOR | 1301- | |
| 2 | 01252-71235 | BOLT | 1301- | |
| 3 | 8255-62-4580 | UNION | 1301- | |
| 4 | 07000-12018 | O-RING | 1301- | |
| 5 | 02896-11012 | O-RING | 1301- | |
| 6 | 11Y-62-12850 | UNION | 1301- | |
| 7 | 07000-12011 | O-RING | 1301- | |
| 8 | 02896-11009 | O-RING | 1301- | |
| 9 | 02766-00412 | HOSE | 1310- | |
| 9 | 02763-00412 | HOSE | 1301-1309 | |
| 10 | 02765-00434 | HOSE | 1301- | |
| 11 | 02766-00433 | HOSE | 1310- | |
| 11 | 02763-00433 | HOSE | 1301-1309 | |
| 12 | 02764-00337 | HOSE | 1326- | |
| 12 | 02762-00334 | HOSE | 1301-1325 | |
| 13 | 8255-62-4240 | CONNECTOR | 1301- | |
| 14 | 01010-81225 | BOLT | 1301- | |
| 15 | 01643-31232 | WASHER | 1301- | |
| 16 | 8255-62-4260 | CONNECTOR | 1301- | |
| 17 | 01010-81230 | BOLT | 1301- | |
| 18 | 01643-31232 | WASHER | 1301- | |
| 19 | 04435-52112 | CLIP | 1301- | |
| 20 | 04434-51512 | CLIP | 1301- | |
| 21 | 01010-81225 | BOLT | 1301- | |
| 22 | 01643-31232 | WASHER | 1301- |
