| Item | Part No. | Part Name | Qty | Serial No. |

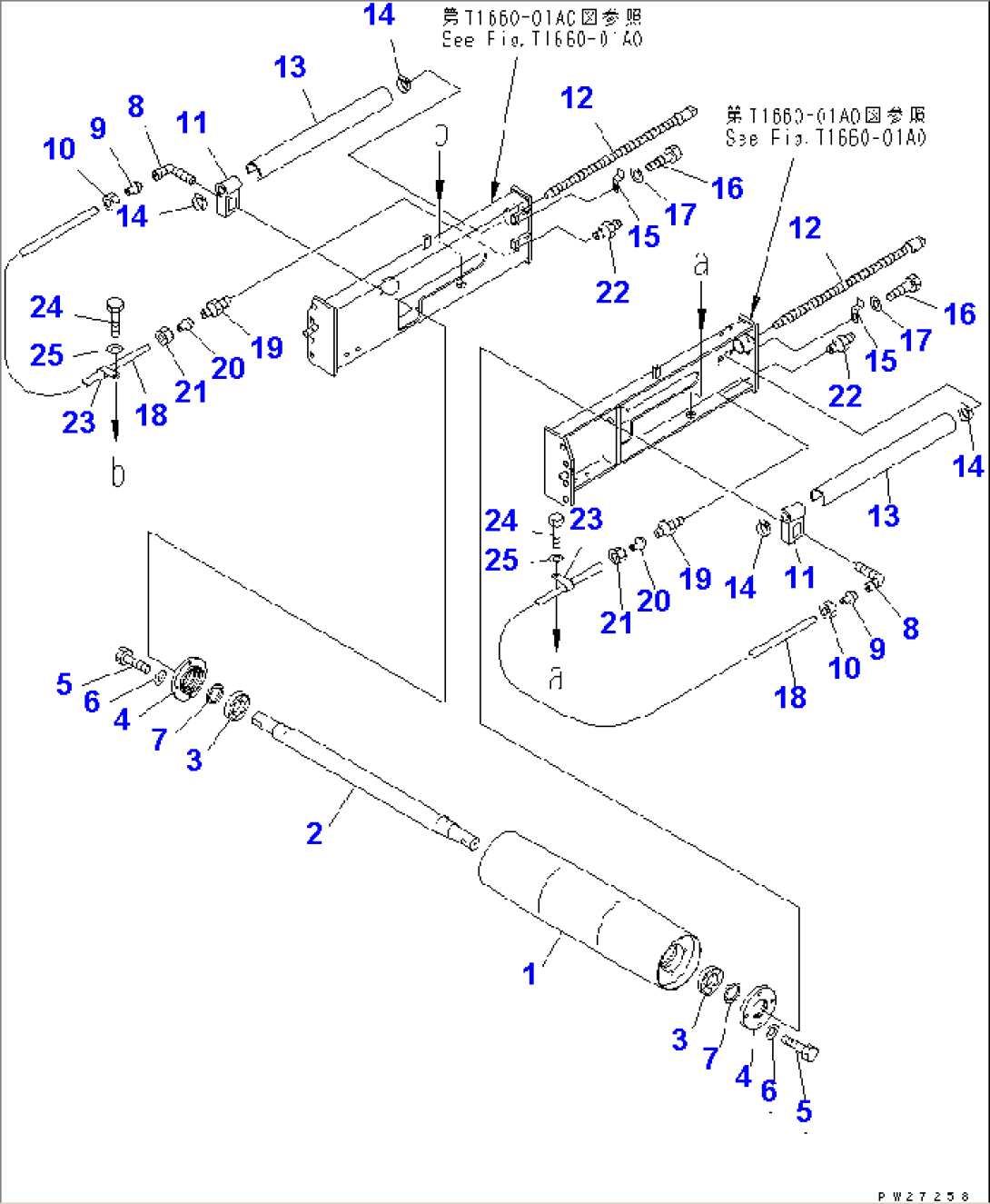

| (8287-75-1001) | CONVEYOR ASS'Y | 1101- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T1660-01A0 TO T1660-10A0. | ||||
| 8242-75-2501 | PULLEY ASS'Y | 1101- | ||
| 1 | 8242-75-2481 | PULLEY | 1101- | |
| 2 | 8242-75-2470 | SHAFT | 1101- | |
| 3 | 8242-75-2580 | BEARING | 1101- | |
| 4 | 8242-75-2490 | HOUSING | 1101- | |
| 5 | 01010-81240 | BOLT | 1101- | |
| 6 | 01643-31232 | WASHER | 1101- | |
| 7 | 8242-75-2570 | SEAL | 1101- | |
| 8 | 20R-46-11150 | ELBOW | 1101- | |
| 9 | 07831-00411 | SLEEVE | 1101- | |
| 10 | 07832-00410 | NUT | 1101- | |
| 11 | 8248-75-2910 | GUIDE | 1101- | |
| 12 | 8287-75-1530 | BOLT | 1101- | |
| 13 | 8233-75-3390 | HOSE | 1101- | |
| 14 | 07281-00809 | CLAMP | 1101- | |
| 15 | 8242-75-2960 | PLATE | 1101- | |
| 16 | 01010-81225 | BOLT | 1101- | |
| 17 | 01643-31232 | WASHER | 1101- | |
| 18 | 8242-75-2590 | TUBE | 1101- | |
| 19 | 20R-46-11160 | CONNECTOR | 1101- | |
| 20 | 07831-00411 | SLEEVE | 1101- | |
| 21 | 07832-00410 | NUT | 1101- | |
| 22 | 07020-00000 | FITTING | 1101- | |
| 23 | 04434-50610 | CLIP | 1101- | |
| 24 | 01010-81016 | BOLT | 1101- | |
| 25 | 01643-31032 | WASHER | 1101- |
