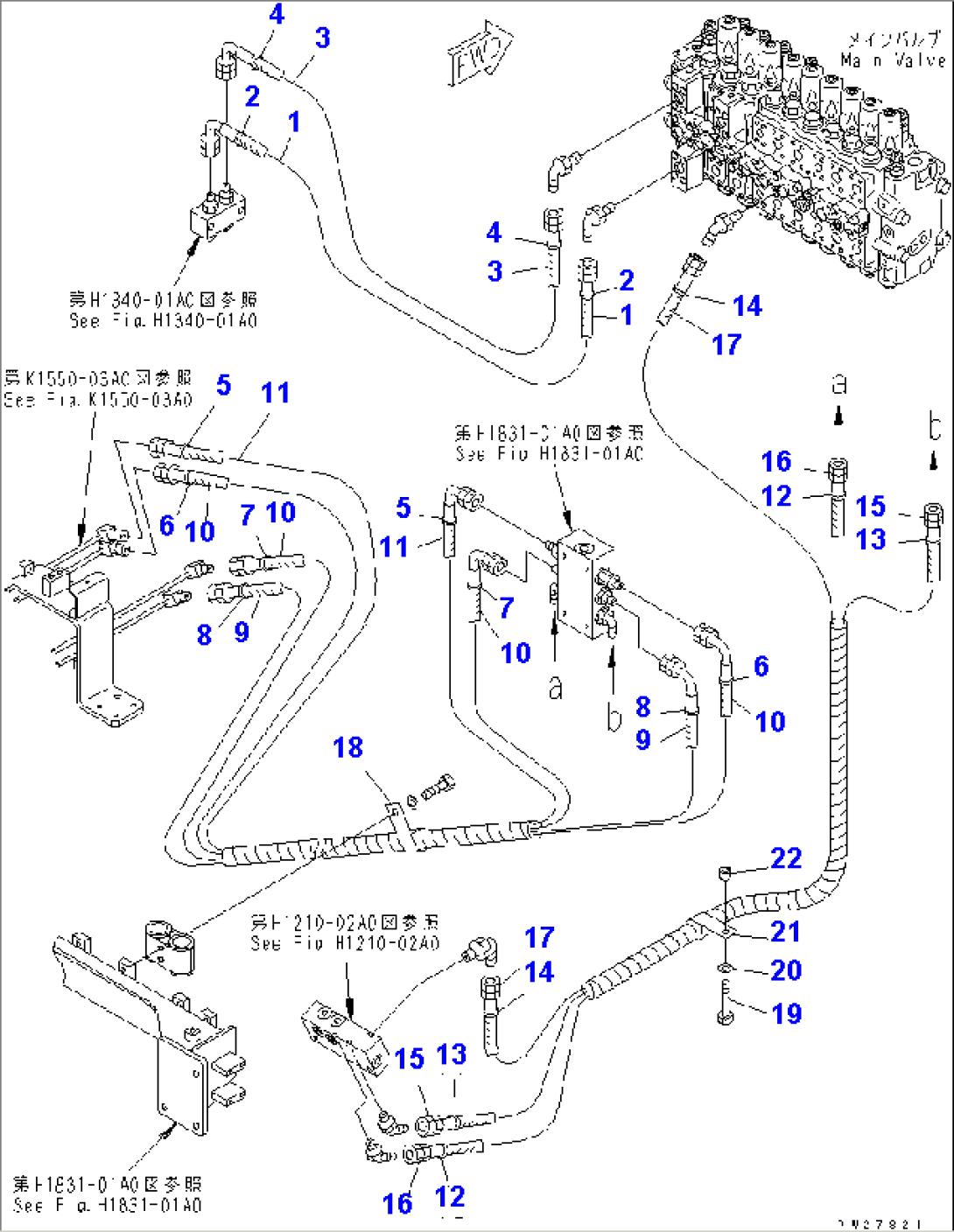

| Item | Part No. | Part Name | Qty | Serial No. |
| 8295-62-2210 | HOSE ASS'Y | 1001- | ||
| 1 | 07629-00412 | HOSE | 1001- | |
| 2 | 20Y-62-22790 | BAND¤ RED | 1001- | |
| 8295-62-2220 | HOSE ASS'Y | 1001- | ||
| 3 | 07629-00410 | HOSE | 1001- | |
| 4 | 20Y-62-22820 | BAND¤ BLUE | 1001- | |
| 8295-62-2282 | HOSE ASS'Y | 1007- | ||
| \0\8295-62-2281 | HOSE ASS'Y | .-1006 | ||
| 8295-62-2280 | HOSE ASS'Y | 1001-. | ||
| 5 | 20Y-62-22790 | BAND¤ RED | 1001- | |
| 6 | 20Y-62-22820 | BAND¤ BLUE | 1001- | |
| 7 | 20Y-62-22830 | BAND¤ WHITE,WHITE | 1001- | |
| 8 | 20Y-62-22840 | BAND¤ BLACK,BLACK | 1001- | |
| 9 | 07629-00218 | HOSE | .- | |
| 07629-00217 | HOSE | 1001-. | ||
| 10 | 07629-00220 | HOSE | .- | |
| 07629-00219 | HOSE | 1001-. | ||
| 11 | 07629-00222 | HOSE | .- | |
| 07629-00220 | HOSE | 1001-. | ||
| 8295-62-2270 | HOSE ASS'Y | 1001- | ||
| 12 | 20Y-62-22790 | BAND¤ RED | 1001- | |
| 13 | 20Y-62-22820 | BAND¤ BLUE | 1001- | |
| 14 | 20Y-62-22860 | BAND¤ BROWN,BROWN | 1001- | |
| 15 | 07627-00314 | HOSE | 1001- | |
| 16 | 07627-00315 | HOSE | 1001- | |
| 17 | 07627-00319 | HOSE | 1001- | |
| 18 | 208-06-19170 | CLIP | 1001- | |
| 19 | 01010-81220 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 208-06-19170 | CLIP | 1001- | |
| 22 | 203-937-7890 | COLLAR | 1001- |
