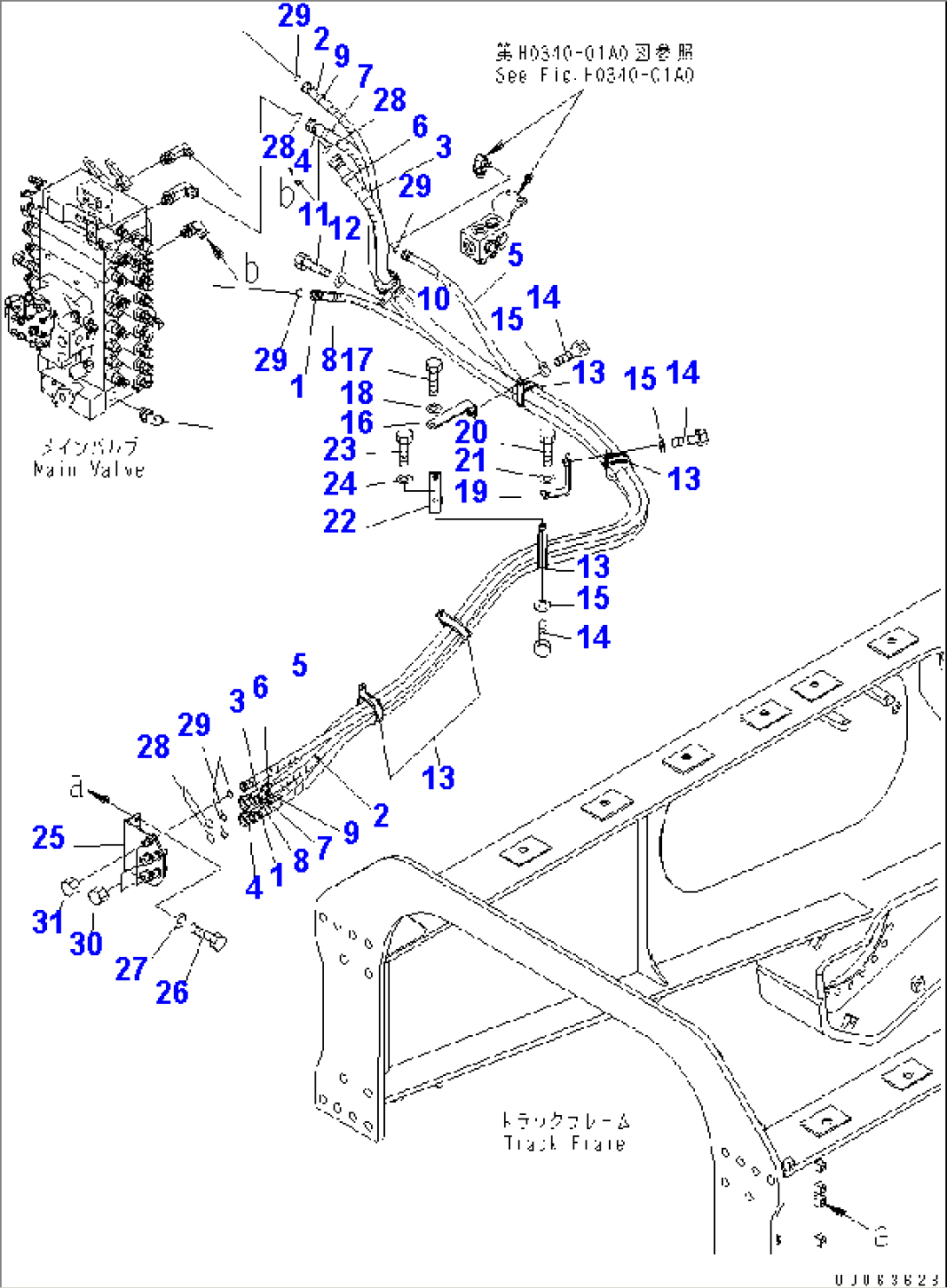

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02753-00431 | HOSE | 1001-@ | |
| 2 | 02753-00437 | HOSE | 1001-@ | |
| 3 | 02756-00634 | HOSE | 1001-@ | |
| 4 | 02756-00636 | HOSE | 1001-@ | |
| 5 | 02762-00429 | HOSE | 1001-@ | |
| 6 | 20Y-62-22790 | BAND, RED | 1001-@ | |
| 7 | 20Y-62-22820 | BAND, BLUE | 1001-@ | |
| 8 | 20Y-62-22830 | BAND, WHITE | 1001-@ | |
| 9 | 20Y-62-22840 | BAND, BLACK | 1001-@ | |
| 10 | 8234-62-2210 | CLIP | 1001-@ | |
| 11 | 01010-81225 | BOLT | 1001-@ | |
| 12 | 01643-31232 | WASHER | 1001-@ | |
| 13 | 8234-62-2240 | CLIP | 1001-1006 | |
| 14 | 01010-81225 | BOLT | 1001-1006 | |
| 15 | 01643-31232 | WASHER | 1001-1006 | |
| 16 | 154-916-3550 | BRACKET | 1001-@ | |
| 17 | 01010-81225 | BOLT | 1001-@ | |
| 18 | 01643-31232 | WASHER | 1001-@ | |
| 19 | 21M-62-18180 | BRACKET | 1001-@ | |
| 20 | 01010-81225 | BOLT | 1001-@ | |
| 21 | 01643-31232 | WASHER | 1001-@ | |
| 22 | 8234-62-2191 | BRACKET | 1001-@ | |
| 23 | 01010-81225 | BOLT | 1001-@ | |
| 24 | 01643-31232 | WASHER | 1001-@ | |
| 25 | 8234-62-1340 | JOINT | 1001-@ | |
| 26 | 01010-81225 | BOLT | 1001-@ | |
| 27 | 01643-31232 | WASHER | 1001-@ | |
| 28 | 02896-11018 | O-RING | 1001-@ | |
| 29 | 02896-11012 | O-RING | 1001-@ | |
| 30 | 02789-10628 | PLUG | 1001-@ | |
| 31 | 02789-10422 | PLUG | 1001-@ |
