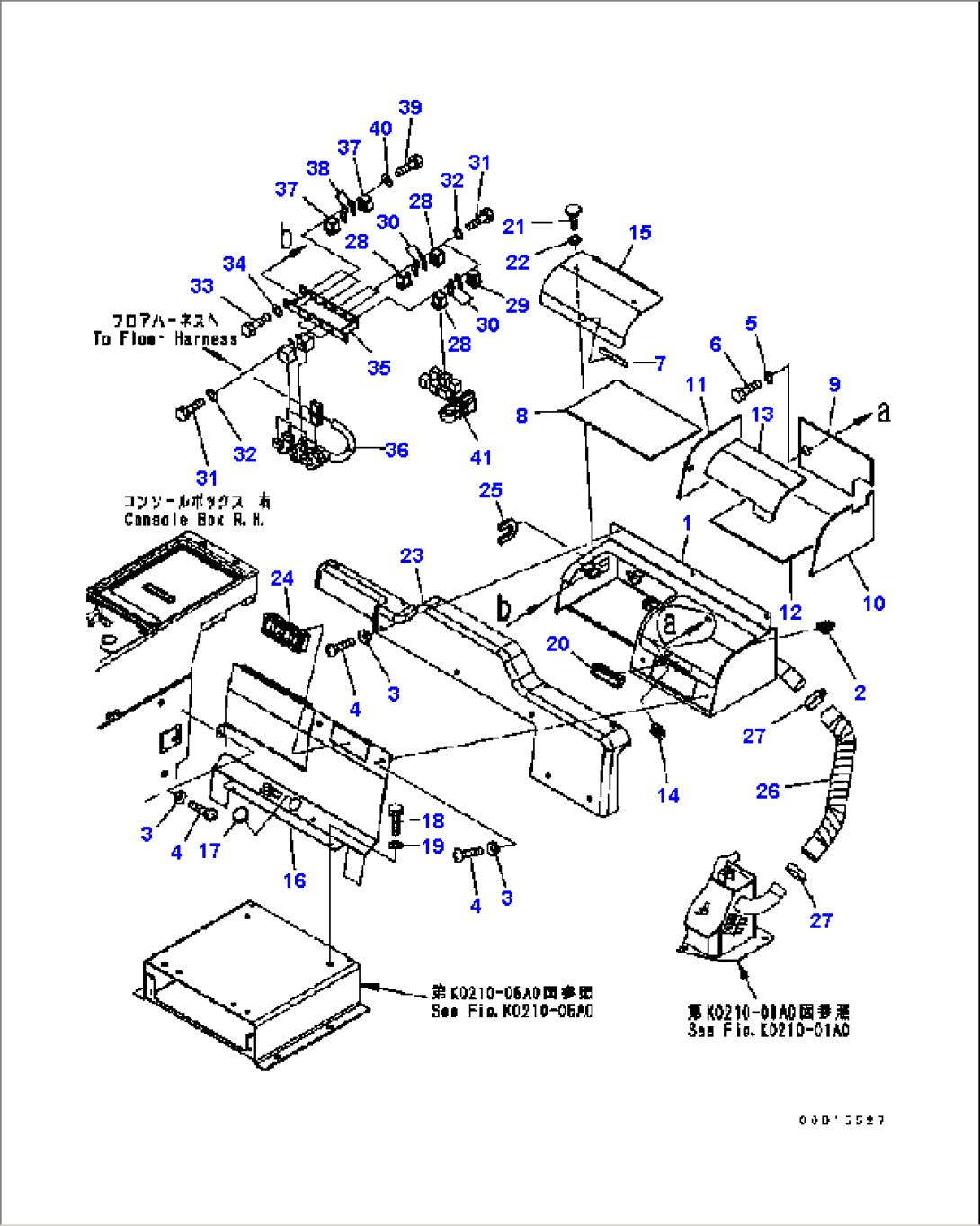

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-32323 | CONSOLE BOX | B10001- | |
| 2 | 23S-55-51530 | CLIP | B10001- | |
| 3 | 418-926-3490 | WASHER | B10001- | |
| 4 | 01225-70616 | SCREW | B10001- | |
| 5 | 01643-31032 | WASHER | B10001- | |
| 6 | 01010-81020 | BOLT | B10001- | |
| 7 | 418-54-22190 | CUSHION | B10001- | |
| 8 | 418-54-32460 | INSULATOR | B10001- | |
| 9 | 418-54-32352 | INSULATOR | B10001- | |
| 10 | 418-54-32362 | INSULATOR | B10001- | |
| 11 | 418-54-32372 | INSULATOR | B10001- | |
| 12 | 418-54-32381 | INSULATOR | B10001- | |
| 13 | 418-54-32392 | INSULATOR | B10001- | |
| 14 | 23S-55-51530 | CLIP | B10001- | |
| 15 | 418-54-32341 | COVER | B10001- | |
| 16 | 418-54-32332 | COVER | B10001- | |
| 17 | 09415-02512 | CAP | B10001- | |
| 18 | 01010-80616 | BOLT | B10001- | |
| 19 | 01643-30623 | WASHER | B10001- | |
| 20 | 421-54-22750 | HANDLE | B10001- | |
| 21 | 421-09-21260 | SCREW | B10001- | |
| 22 | 01640-20610 | WASHER | B10001- | |
| 23 | 418-54-32725 | COVER | B10001- | |
| 24 | 421-07-23870 | GRILLE | B10001- | |
| 25 | 421-54-22520 | FINISHER | B10001- | |
| 26 | 418-07-38130 | HOSE | B10001- | |
| 27 | 07281-00489 | CLAMP | B10001- | |
| 28 | 569-06-61960 | RELAY | B10001- | |
| 29 | 569-06-61970 | RELAY | B10001- | |
| 30 | 287-06-16420 | BRACKET | B10001- | |
| 31 | 01010-80616 | BOLT | B10001- | |
| 32 | 01643-30623 | WASHER | B10001- | |
| 33 | 01010-80614 | BOLT | B10001- | |
| 34 | 01643-30623 | WASHER | B10001- | |
| 35 | 418-54-32931 | BRACKET | B10001- | |
| 36 | 418-S61-3114 | WIRING HARNESS | B10001- | |
| 37 | 569-06-61960 | RELAY | B10001- | |
| 38 | 287-06-16420 | BRACKET | B10001- | |
| 39 | 01010-80616 | BOLT | B10001- | |
| 40 | 01643-30623 | WASHER | B10001- | |
| 41 | 418-06-32710 | WIRING HARNESS | B10001- |
