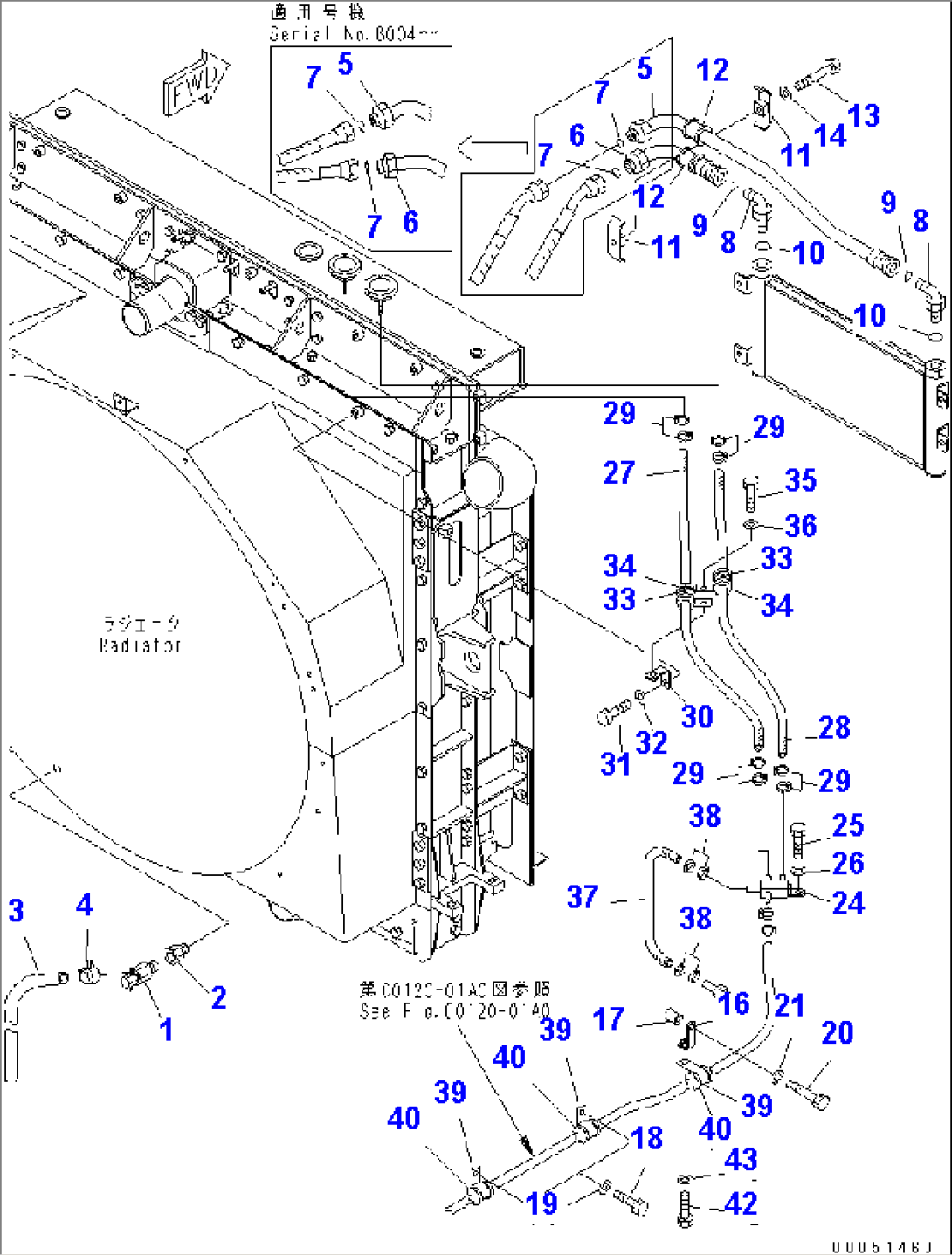

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-13241 | VALVE | 8001- | |
| 2 | 6162-13-8990 | JOINT | 8001- | |
| 3 | 07270-01535 | TUBE | 8001- | |
| 4 | 07285-00155 | CLIP | 8001- | |
| 5 | 569-61-88131 | TUBE | 8004- | |
| 5 | 569-61-88130 | TUBE | 8001-8003 | |
| 6 | 569-61-88141 | TUBE | 8004- | |
| 6 | 569-61-88140 | TUBE | 8001-8003 | |
| 7 | 02896-11018 | O-RING | 8001- | |
| 8 | 02782-10628 | ELBOW | 8001- | |
| 9 | 02896-11018 | O-RING | 8001- | |
| 10 | 07002-12434 | O-RING | 8001- | |
| 11 | 07094-30518 | CLAMP | 8001- | |
| 12 | 07095-00525 | CUSHION | 8001- | |
| 13 | 01010-81265 | BOLT | 8001- | |
| 14 | 01643-31232 | WASHER | 8001- | |
| 16 | 417-S62-2460 | PLATE | 8001- | |
| 17 | 419-15-17541 | SPACER | 8001- | |
| 18 | 01010-81016 | BOLT | 8001- | |
| 19 | 01643-31032 | WASHER | 8001- | |
| 20 | 01010-81050 | BOLT | 8001- | |
| 21 | 01643-31032 | WASHER | 8001- | |
| 24 | 569-03-82381 | BRACKET | 8002- | |
| 24 | \0\569-03-82380 | BRACKET | 8001-8001 | |
| 25 | 01010-81016 | BOLT | 8001- | |
| 26 | 01643-31032 | WASHER | 8001- | |
| 27 | 569-03-88581 | HOSE | 8002- | |
| 27 | \0\569-03-88580 | HOSE | 8001-8001 | |
| 28 | 569-03-88591 | HOSE | 8002- | |
| 28 | \0\569-03-88590 | HOSE | 8001-8001 | |
| 29 | 07281-10167 | CLAMP | 8001- | |
| 30 | 427-43-11370 | BRACKET | 8001- | |
| 31 | 01010-81016 | BOLT | 8001- | |
| 32 | 01643-31032 | WASHER | 8001- | |
| 33 | 04434-51910 | CLIP | 8001- | |
| 34 | 07095-20213 | CUSHION | 8001- | |
| 35 | 01010-81020 | BOLT | 8001- | |
| 36 | 01643-31032 | WASHER | 8001- | |
| 37 | 09483-40306 | HOSE | 8001- | |
| 38 | 07281-10197 | CLAMP | 8001- | |
| 39 | 04434-52310 | CLIP | 8001- | |
| 40 | 07095-20314 | CUSHION | 8001- | |
| 42 | 01010-81016 | BOLT | 8001- | |
| 43 | 01643-31032 | WASHER | 8001- |
