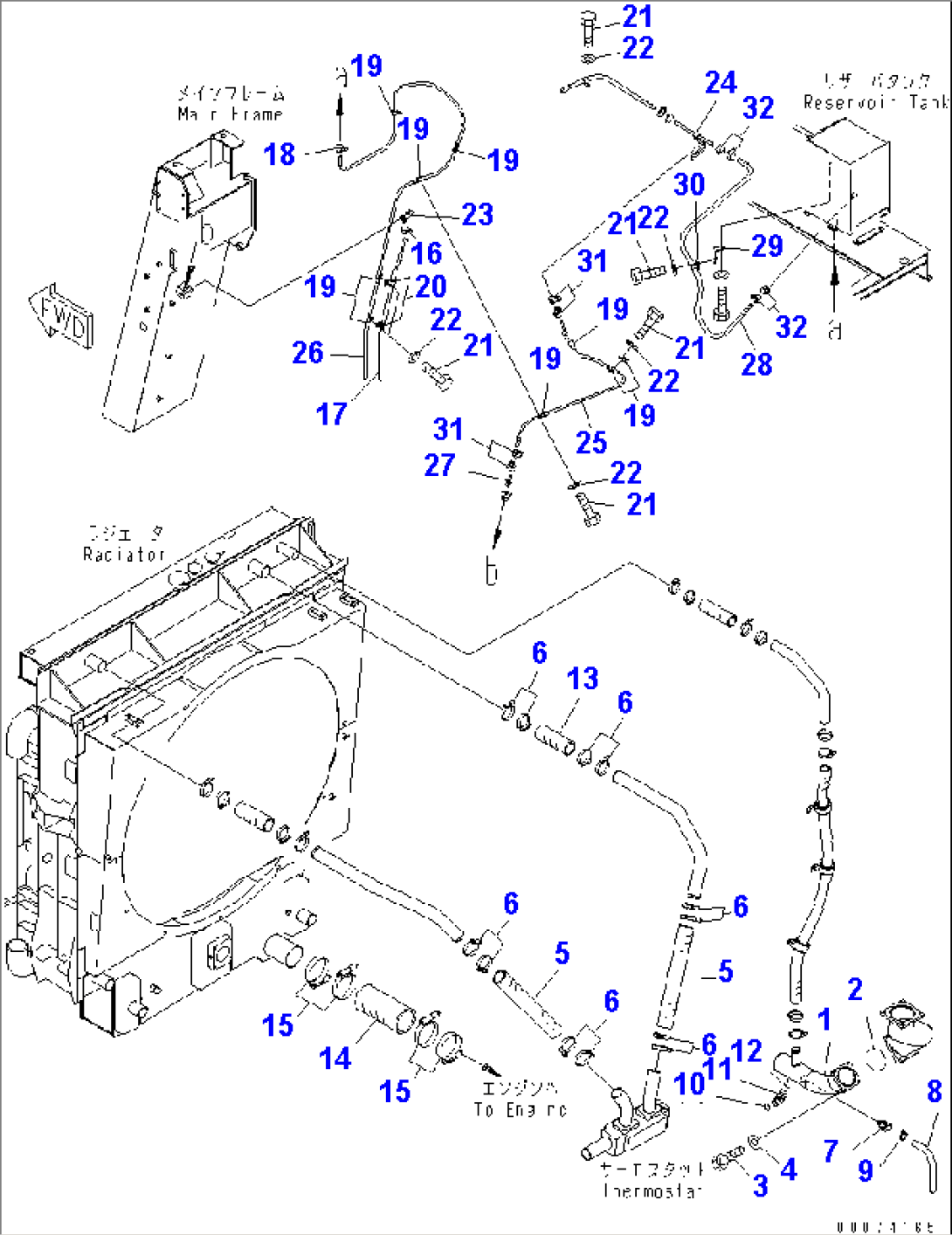

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-98-85930 | TUBE | 7169- | |
| 2 | 07000-12120 | O-RING | 7169- | |
| 3 | 01010-81240 | BOLT | 7169- | |
| 4 | 01643-31232 | WASHER | 7169- | |
| 5 | 561-03-62170 | HOSE | 7169- | |
| 6 | 07299-00080 | CLAMP | 7169- | |
| 7 | 195-03-13540 | VALVE | 7169- | |
| 8 | 561-03-62660 | TUBE | 7169- | |
| 9 | 07280-03223 | CLAMP | 7169- | |
| 10 | 07002-12434 | O-RING | 7169- | |
| 11 | 02783-10628 | ELBOW | 7169- | |
| 12 | 02896-11018 | O-RING | 7169- | |
| 13 | 561-03-62230 | HOSE | 7169- | |
| 14 | 562-03-12490 | HOSE | 7169- | |
| 15 | 07299-00130 | CLAMP | 7169- | |
| 16 | 07281-10197 | CLAMP | 7169- | |
| 17 | 07270-41511 | TUBE | 7169- | |
| 18 | 07281-10197 | CLAMP | 7169- | |
| 19 | 04434-51410 | CLIP | 7169- | |
| 20 | 04434-51810 | CLIP | 7169- | |
| 21 | 01010-81020 | BOLT | 7169- | |
| 22 | 01643-31032 | WASHER | 7169- | |
| 23 | 195-03-13241 | VALVE | 7169- | |
| 24 | 561-03-81340 | TUBE | 7169- | |
| 25 | 561-03-82480 | HOSE | 7169- | |
| 26 | 09483-40332 | HOSE | 7169- | |
| 27 | 561-03-81360 | NIPPLE | 7169- | |
| 28 | 09483-40408 | HOSE | 7169- | |
| 29 | 431-03-11150 | BRACKET | 7169- | |
| 30 | 04434-52110 | CLIP | 7169- | |
| 31 | 07281-10167 | CLAMP | 7169- | |
| 32 | 07281-00229 | CLAMP | 7169- |
