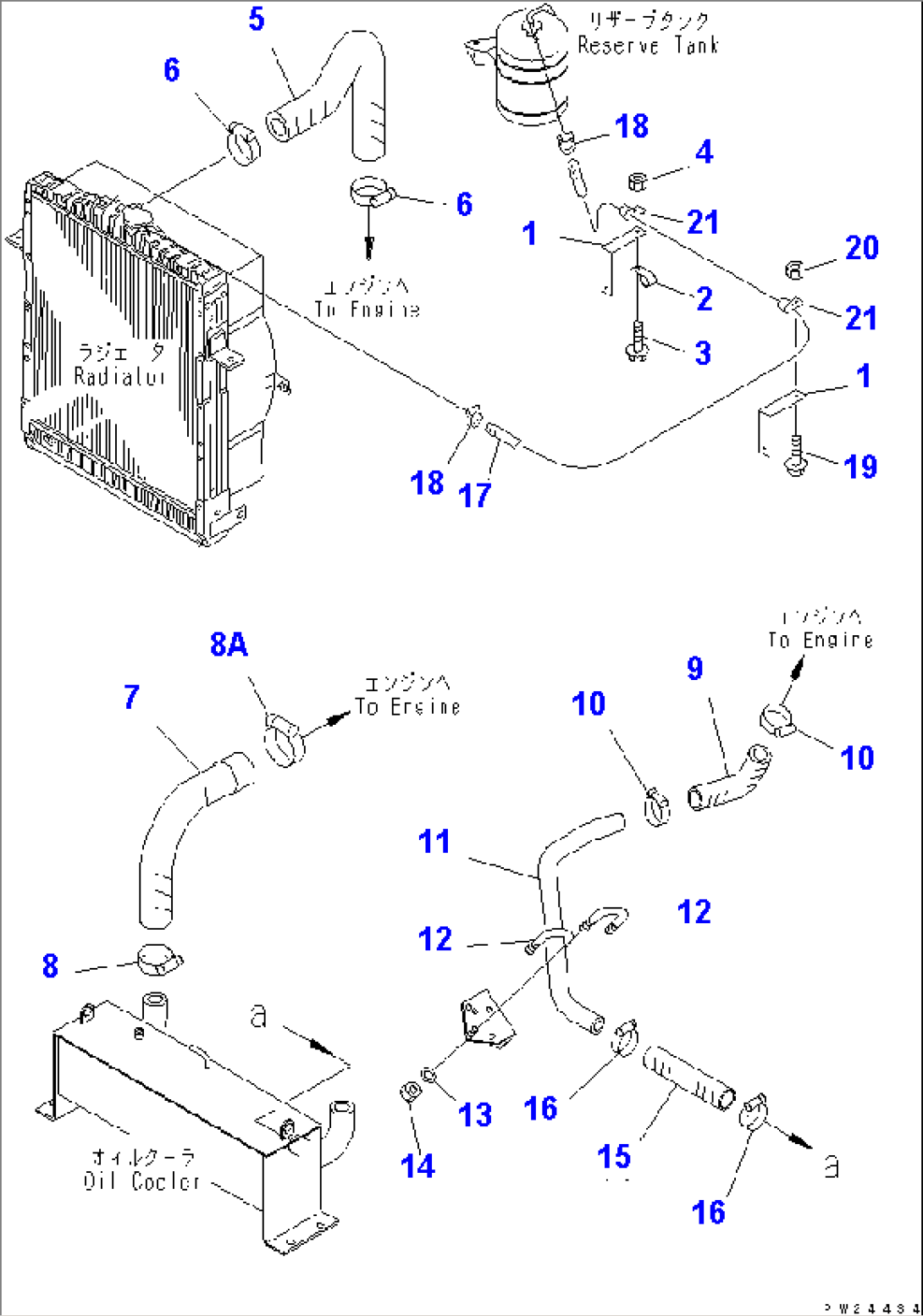

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-07-41410 | BRACKET | 1001-1600 | |
| 2 | 08036-01014 | CLIP | 1001-1600 | |
| 3 | 01435-01016 | BOLT | 1001-@ | |
| 4 | 01580-11008 | NUT | 1001-@ | |
| 5 | 567-03-71520 | HOSE | 1001-1600 | |
| 6 | 07299-00080 | CLAMP | 1001-@ | |
| 6 | (\2\07289-00080) | CLAMP | (1001-1600) | |
| 7 | 567-03-71540 | HOSE | 1001-1600 | |
| 8 | 07299-00080 | CLAMP | 1001-@ | |
| 8 | (\2\07289-00080) | CLAMP | (1001-1600) | |
| 8A | 07299-00095 | CLAMP | 1001-@ | |
| 8A | (\2\07289-00095) | CLAMP | (1001-1600) | |
| 9 | 567-03-41550 | HOSE | 1001-@ | |
| 10 | 07299-00055 | CLAMP | 1001-@ | |
| 10 | (\2\07289-00055) | CLAMP,HOSE | (1001-1600) | |
| 11 | 567-03-71561 | TUBE | 1001-1600 | |
| 12 | 07283-24346 | CLIP | 1001-@ | |
| 13 | 01643-31032 | WASHER | 1001-@ | |
| 14 | 01599-01011 | NUT | 1001-1600 | |
| 15 | 07260-24128 | HOSE | 1001-@ | |
| 16 | 07299-00055 | CLAMP | 1001-@ | |
| 16 | (\2\07289-00055) | CLAMP,HOSE | (1001-1600) | |
| 17 | 567-03-41581 | HOSE | 1001-1600 | |
| 18 | 07281-00167 | CLAMP | 1001-@ | |
| 19 | 01435-01016 | BOLT | 1001-1600 | |
| 20 | 01580-11008 | NUT | 1001-1600 | |
| 21 | 08036-01414 | CLIP | 1001-1600 |
