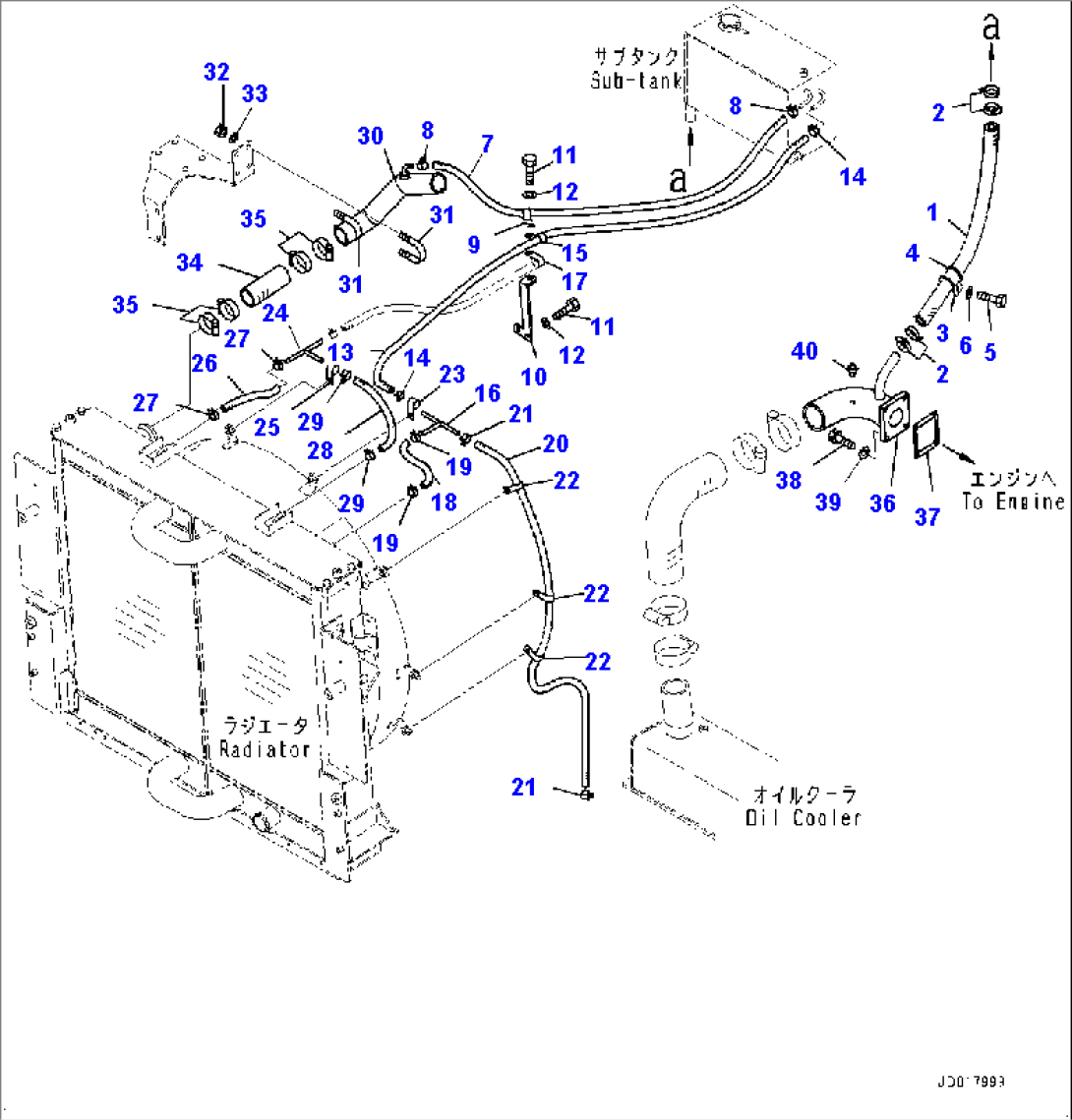

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-03-21990 | Hose | 7079-@ | |
| 2 | 07281-10419 | Clamp, Hose | 7079-@ | |
| 3 | 566-03-12620 | Clip | 7079-@ | |
| 4 | 20T-62-71831 | Cushion | 7079-@ | |
| 5 | 01010-81020 | Bolt | 7079-@ | |
| 6 | 01643-31032 | Washer | 7079-@ | |
| 7 | 09483-10308 | Hose | 7079-7231 | |
| 8 | 11Y-09-11140 | Clip | 7079-@ | |
| 9 | 04434-51610 | Clip | 7079-@ | |
| 10 | 56B-03-22410 | Bracket | 7079-@ | |
| 11 | 01010-81020 | Bolt | 7079-7231 | |
| 12 | 01643-31032 | Washer | 7079-7231 | |
| 13 | 09483-10311 | Hose | 7079-7231 | |
| 14 | 11Y-09-11140 | Clip | 7079-@ | |
| 15 | 04434-51610 | Clip | 7079-7231 | |
| 16 | 427-03-12460 | Tube | 7079-@ | |
| 17 | 04434-51610 | Clip | 7079-7231 | |
| 18 | 56B-03-21430 | Hose | 7079-7231 | |
| 19 | 11Y-09-11140 | Clip | 7079-@ | |
| 20 | 09483-10313 | Hose | 7079-7231 | |
| 21 | 11Y-09-11140 | Clip | 7079-@ | |
| 22 | 04434-51610 | Clip | 7079-@ | |
| 23 | 04434-51610 | Clip | 7079-@ | |
| 24 | 427-03-12460 | Tube | 7079-@ | |
| 25 | 04434-51610 | Clip | 7079-@ | |
| 26 | 56B-03-21410 | Hose | 7079-7231 | |
| 27 | 11Y-09-11140 | Clip | 7079-@ | |
| 28 | 56B-03-21420 | Hose | 7079-7231 | |
| 29 | 11Y-09-11140 | Clip | 7079-@ | |
| 30 | 56B-03-21552 | Tube | 7079-7231 | |
| 31 | 07283-36155 | Clip | 7079-@ | |
| 32 | 01597-01009 | Nut | 7079-@ | |
| 33 | 01643-31032 | Washer | 7079-@ | |
| 34 | 56B-03-21470 | Hose | 7079-@ | |
| 35 | 07299-00070 | Clamp | 7079-@ | |
| 36 | 56B-03-21580 | Connector | 7079-@ | |
| 37 | 6212-61-6821 | Gasket | 7079-@ | |
| 38 | 01010-81035 | Bolt | 7079-@ | |
| 39 | 01643-31032 | Washer | 7079-@ | |
| 40 | 07042-70108 | Plug | 7079-@ |
