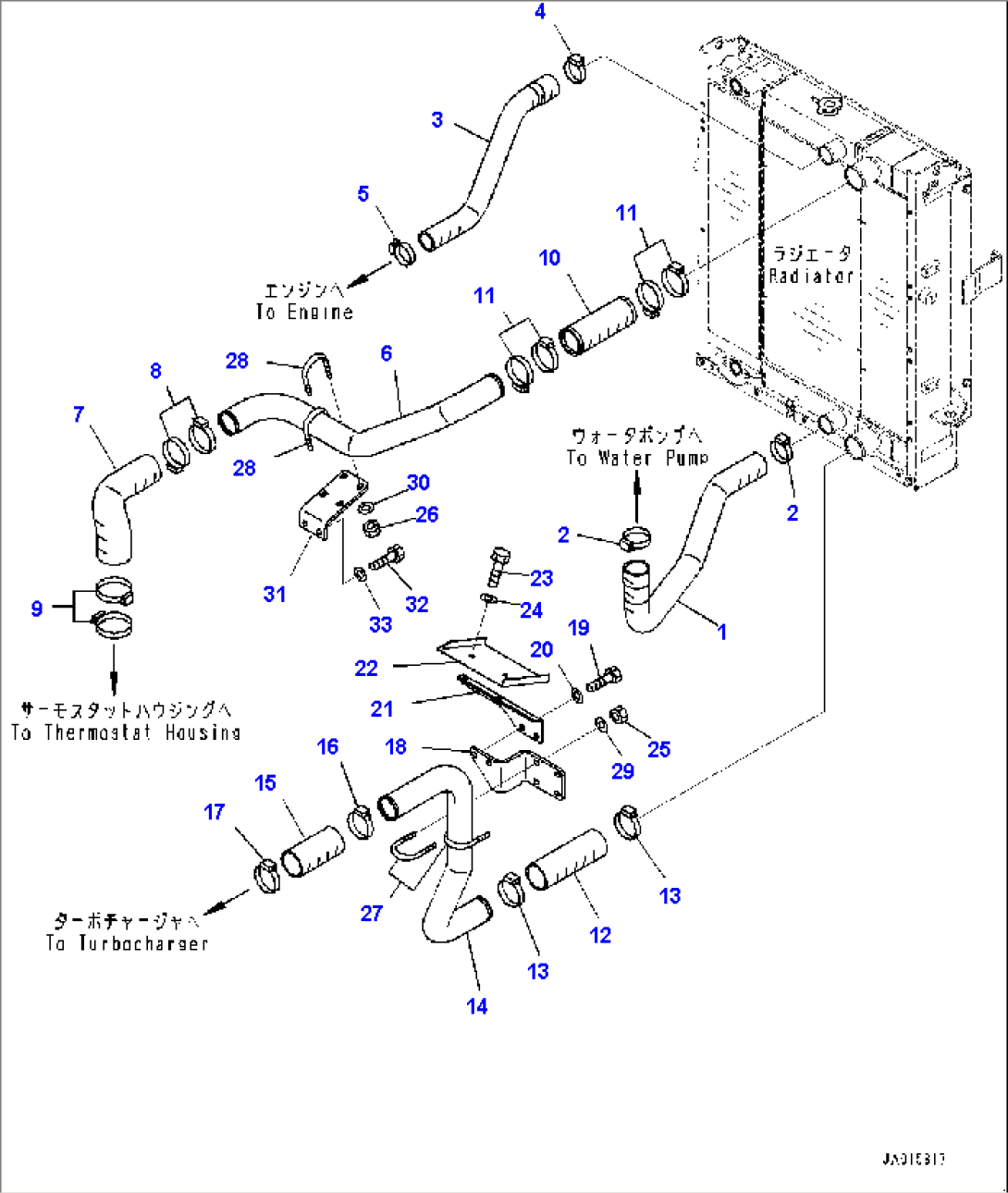

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-03-44210 | Hose | 70883- | |
| 2 | 07289-00070 | Clamp | 70883- | |
| 3 | 417-03-44130 | Hose | 70883- | |
| 4 | 07289-00070 | Clamp | 70883- | |
| 5 | 07289-00055 | Clamp | 70883- | |
| 6 | 417-03-44180 | Pipe | 70883- | |
| 7 | 417-03-44190 | Hose | 70883- | |
| 8 | 07289-00070 | Clamp | 70883- | |
| 9 | 07289-00080 | Clamp | 70883- | |
| 10 | 417-03-44170 | Hose | 70883- | |
| 11 | 07289-00070 | Clamp | 70883- | |
| 12 | 418-03-32250 | Hose | 70883- | |
| 13 | 07299-00070 | Clamp | 70883- | |
| 14 | 417-03-44140 | Pipe | 70883- | |
| 15 | 418-03-32180 | Hose | 70883- | |
| 16 | 07299-00070 | Clamp | 70883- | |
| 17 | 07299-00070 | Clamp | 70883- | |
| 18 | 417-03-44110 | Bracket | 70883- | |
| 19 | 01010-81235 | Bolt | 70883- | |
| 20 | 01643-31232 | Washer | 70883- | |
| 21 | 417-03-41630 | Bracket | 70883- | |
| 22 | 417-03-41640 | Plate | 70883- | |
| 23 | 01010-81020 | Bolt | 70883- | |
| 24 | 01643-31032 | Washer | 70883- | |
| 25 | 01597-01009 | Nut | 73034- | |
| 26 | 01597-01009 | Nut | 73034- | |
| 27 | 07283-36365 | Clip | 73034- | |
| 28 | 07283-36365 | Clip | 73034- | |
| 29 | 01643-31032 | Washer | 73034- | |
| 30 | 01643-31032 | Washer | 73034- | |
| 31 | 417-03-44120 | Bracket | 70883- | |
| 32 | 01010-81230 | Bolt | 70883- | |
| 33 | 01643-31232 | Washer | 70883- |
