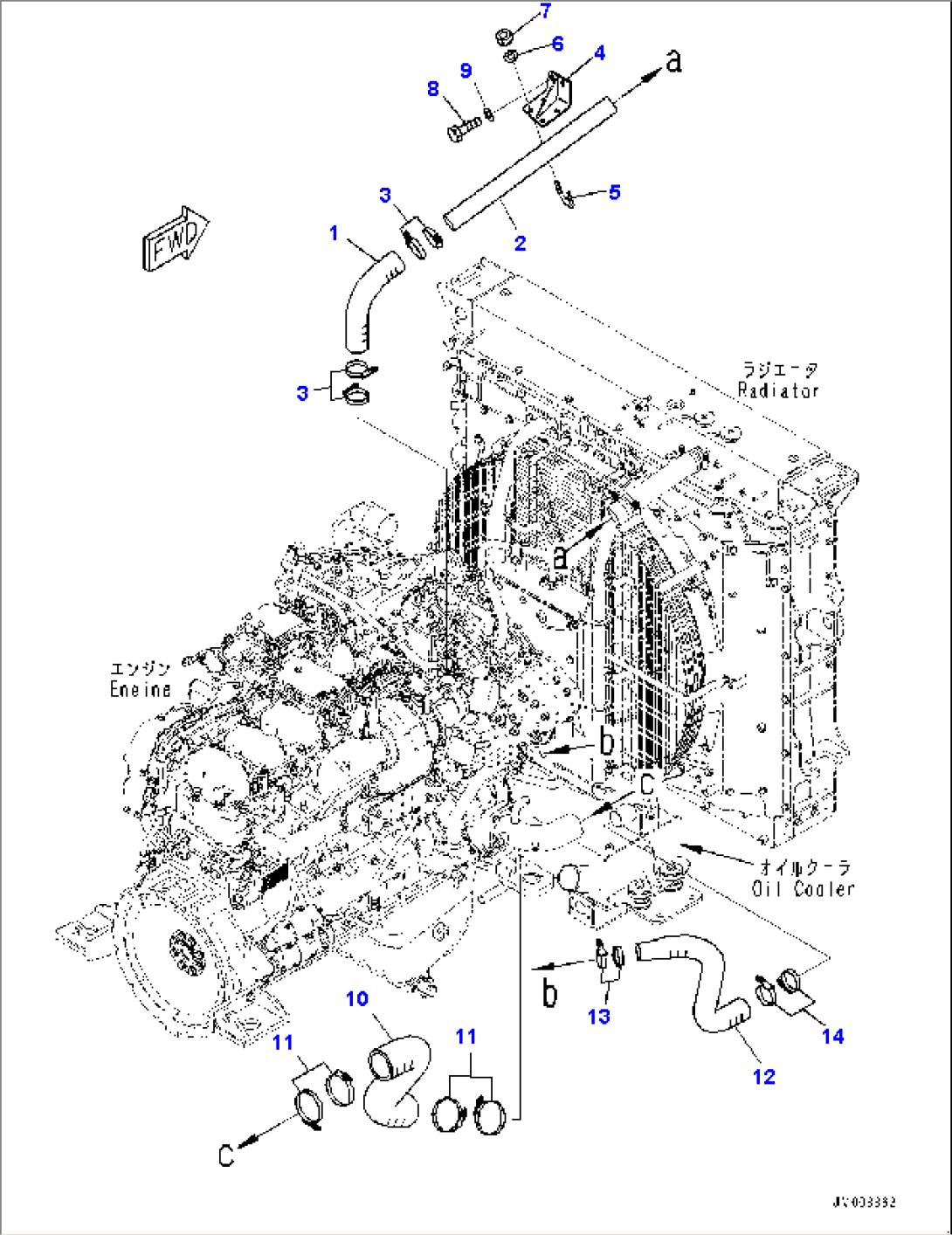

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-03-8M150 | Hose | 50001- | |
| 2 | 566-03-8M140 | Tube | 50001- | |
| 3 | 07299-00080 | Clamp, Hose | 50001- | |
| 4 | 566-03-8M160 | Bracket | 50001- | |
| 5 | 07283-36155 | Clip | 50001- | |
| 6 | 01643-31032 | Washer | 50001- | |
| 7 | 22P-70-12160 | Nut | 50001- | |
| 8 | 01010-81230 | Bolt | 50001- | |
| 9 | 01643-31232 | Washer | 50001- | |
| 10 | 566-03-8M120 | Hose | 50001- | |
| 11 | 07299-00105 | Clamp | 50001- | |
| 12 | 566-03-8M210 | Hose | 50001- | |
| 13 | 07299-00055 | Clamp | 50001- | |
| 14 | 07299-00080 | Clamp, Hose | 50001- |
