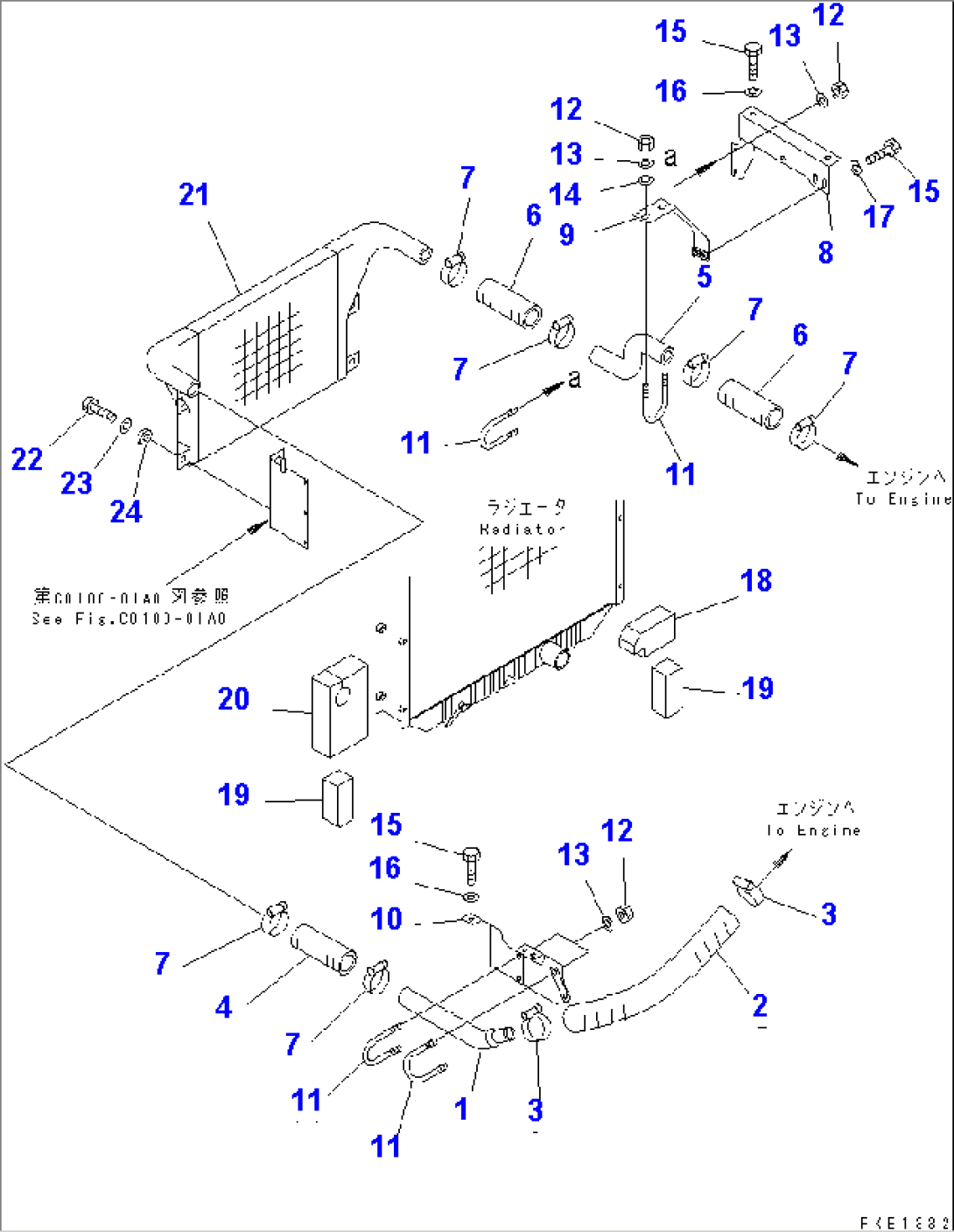

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6223-13-4610 | TUBE | 30001-@ | |
| 2 | 6223-13-4730 | HOSE | 33017-@ | |
| 2 | 6223-13-4630 | HOSE | 30001-33016 | |
| 3 | 07289-00055 | CLAMP | 30001-@ | |
| 4 | 6223-13-4740 | HOSE | 33017-@ | |
| 4 | 6223-13-4640 | HOSE | 30001-33016 | |
| 5 | 6223-13-4620 | TUBE | 30001-@ | |
| 6 | 6223-13-4740 | HOSE | 33017-@ | |
| 6 | 6223-13-4640 | HOSE | 31007-33016 | |
| 6 | 6223-13-4650 | HOSE | 30001-31006 | |
| 7 | 07289-00070 | CLAMP | 30001-@ | |
| 8 | 207-01-62140 | BRACKET | 30001-@ | |
| 9 | 207-01-62151 | BRACKET | 30001-@ | |
| 10 | 207-01-62161 | BRACKET | 30001-@ | |
| 11 | 07283-27060 | CLIP | 30001-@ | |
| 12 | 01599-01011 | NUT | 30001-@ | |
| 13 | 01643-31032 | WASHER | 30001-@ | |
| 14 | 203-54-56970 | WASHER | 30001-@ | |
| 15 | 01010-81230 | BOLT | 30001-@ | |
| 16 | 01643-31232 | WASHER | 30001-@ | |
| 17 | 175-54-34170 | WASHER | 30001-@ | |
| 18 | 207-03-61240 | SHEET | 30001-@ | |
| 19 | 207-03-61250 | SHEET | 30001-@ | |
| 20 | 207-03-61260 | SHEET | 30001-@ | |
| 21 | (6223-63-4200) | AFTER COOLER ASS'Y | 30001-33767 | |
| 22 | 01010-81045 | BOLT | 30001-@ | |
| 23 | 01643-31032 | WASHER | 30001-@ | |
| 24 | 6110-23-6490 | SPACER | 30001-@ |
