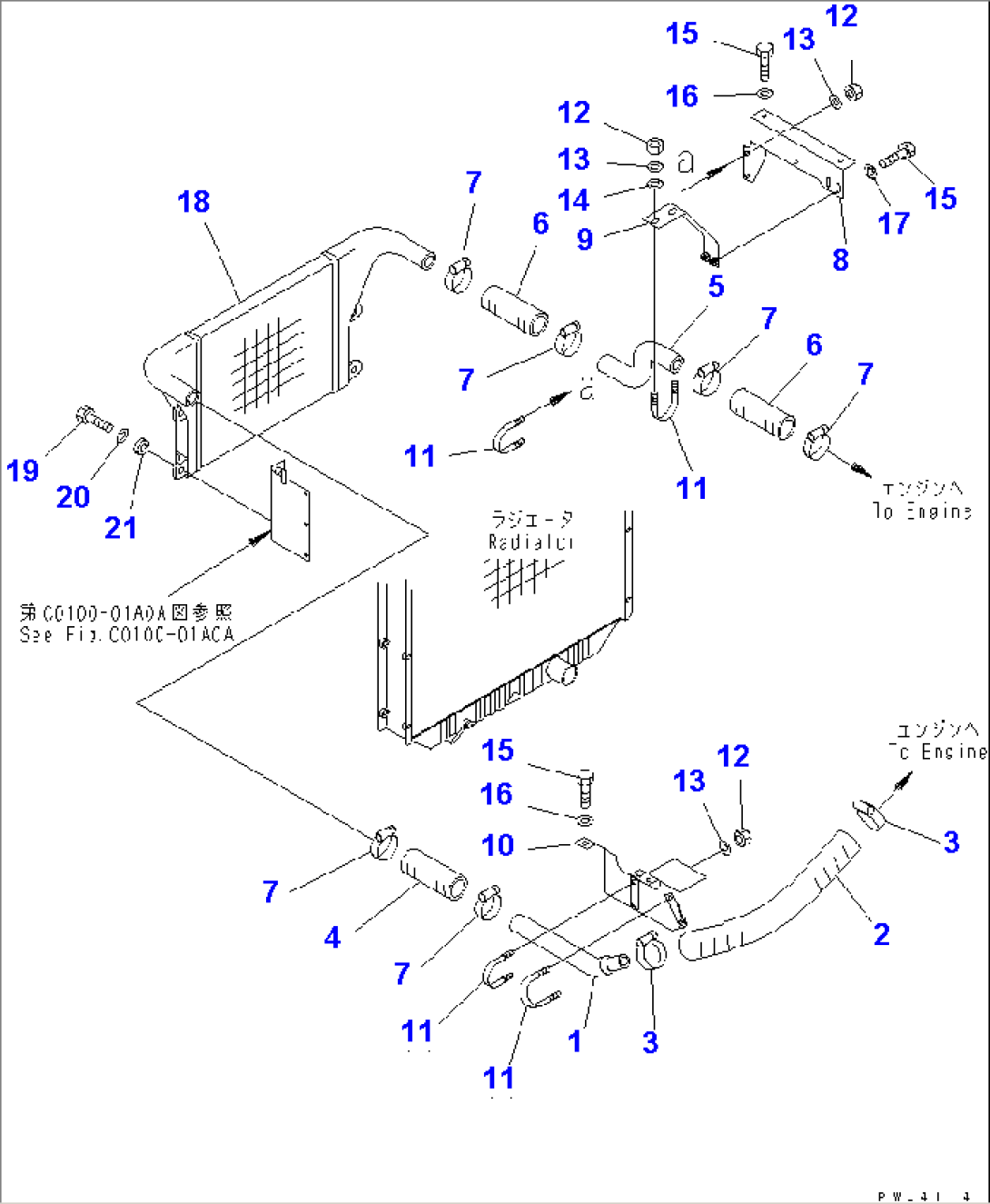

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6223-13-4610 | TUBE | K32001- | |
| 2 | 6223-13-4730 | HOSE | K32001- | |
| 3 | 07289-00055 | CLAMP | K32001- | |
| 4 | 6223-13-4740 | HOSE | K32001- | |
| 5 | 6223-13-4620 | TUBE | K32001- | |
| 6 | 6223-13-4740 | HOSE | K32001- | |
| 7 | 07289-00070 | CLAMP | K32001- | |
| 8 | 207-01-62140 | BRACKET | K32001- | |
| 9 | 207-01-62151 | BRACKET | K32001- | |
| 10 | 207-01-62161 | BRACKET | K32001- | |
| 11 | 07283-27060 | CLIP | K32001- | |
| 12 | 01599-01011 | NUT | K32001- | |
| 13 | 01643-31032 | WASHER | K32001- | |
| 14 | 203-54-56970 | WASHER | K32001- | |
| 15 | 01010-81230 | BOLT | K32001- | |
| 16 | 01643-31232 | WASHER | K32001- | |
| 17 | 175-54-34170 | WASHER | K32001- | |
| 18 | 6223-63-4100 | AIR COOLER ASS'Y | K32001- | |
| 19 | 01010-81045 | BOLT | K32001- | |
| 20 | 01643-31032 | WASHER | K32001- | |
| 21 | 6110-23-6490 | SPACER | K32001- |
