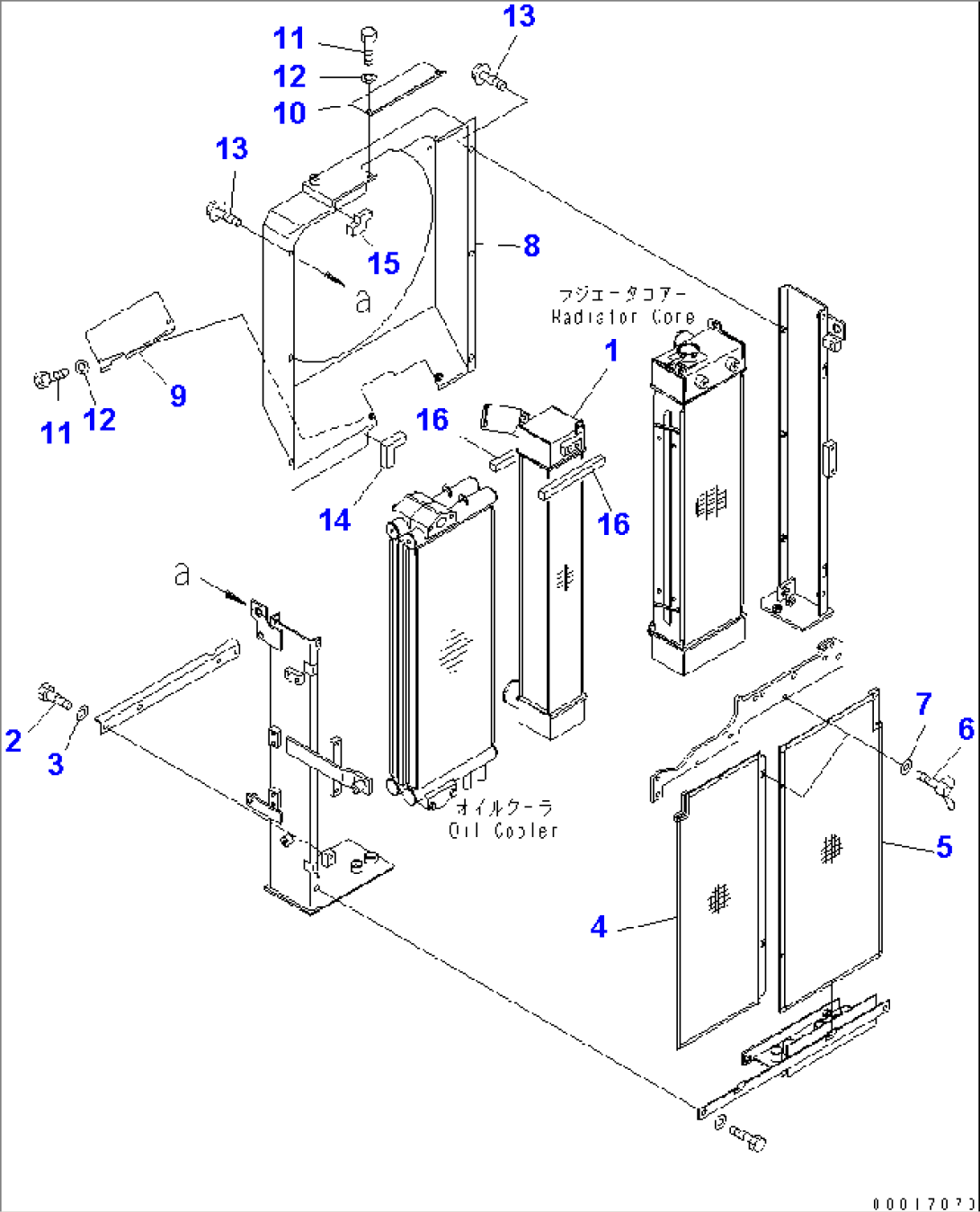

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-03-13130 | AFTER COOLER ASS'Y | 4501- | |
| 2 | 01010-81025 | BOLT | 4501- | |
| 3 | 01643-31032 | WASHER | 4501- | |
| 4 | 22B-03-12251 | NET | 4501- | |
| 5 | 22B-03-12261 | NET | 4501- | |
| 6 | 01434-10620 | BOLT¤ WING | 4501- | |
| 7 | 01643-30623 | WASHER | 4501- | |
| 8 | 22B-03-13170 | SHROUD | 4501- | |
| 9 | 22B-03-13180 | COVER | 4501- | |
| 10 | 22B-03-12190 | COVER | 4501- | |
| 11 | 01010-80812 | BOLT | 4501- | |
| 12 | 01643-30823 | WASHER | 4501- | |
| 13 | 01435-20816 | BOLT | 4501- | |
| 14 | 22B-03-12550 | SHEET | 4501- | |
| 15 | 22B-03-12580 | SHEET | 4501- | |
| 16 | 22B-03-12430 | SHEET | 4501- |
