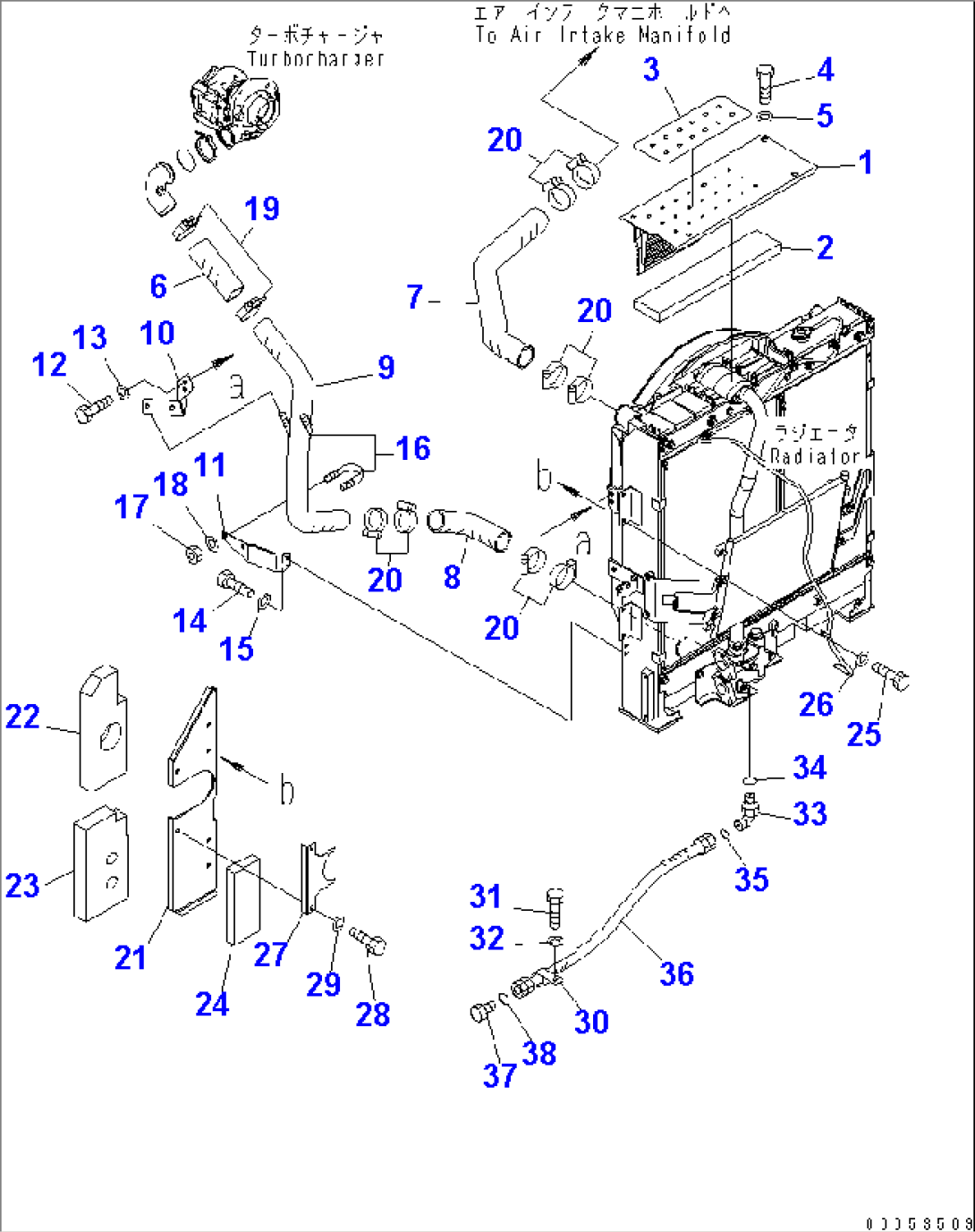

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-03-27880 | GUARD | 40001- | |
| 1 | \6\ | GUARD | 40001- | |
| 2 | 22U-03-27850 | SHEET | 40001- | |
| 3 | 20Y-00-42140 | PLATE | 40001- | |
| 4 | 01010-81225 | BOLT | 40001- | |
| 5 | 01643-31232 | WASHER | 40001- | |
| 6 | 20Y-03-41181 | HOSE | 40001- | |
| 7 | 22U-03-27110 | HOSE | 40001- | |
| 8 | 22U-01-27240 | HOSE | 40001- | |
| 9 | 22U-03-27141 | TUBE | 40001- | |
| 10 | 22U-03-27131 | BRACKET | 40001- | |
| 11 | 22U-01-27230 | BRACKET | 40001- | |
| 12 | 01010-81025 | BOLT | 40001- | |
| 13 | 01643-31032 | WASHER | 40001- | |
| 14 | 01010-81030 | BOLT | 40001- | |
| 15 | 01643-31032 | WASHER | 40001- | |
| 16 | 07283-37060 | CLIP | 40001- | |
| 17 | 01597-01009 | NUT | 40001- | |
| 18 | 01643-31032 | WASHER | 40001- | |
| 19 | 21T-62-69711 | CLAMP | 40001- | |
| 20 | 07299-00070 | CLAMP | 40001- | |
| 21 | 22U-03-27151 | PLATE | 40001- | |
| 21 | \6\ | PLATE | 40001- | |
| 22 | 22U-03-27171 | SHEET | 40001- | |
| 23 | 22U-03-22420 | SHEET | 40001- | |
| 24 | 22U-03-27840 | SHEET | 40001- | |
| 25 | 01010-81225 | BOLT | 40001- | |
| 26 | 01643-31232 | WASHER | 40001- | |
| 27 | 22U-03-27211 | PLATE | 40001- | |
| 28 | 01010-81225 | BOLT | 40001- | |
| 29 | 01643-31232 | WASHER | 40001- | |
| 30 | 04434-51712 | CLIP | 40001- | |
| 31 | 01010-81225 | BOLT | 40001- | |
| 32 | 01643-31232 | WASHER | 40001- | |
| 33 | 02782-10210 | ELBOW | 40001- | |
| 34 | 07002-11423 | O-RING | 40001- | |
| 35 | 02896-11008 | O-RING | 40001- | |
| 36 | 02762-00205 | HOSE | 40001- | |
| 37 | 07376-70210 | PLUG | 40001- | |
| 38 | 02896-11008 | O-RING | 40001- |
