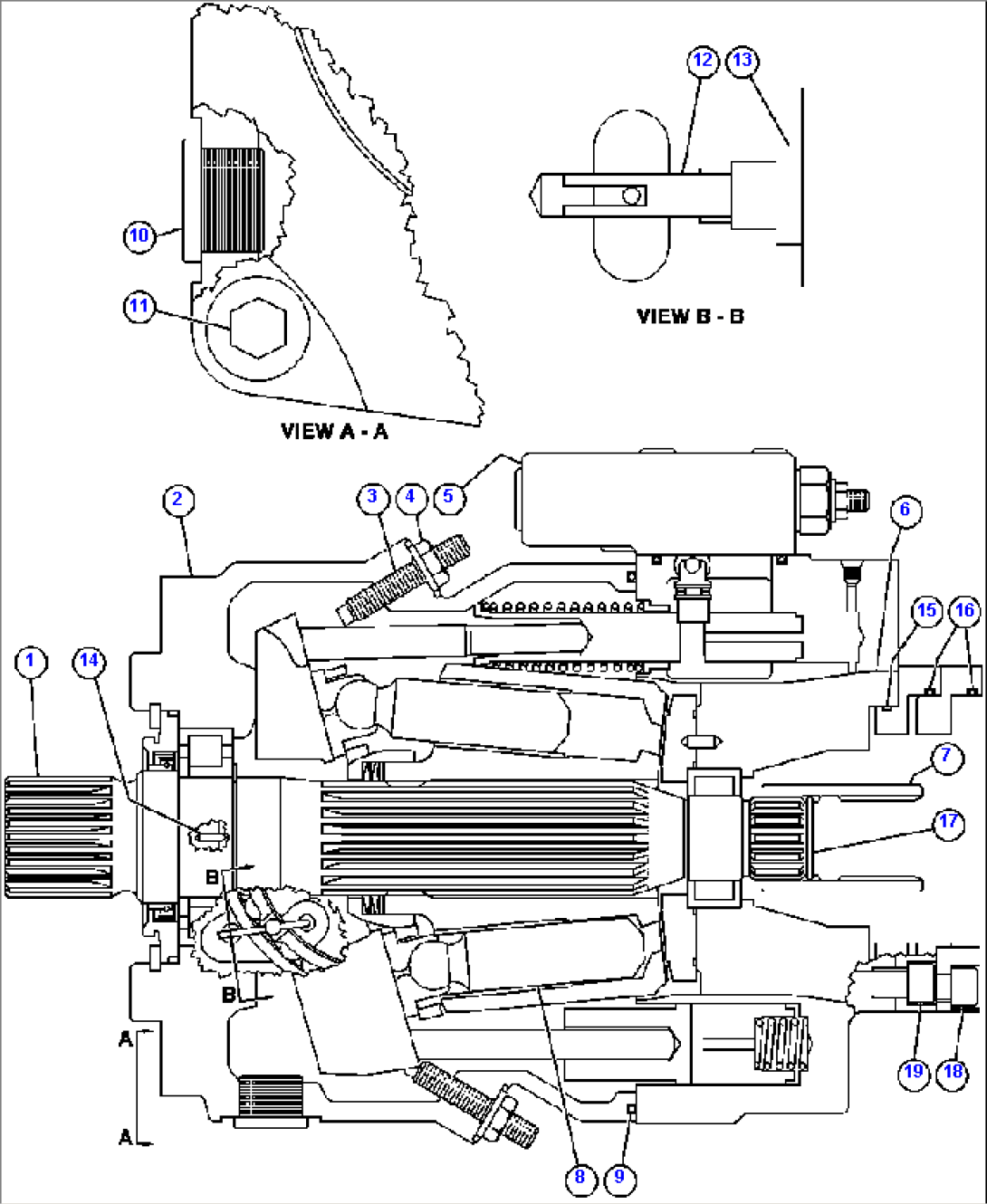

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF1611 | SHAFT | ||
| 2 | BF1616 | HOUSING | ||
| 3 | BF1618 | SCREW, STOP DISPLACEMENT | ||
| 4 | BF1619 | NUT SEAL LOCK | ||
| 5 | BF1613 | CONTROL VALVE ASSEMBLY (SEE INDEX) | ||
| 6 | BF1612 | PORT BLOCK ASSEMBLY (SEE INDEX) | ||
| 7 | BF1654 | COUPLING (1)/(2) | ||
| 8 | BF1614 | ROTARY PUMP ASSEMBLY (SEE INDEX) | ||
| 9 | TR2924 | O-RING (1) | ||
| 10 | 70555 | PLUG | ||
| 11 | BF1620 | CAPSCREW - M18 X 75 X 10.9 | ||
| 12 | BF1617 | PIN | ||
| 13 | 1430934H1 | PLUG (1) | ||
| 14 | BF1621 | PIN, RETAINING | ||
| 15 | VH4924 | O-RING (2) | ||
| 16 | VL5418 | O-RING (1)/(2) | ||
| 17 | BF1656 | RING, RETAINER | ||
| 18 | BF1655 | CAPSCREW - M12 X 2.00 X 8.8 | ||
| 19 | 931928R1 | CAPSCREW - M12 X 2.00 X 8.8 | ||
| NS|20 | BF1622 | NOTE: (1) INCLUDED IN BF1622 SEAL KIT. | ||
| NS|21 | (2) INCLUDED IN BF1615 THRU-DRIVE COUPLING. |
