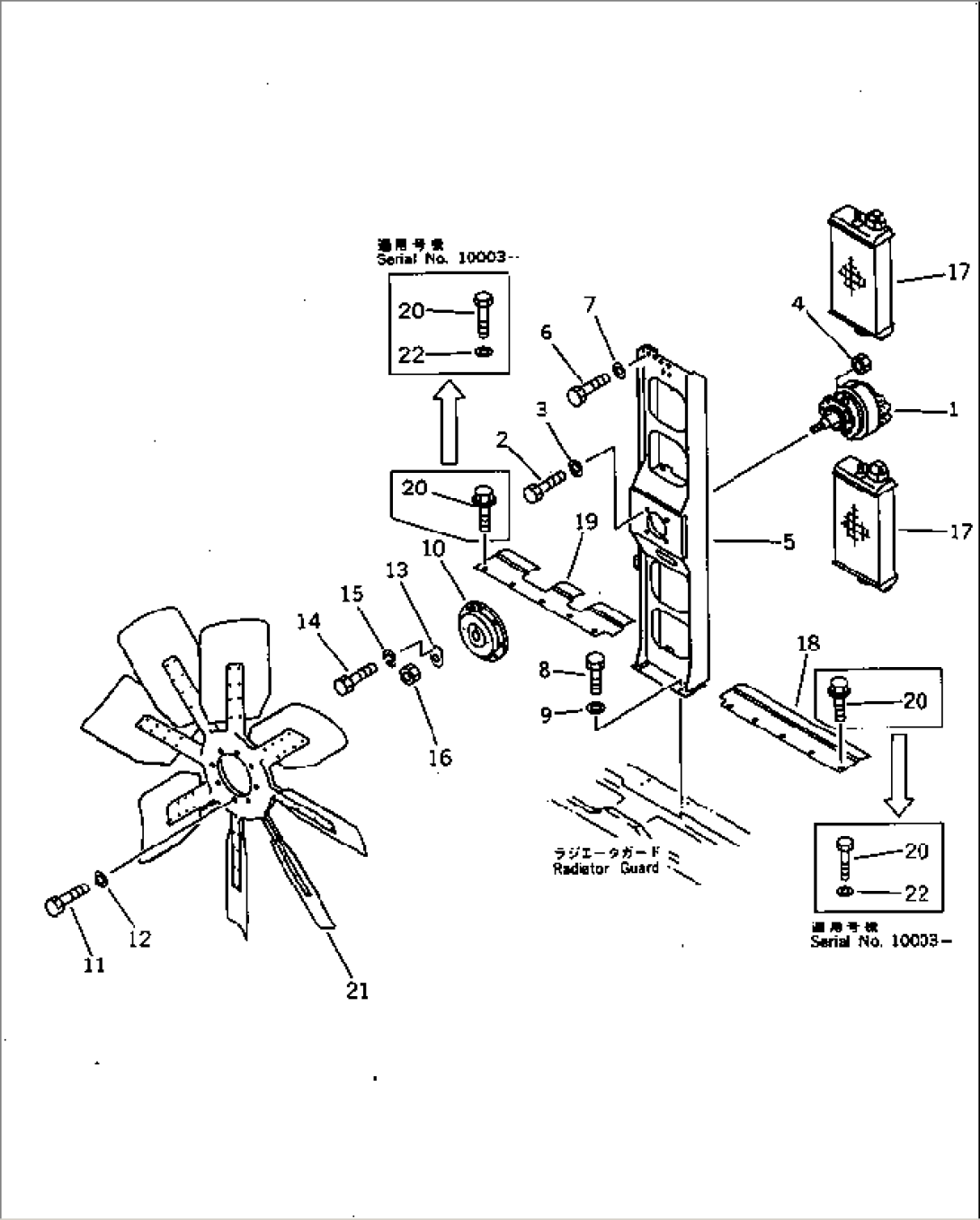

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (705-21-48021) | MOTOR ASS'Y | 10001-10011 | |
| 2 | 01010-81250 | BOLT | 10003-10011 | |
| 01010-81245 | BOLT | 10001-10002 | ||
| 3 | 01643-31232 | WASHER | 10003-10011 | |
| 01643-31232 | WASHER | 10001-10002 | ||
| 4 | 01580-11210 | NUT | 10001-10011 | |
| 5 | 19M-54-11271 | SUPPORT | 10001-10011 | |
| 6 | 01010-81230 | BOLT | 10001-@ | |
| 7 | 01643-31232 | WASHER | 10001-@ | |
| 8 | 01010-81230 | BOLT | 10001-@ | |
| 9 | 01643-31232 | WASHER | 10001-@ | |
| 10 | 19M-03-11830 | FLANGE | 10001-10011 | |
| 11 | 01010-81250 | BOLT | 10001-@ | |
| 12 | 01643-31232 | WASHER | 10001-@ | |
| 13 | 01660-03040 | LOCK | 10001-10011 | |
| 14 | 01010-81020 | BOLT | 10001-10011 | |
| 15 | 01602-21030 | WASHER,SPRING | 10001-10011 | |
| 16 | 01580-13024 | NUT | 10001-10011 | |
| 17 | 19M-03-11910 | COOLER,OIL | 10001-@ | |
| 18 | 19M-03-11351 | PLATE,BAFFLE¤ L.H. | 10001-@ | |
| 19 | 19M-03-11361 | PLATE,BAFFLE¤ R.H. | 10001-@ | |
| 20 | 01010-81225 | BOLT | 10003-@ | |
| 01435-01230 | BOLT | 10001-10002 | ||
| 21 | 600-643-1680 | FAN | 10001-@ | |
| 22 | 01643-31232 | WASHER | 10003-@ |
