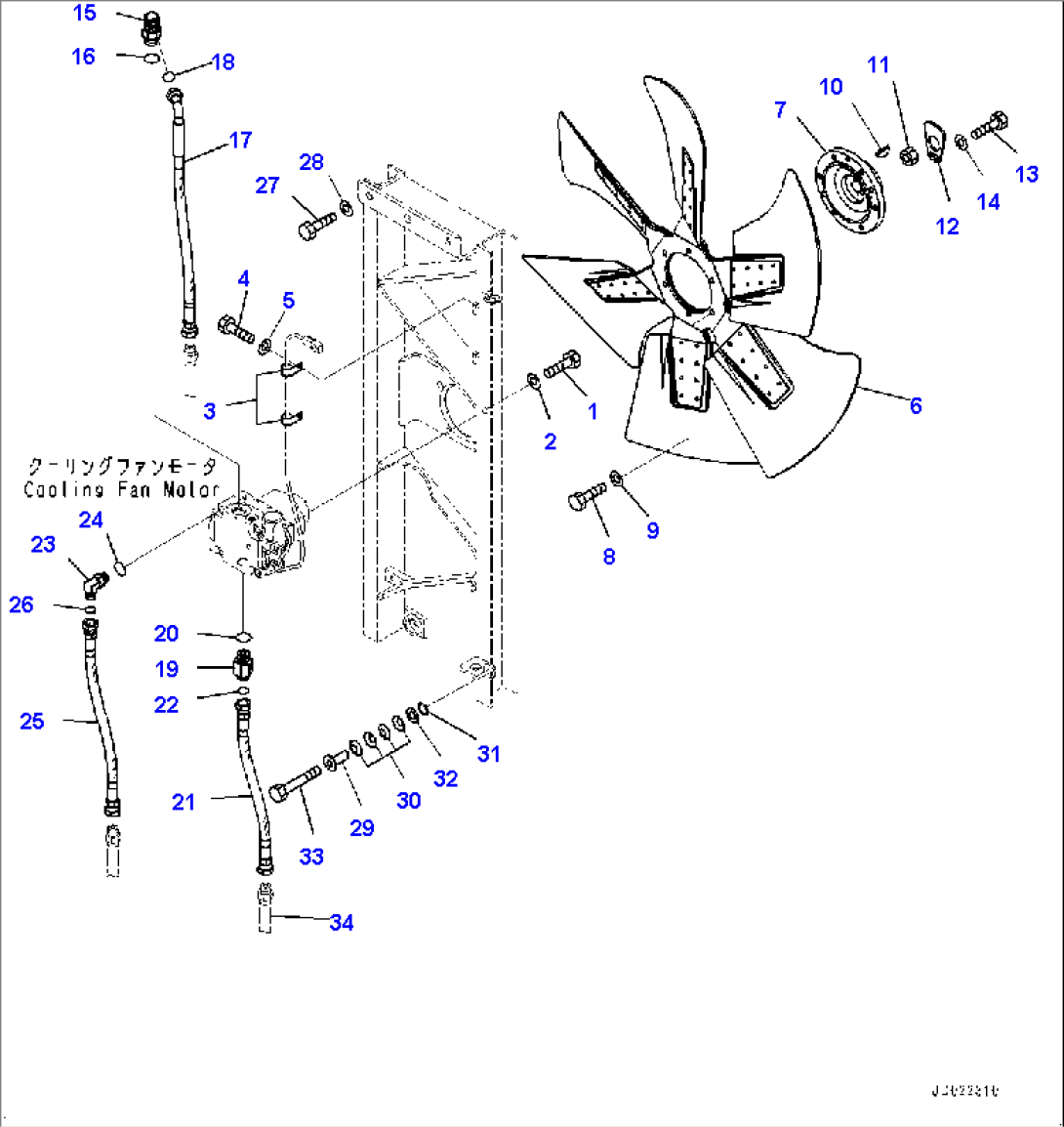

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81230 | Bolt | 11609- | |
| 2 | 01643-31232 | Washer | 11609- | |
| 3 | 04434-50612 | Clip | 11609- | |
| 4 | 01010-81220 | Bolt | 11609- | |
| 5 | 01643-31232 | Washer | 11609- | |
| 6 | 600-645-7850 | Fan | 11609- | |
| 7 | 423-03-31710 | Boss | 11609- | |
| 8 | 01010-81030 | Bolt | 11609- | |
| 9 | 01643-31032 | Washer | 11609- | |
| 10 | 04010-00722 | Key | 11609- | |
| 11 | 01583-12012 | Nut | 11609- | |
| 12 | 154-03-72270 | Lock | 11609- | |
| 13 | 01010-81020 | Bolt | 11609- | |
| 14 | 01643-31032 | Washer | 11609- | |
| 15 | 02782-10522 | Elbow | 11609- | |
| 16 | 07002-12434 | O-ring | 11609- | |
| 17 | 02766-005A5 | Hose, Face Seal Type | 11609- | |
| 18 | 02896-11015 | O-ring | 11609- | |
| 19 | 02781-00522 | Union | 11609- | |
| 20 | 07002-12434 | O-ring | 11609- | |
| 21 | 02762-005A3 | Hose, Face Seal Type | 11609- | |
| 22 | 02896-11015 | O-ring | 11609- | |
| 23 | 22M-62-21380 | Elbow | 11609- | |
| 24 | 07002-11823 | O-ring | 11609- | |
| 25 | 02762-005A4 | Hose | 11609- | |
| 26 | 02896-11015 | O-ring | 11609- | |
| 27 | 01010-81230 | Bolt | 11609- | |
| 28 | 01643-31232 | Washer | 11609- | |
| 28 | 154-03-00050 | Spring Assembly | 11609- | |
| 29 | 154-03-13180 | Spacer | 11609- | |
| 30 | 175-54-27350 | Spring | 11609- | |
| 31 | 175-54-28770 | Ring | 11609- | |
| 32 | 01643-32060 | Washer | 11609- | |
| 33 | 01010-81265 | Bolt | 11609- | |
| 34 | (154-03-76680) | Tube | - |
