| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-03-75131 | Support | 11609- | |
| 2 | 154-54-72831 | Bar | 11609- | |
| 3 | 195-43-18361 | Spring | 11609- | |
| 4 | 01010-80816 | Bolt | 11609- | |
| 5 | 01643-30823 | Washer | 11609- | |
| 6 | 01643-32060 | Washer | 11609- | |
| 7 | 04050-15030 | Pin, Cotter | 11609- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85px 15e0 s/n 11609 up (ecot3)
- Cooling system
- Cooling fan drive, support (#11609 )
Поиск по каталогу

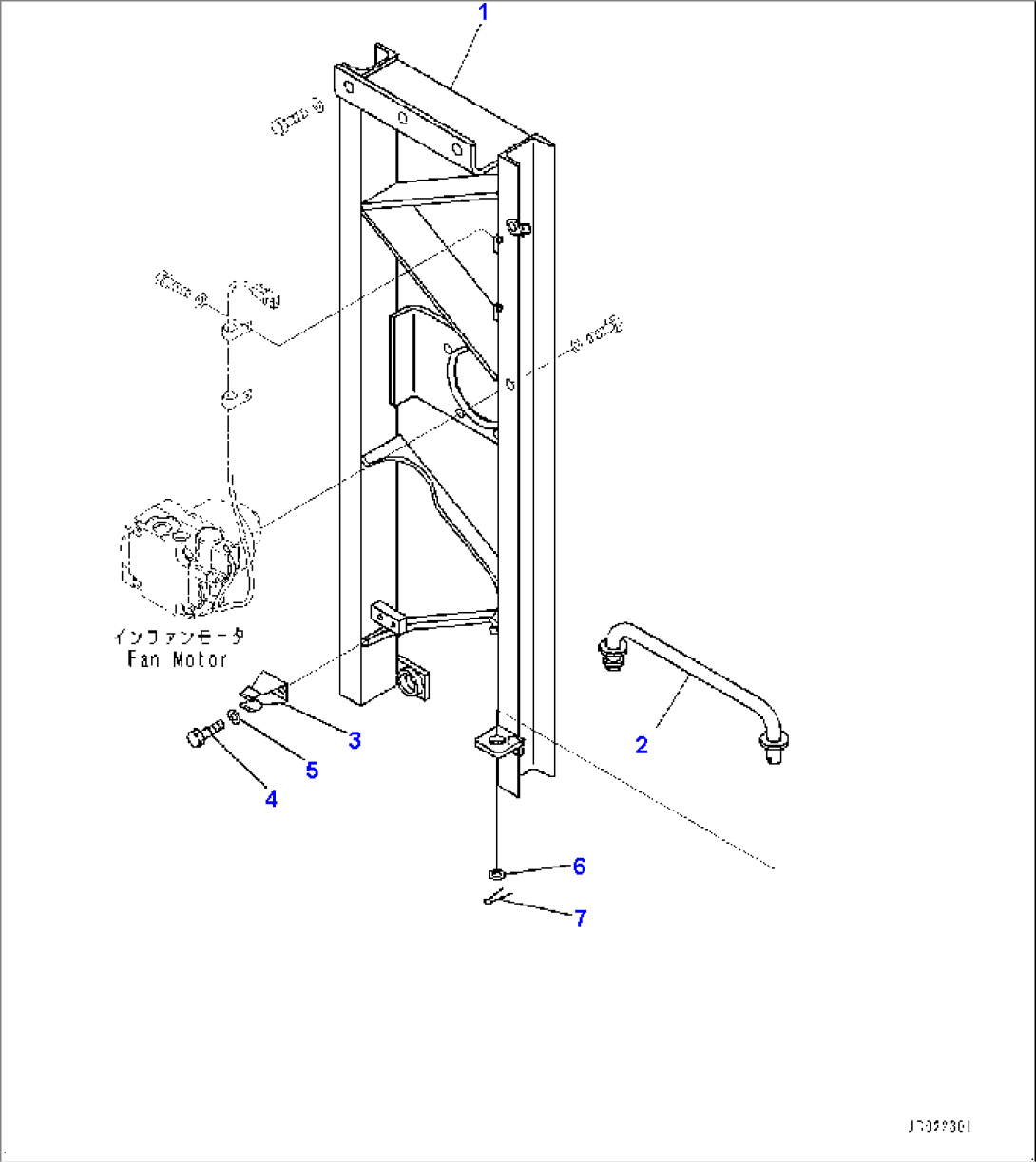

Cooling Fan Drive, Support (#11609-)
