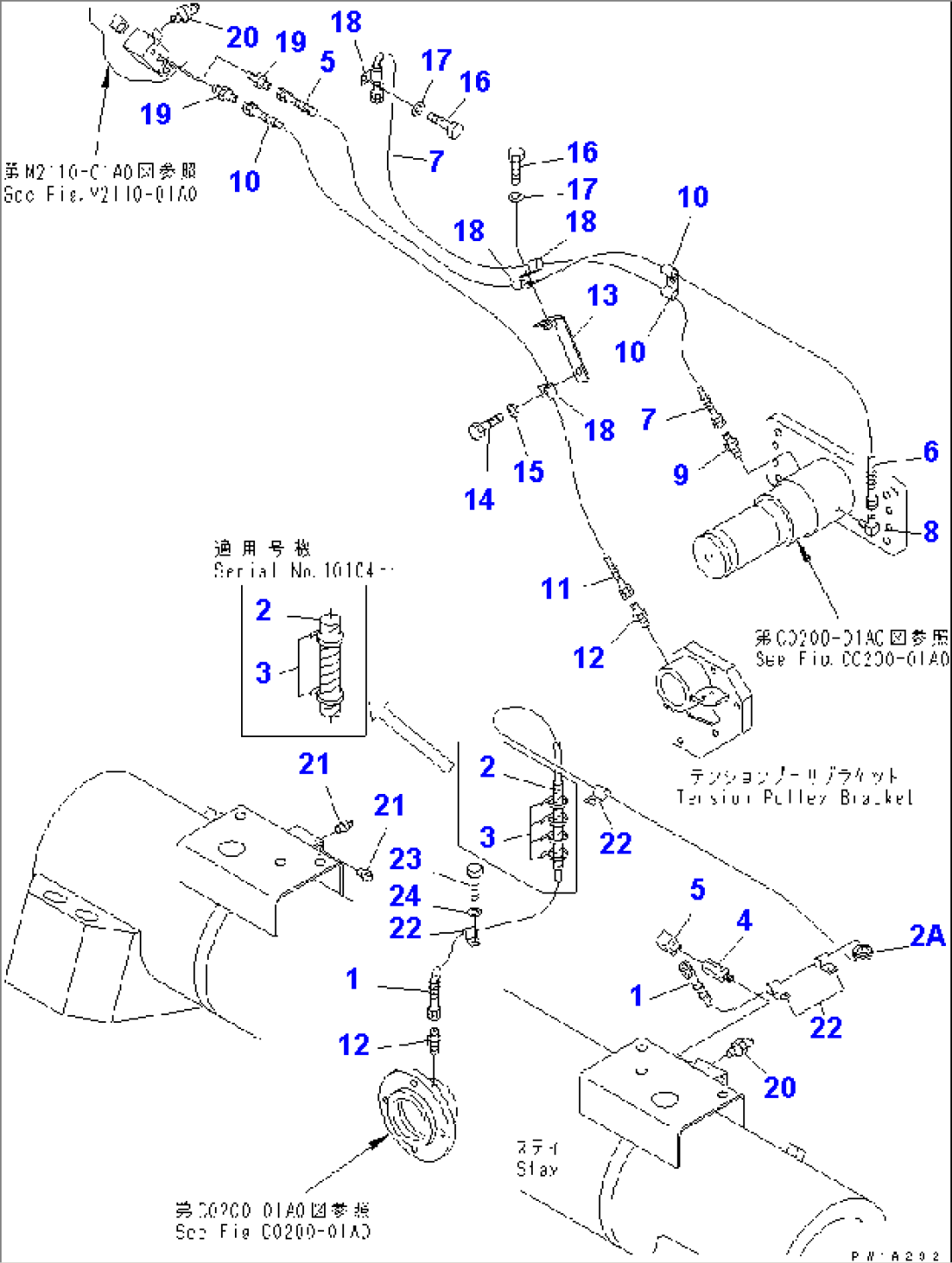

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-03-31940 | HOSE | 10101- | |
| 2 | 777-06-12550 | TUBE | 10104- | |
| 19M-03-12510 | TUBE | 10101-10103 | ||
| 2A | 08037-01610 | GROMMET | 10101- | |
| 3 | 08034-00834 | BAND | 10104- | |
| 08034-00536 | BAND | 10101-10103 | ||
| 4 | 17M-49-14250 | NIPPLE | 10101- | |
| 5 | 202-62-21430 | ELBOW | 10101- | |
| 6 | 17M-50-24240 | HOSE | 10101- | |
| 7 | 201-936-7440 | HOSE | 10101- | |
| 8 | 202-62-21430 | ELBOW | 10101- | |
| 9 | 205-70-51390 | NIPPLE | 10101- | |
| 10 | 198-904-4280 | CLIP | 10101- | |
| 11 | 17M-50-24250 | HOSE | 10101- | |
| 12 | 203-62-21740 | NIPPLE | 10101- | |
| 13 | 17A-61-13391 | BRACKET | 10101- | |
| 14 | 01010-81020 | BOLT | 10101- | |
| 15 | 01643-31032 | WASHER | 10101- | |
| 16 | 01010-81225 | BOLT | 10101- | |
| 17 | 01643-31232 | WASHER | 10101- | |
| 18 | 198-904-4280 | CLIP | 10101- | |
| 19 | 203-62-21740 | NIPPLE | 10101- | |
| 20 | 07020-00000 | FITTING,GREASE | 10101- | |
| 21 | 07042-00108 | PLUG | 10101- | |
| 22 | 198-904-4280 | CLIP | 10101- | |
| 23 | 01010-81225 | BOLT | 10101- | |
| 24 | 01643-31232 | WASHER | 10101- |
