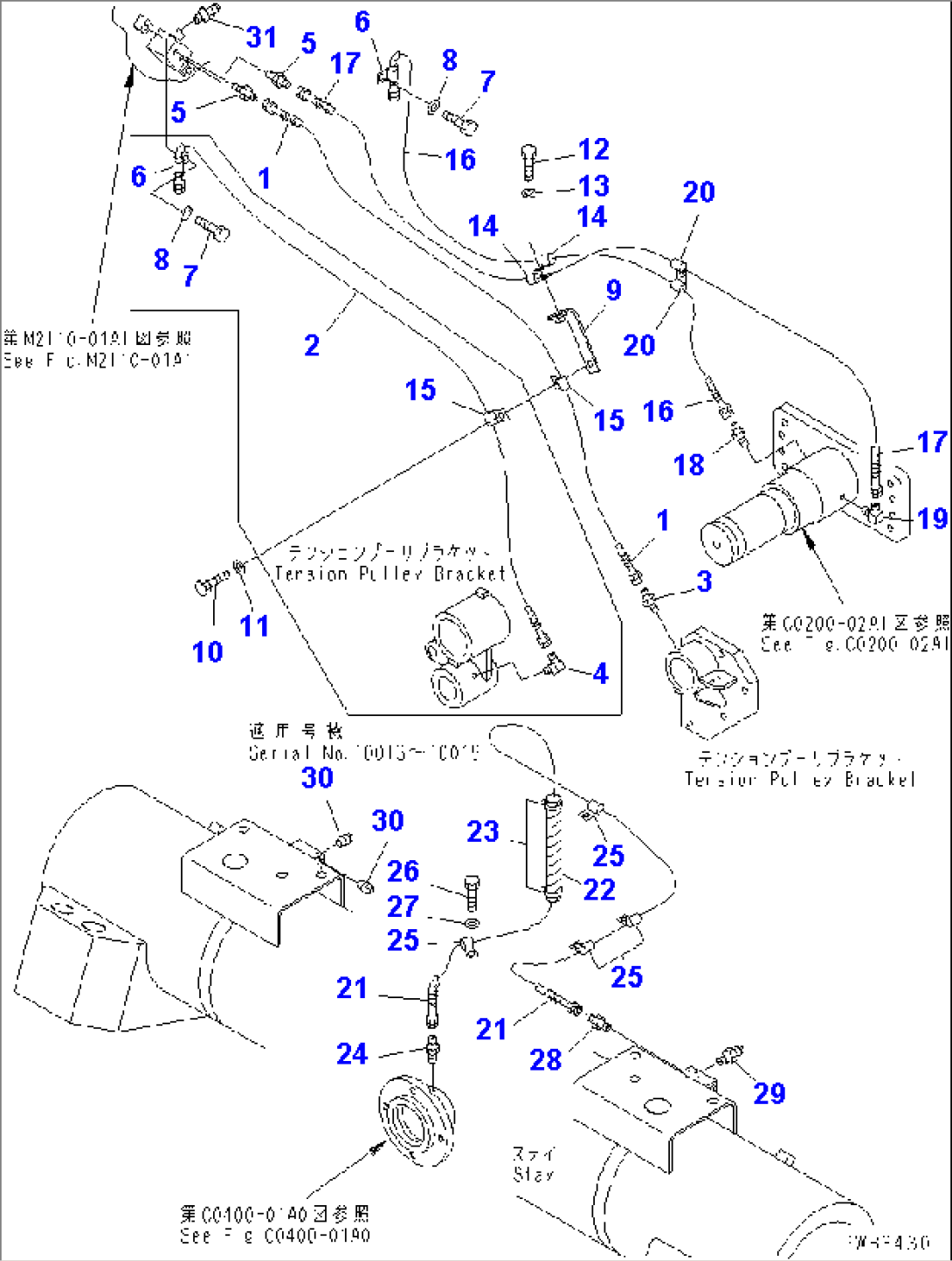

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-50-24250 | HOSE | 10013- | |
| 2 | 17M-50-24250 | HOSE | 10013-10018 | |
| 3 | 203-62-21740 | NIPPLE | 10013- | |
| 4 | 202-62-21430 | ELBOW | 10013-10018 | |
| 5 | 203-62-21740 | NIPPLE | 10013- | |
| 6 | 198-904-4280 | CLIP | 10019- | |
| 6 | 198-904-4280 | CLIP | 10013-10018 | |
| 7 | 01010-81225 | BOLT | 10019- | |
| 7 | 01010-81225 | BOLT | 10013-10018 | |
| 8 | 01643-31232 | WASHER | 10019- | |
| 8 | 01643-31232 | WASHER | 10013-10018 | |
| 9 | 17A-61-13391 | BRACKET | 10013- | |
| 10 | 01010-81020 | BOLT | 10013- | |
| 11 | 01643-31032 | WASHER | 10013- | |
| 12 | 01010-81225 | BOLT | 10013- | |
| 13 | 01643-31232 | WASHER | 10013- | |
| 14 | 198-904-4280 | CLIP | 10013- | |
| 15 | 198-904-4280 | CLIP | 10019- | |
| 15 | 198-904-4280 | CLIP | 10013-10018 | |
| 16 | 17M-50-24240 | HOSE | 10013- | |
| 17 | 201-936-7440 | HOSE | 10019- | |
| 17 | 17M-50-24240 | HOSE | 10013-10016 | |
| 18 | 205-70-51390 | NIPPLE | 10019- | |
| 18 | 203-62-21740 | NIPPLE | 10013-10016 | |
| 19 | 202-62-21430 | ELBOW | 10013- | |
| 20 | 198-904-4280 | CLIP | 10013- | |
| 21 | 19M-03-21840 | HOSE | 10013- | |
| 22 | 777-06-12550 | TUBE | 10013- | |
| 23 | 08034-00834 | BAND | 10013- | |
| 24 | 203-62-21740 | NIPPLE | 10013- | |
| 25 | 198-904-4280 | CLIP | 10013- | |
| 26 | 01010-81225 | BOLT | 10013- | |
| 27 | 01643-31232 | WASHER | 10013- | |
| 28 | 203-62-21740 | NIPPLE | 10013- | |
| 29 | 07020-00000 | FITTING,GREASE | 10013- | |
| 30 | 07042-00108 | PLUG | 10013- | |
| 31 | 07020-00000 | FITTING,GREASE | 10013- |
