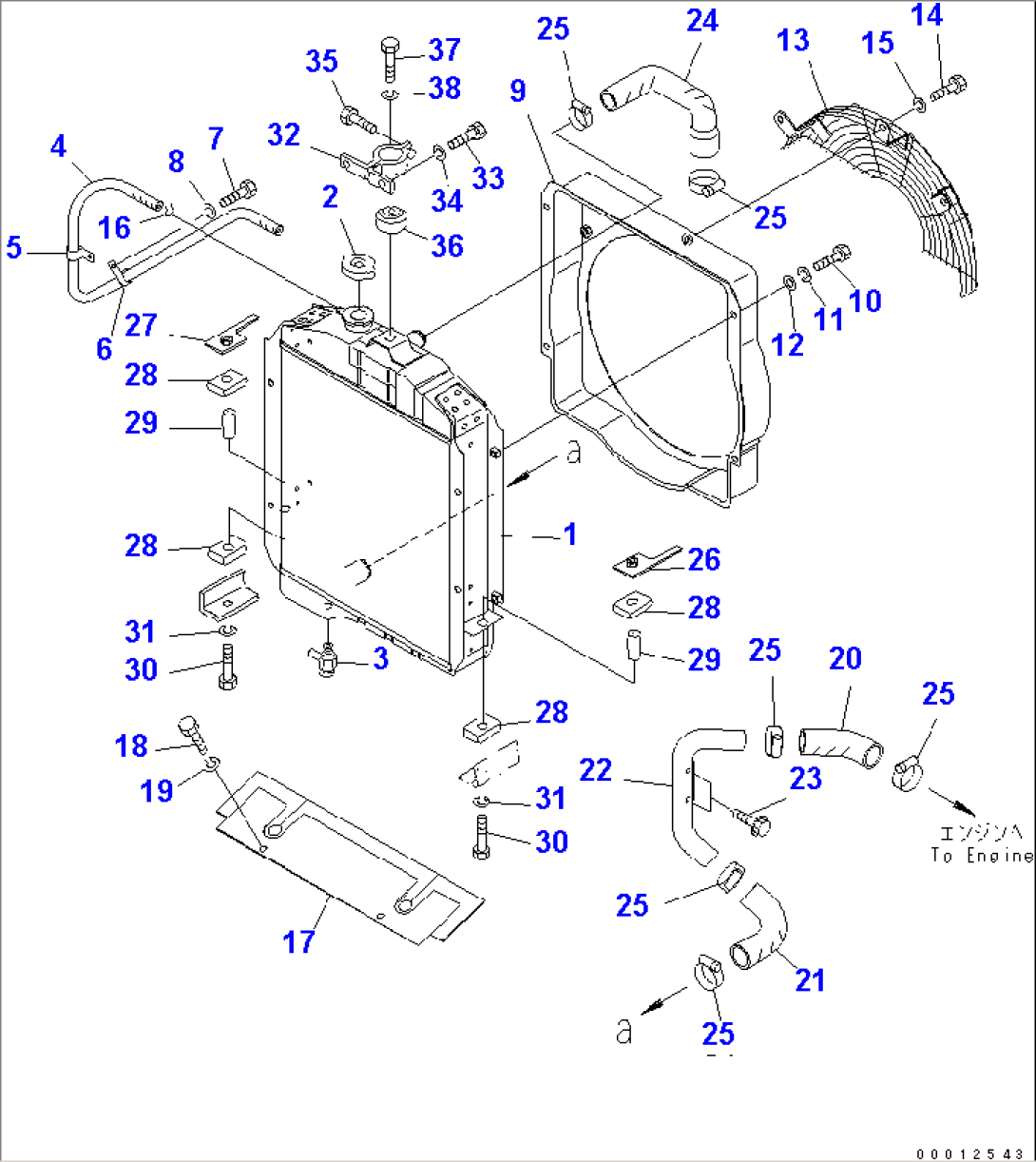

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-Y16-4210 | CORE ASS'Y | 83001- | |
| 2 | 20U-03-21540 | CAP | 83164- | |
| 2 | 201-03-51310 | CAP | 83001-83163 | |
| 3 | 07730-10003 | VALVE | 83001- | |
| 4 | 23S-03-11140 | HOSE | 83001- | |
| 5 | 04434-51210 | CLIP | 83001- | |
| 6 | 04434-51210 | CLIP | 83001- | |
| 7 | 01010-81020 | BOLT | 83001- | |
| 8 | 01643-31032 | WASHER | 83001- | |
| 9 | 104-03-51170 | SHROUD | 83001- | |
| 10 | 01010-80816 | BOLT | 83001- | |
| 11 | 01602-20825 | WASHER | 83001- | |
| 12 | 01643-30823 | WASHER | 83001- | |
| 13 | 104-03-51210 | GUARD | 83001- | |
| 14 | 01010-81020 | BOLT | 83001- | |
| 15 | 01602-21030 | WASHER | 83001- | |
| 16 | 206-03-43340 | CLIP | 83001- | |
| 17 | 104-03-51181 | BAFFLE | 83001- | |
| 18 | 01010-81020 | BOLT | 83001- | |
| 19 | 01602-21030 | WASHER | 83001- | |
| 20 | 104-03-51130 | HOSE | 83001- | |
| 21 | 104-03-51140 | HOSE | 83001- | |
| 22 | 104-03-41150 | TUBE | 83001- | |
| 23 | 01435-01016 | BOLT | 83001- | |
| 24 | 104-03-51160 | HOSE | 83001- | |
| 25 | 207-09-11110 | CLAMP | 83001- | |
| 26 | 104-03-41110 | PLATE | 83001- | |
| 27 | 104-03-41120 | PLATE | 83001- | |
| 28 | 100-03-12140 | SEAT | 83001- | |
| 29 | 20T-03-11130 | SPACER | 83001- | |
| 30 | 01010-81060 | BOLT | 83001- | |
| 31 | 01602-21030 | WASHER | 83001- | |
| 32 | 103-03-31191 | BRACKET | 83001- | |
| 33 | 01010-81025 | BOLT | 83001- | |
| 34 | 01602-21030 | WASHER | 83001- | |
| 35 | 01010-81025 | BOLT | 83001- | |
| 36 | 135-03-12110 | DAMPER | 83001- | |
| 37 | 01010-81460 | BOLT | 83001- | |
| 38 | 01602-21442 | WASHER | 83001- |
