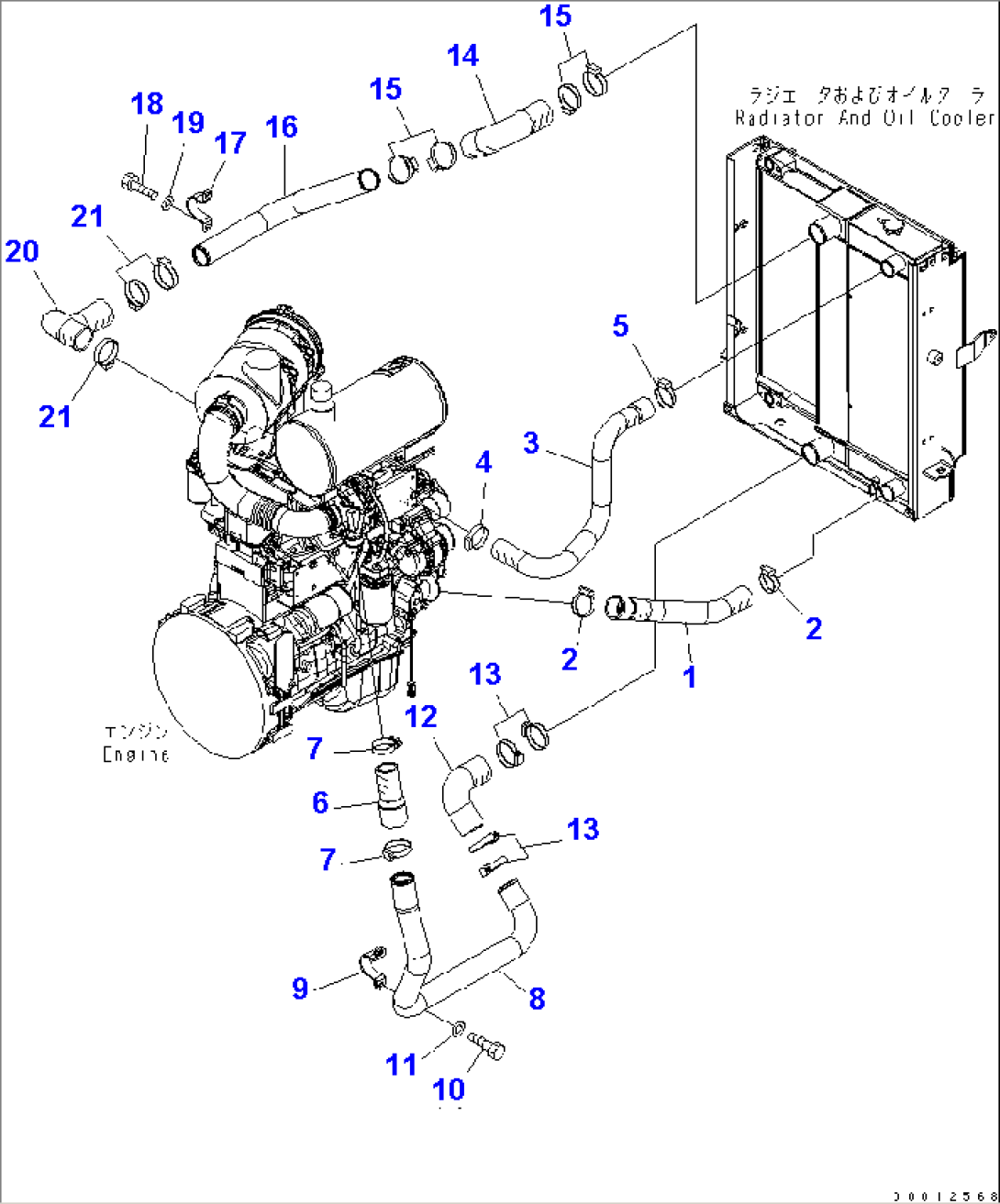

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-03-32112 | HOSE | 65061- | |
| 2 | 07289-00070 | CLAMP | 65061- | |
| 3 | 416-03-32123 | HOSE | 65061- | |
| 4 | 07289-00055 | CLAMP | 65061- | |
| 5 | 07289-00070 | CLAMP | 65061- | |
| 6 | 416-03-32133 | HOSE | 65061- | |
| 7 | 07299-00070 | CLAMP | 65061- | |
| 8 | 416-03-32144 | TUBE | 65061- | |
| 9 | 418-03-32261 | PLATE | 65061- | |
| 10 | 01010-81235 | BOLT | 65061- | |
| 11 | 01643-31232 | WASHER | 65061- | |
| 12 | 416-03-32190 | HOSE | 65061- | |
| 13 | 07299-00070 | CLAMP | 65061- | |
| 14 | 418-03-32160 | HOSE | 65061- | |
| 15 | 07289-00070 | CLAMP | 65061- | |
| 16 | 416-03-32174 | TUBE | 65061- | |
| 17 | 418-03-31251 | PLATE | 65061- | |
| 18 | 01010-81225 | BOLT | 65061- | |
| 19 | 01643-31232 | WASHER | 65061- | |
| 20 | 416-03-32181 | HOSE | 65061- | |
| 21 | 07289-00070 | CLAMP | 65061- |
