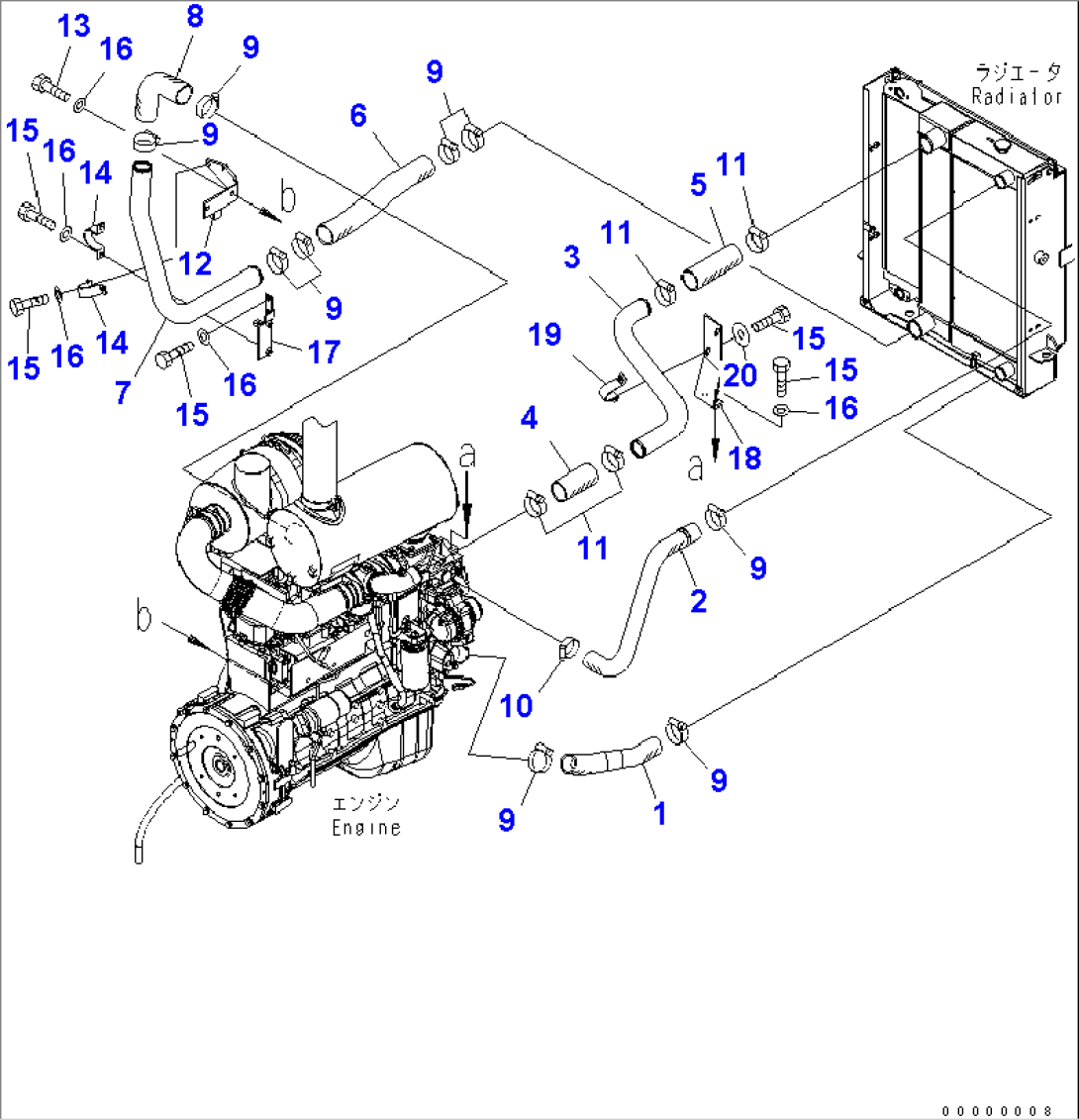

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-03-32111 | HOSE | 65001- | |
| 2 | 417-03-32121 | HOSE | 65001- | |
| 3 | 417-03-32150 | HOSE | 65001- | |
| 4 | 418-03-32180 | HOSE | 65001- | |
| 5 | 418-03-32250 | HOSE | 65001- | |
| 6 | 417-03-32141 | HOSE | 65001- | |
| 7 | 418-03-32153 | PIPE | 65001- | |
| 8 | 418-03-32160 | HOSE | 65001- | |
| 9 | 07289-00070 | CLAMP | 65001- | |
| 10 | 07289-00055 | CLAMP | 65001- | |
| 11 | 07299-00070 | CLAMP | 65001- | |
| 12 | 418-03-31294 | BRACKET | 65001- | |
| 13 | 01010-81225 | BOLT | 65001- | |
| 14 | 418-03-31251 | PLATE | 65001- | |
| 15 | 01010-81225 | BOLT | 65001- | |
| 16 | 01643-31232 | WASHER | 65001- | |
| 17 | 418-03-31222 | BRACKET | 65001- | |
| 18 | 417-03-32191 | BRACKET | 65001- | |
| 19 | 418-03-32261 | PLATE | 65001- | |
| 20 | 124-54-26540 | WASHER | 65001- |
