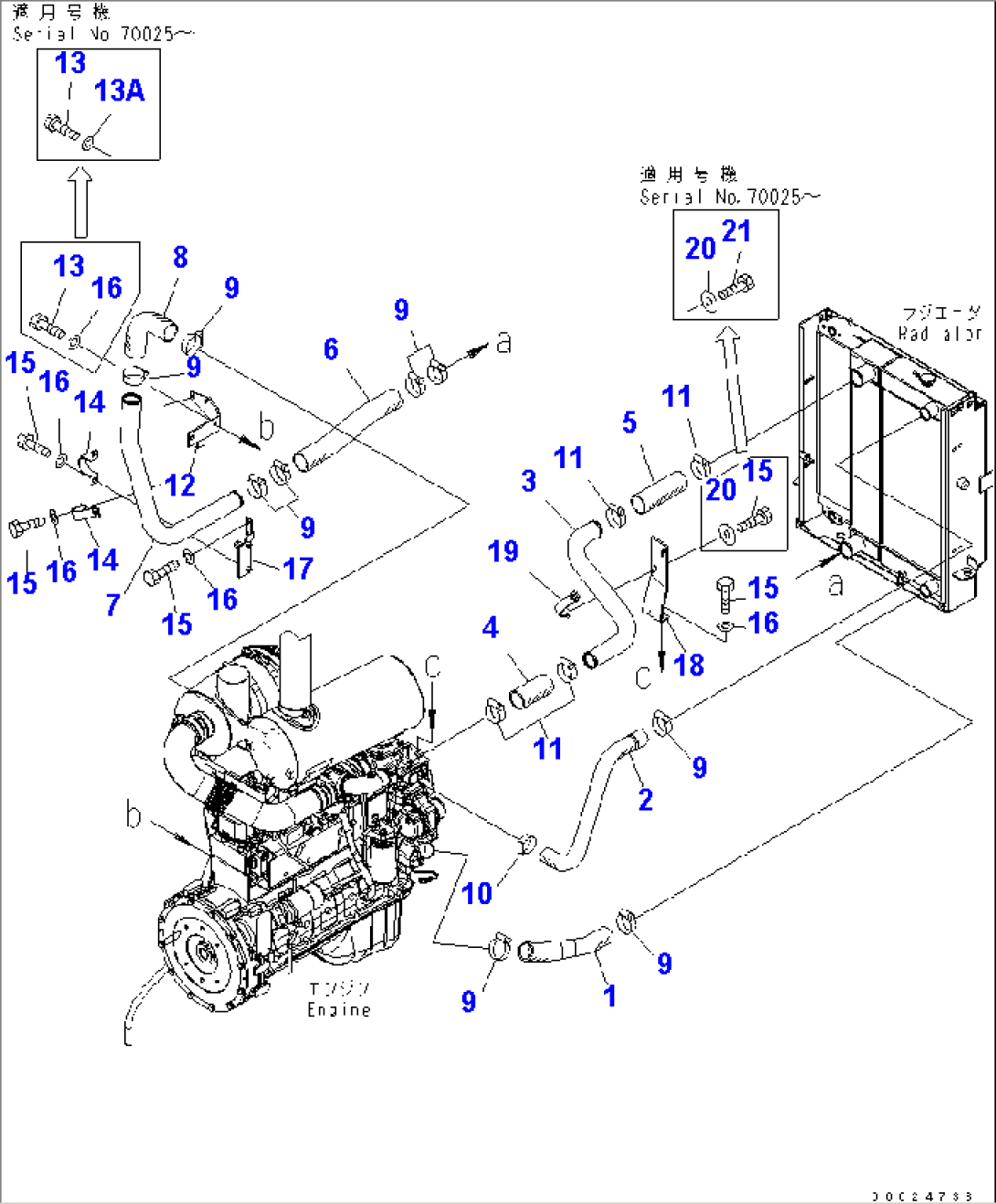

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-03-32112 | HOSE | 70001- | |
| 2 | 418-03-32122 | HOSE | 70001- | |
| 3 | 418-03-32172 | PIPE | 70001- | |
| 4 | 418-03-32180 | HOSE | 70001- | |
| 5 | 418-03-32250 | HOSE | 70001- | |
| 6 | 418-03-32143 | HOSE | 70001- | |
| 7 | 418-03-32153 | PIPE | 70001- | |
| 8 | 418-03-32160 | HOSE | 70001- | |
| 9 | 07289-00070 | CLAMP | 70001- | |
| 10 | 07289-00055 | CLAMP | 70001- | |
| 11 | 07299-00070 | CLAMP | 70001- | |
| 12 | 418-03-31294 | BRACKET | 70001- | |
| 13 | 01010-81225 | BOLT | 70001- | |
| 13A | 01643-31232 | WASHER | 70025- | |
| 14 | 418-03-31251 | PLATE | 70025- | |
| 418-03-31250 | PLATE | 70001-70024 | ||
| 15 | 01010-81225 | BOLT | 70025- | |
| 01010-81225 | BOLT | 70001-70024 | ||
| 16 | 01643-31232 | WASHER | 70025- | |
| 01643-31232 | WASHER | 70001-70025 | ||
| 17 | 418-03-31222 | BRACKET | 70001- | |
| 18 | 418-03-32193 | BRACKET | 70001- | |
| 19 | 418-03-32261 | PLATE | 70025- | |
| 418-03-32260 | CLAMP | 70001-70024 | ||
| 20 | 124-54-26540 | WASHER | 70001- | |
| 21 | 01010-81230 | BOLT | 70025- |
