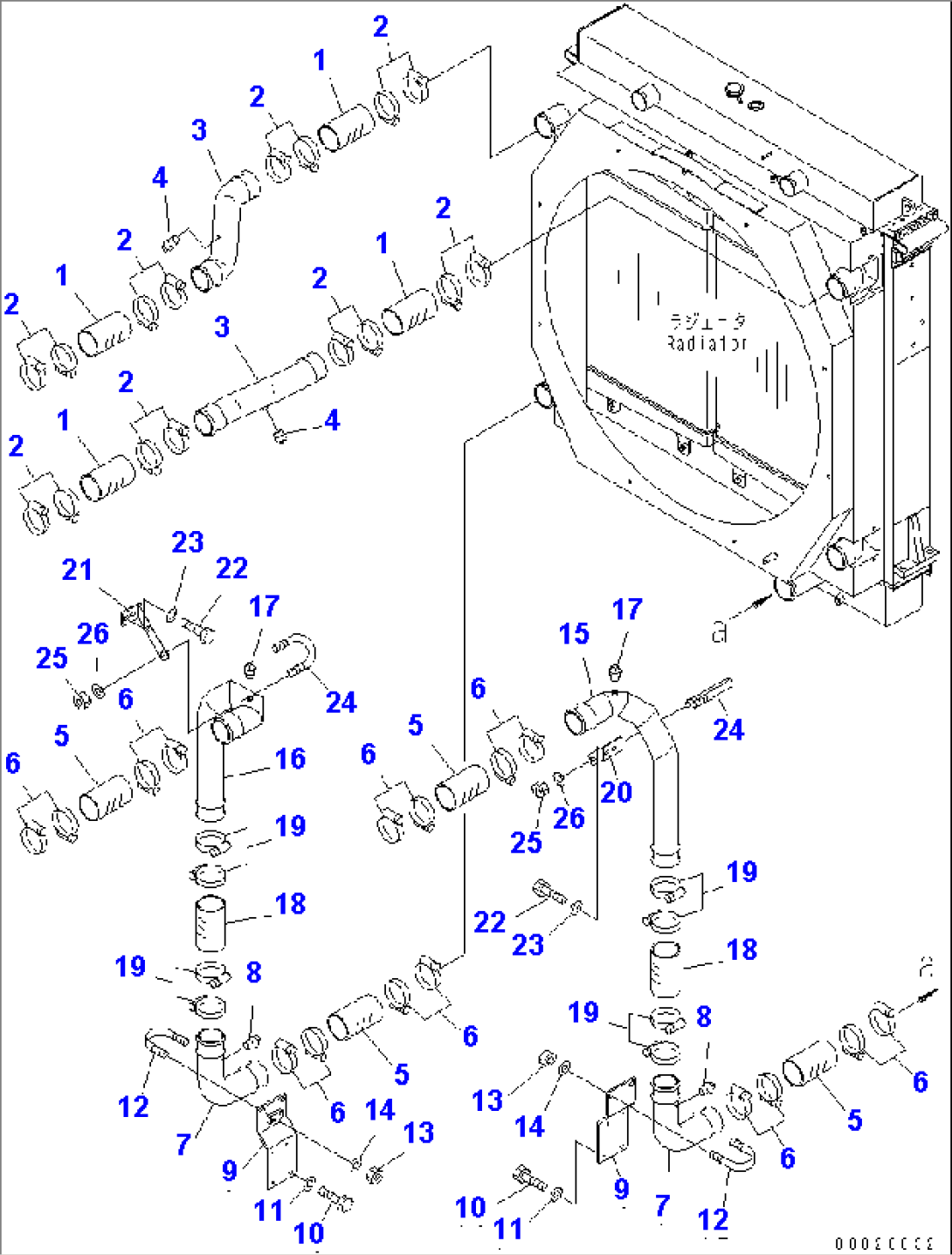

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-02-6E141 | HOSE | 52001- | |
| 2 | 07299-00105 | CLAMP | 52001- | |
| 3 | 427-03-A2240 | TUBE | 52001- | |
| 4 | 07042-70108 | PLUG | 52001- | |
| 5 | 566-02-6E141 | HOSE | 52001- | |
| 6 | 07299-00105 | CLAMP | 52001- | |
| 7 | 427-03-A2230 | TUBE | 52001- | |
| 8 | 07042-70108 | PLUG | 52001- | |
| 9 | 427-03-22470 | PLATE | 52001- | |
| 10 | 01010-81230 | BOLT | 52001- | |
| 11 | 01643-31232 | WASHER | 52001- | |
| 12 | 07283-31079 | CLIP | 52001- | |
| 13 | 01597-01211 | NUT | 52001- | |
| 14 | 01643-31232 | WASHER | 52001- | |
| 15 | 427-03-A2250 | TUBE,L.H. | 52001- | |
| 16 | 427-03-A2260 | TUBE,R.H. | 52001- | |
| 17 | 07042-70108 | PLUG | 52001- | |
| 18 | 566-02-6E141 | HOSE | 52001- | |
| 19 | 07299-00105 | CLAMP | 52001- | |
| 20 | 427-03-22450 | PLATE,L.H. | 52001- | |
| 21 | 427-03-22460 | PLATE,R.H. | 52001- | |
| 22 | 01010-81230 | BOLT | 52001- | |
| 23 | 01643-31232 | WASHER | 52001- | |
| 24 | 07283-31079 | CLIP | 52001- | |
| 25 | 01597-01211 | NUT | 52001- | |
| 26 | 01643-31232 | WASHER | 52001- |
