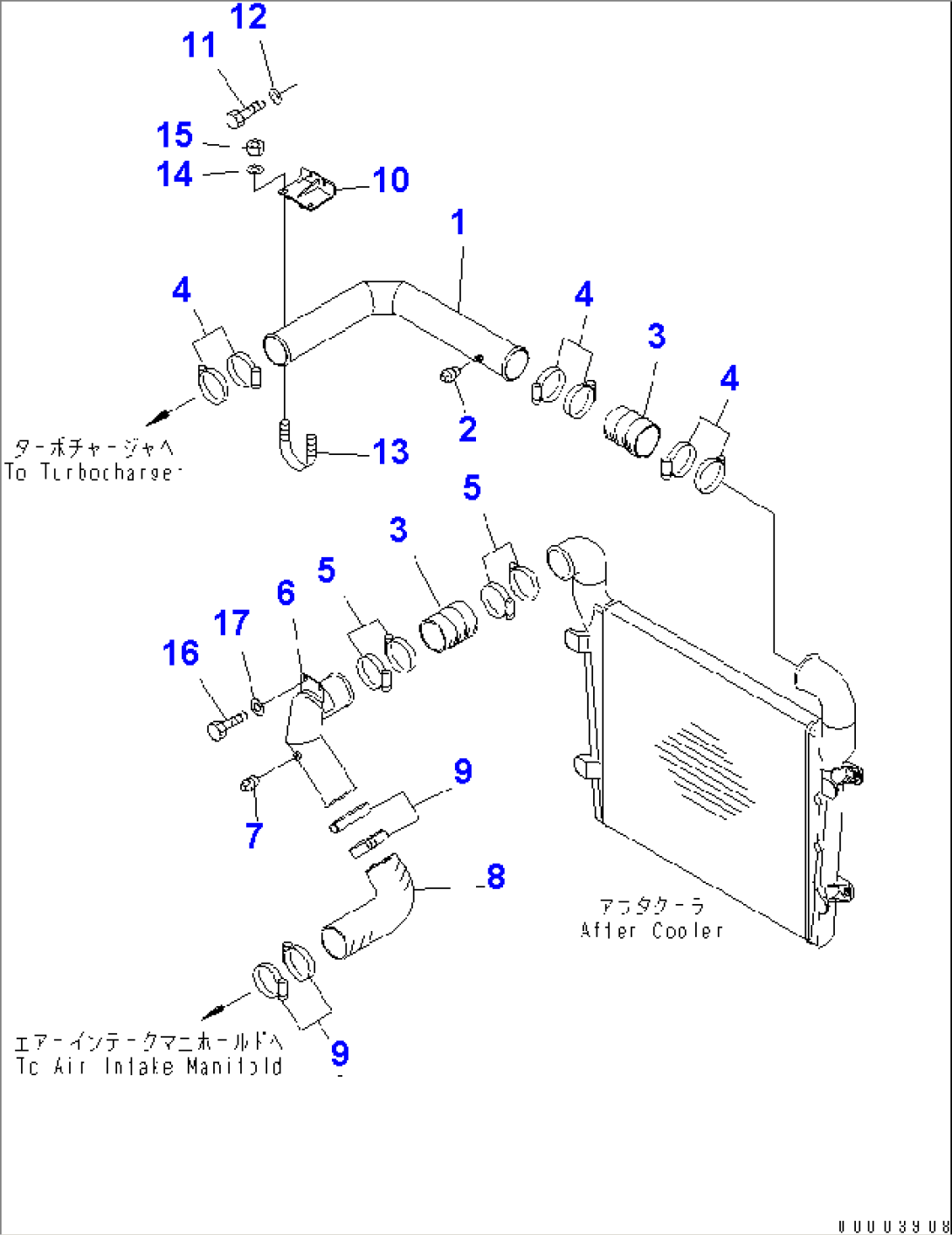

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-03-12410 | TUBE | 50001- | |
| 2 | 07042-70108 | PLUG | 50001- | |
| 3 | 6162-14-4820 | HOSE | 51001- | |
| 4 | 6162-14-4750 | CLAMP | 50005- | |
| 5 | 07289-00120 | CLAMP | 50005- | |
| 6 | 428-03-22110 | TUBE | 51001- | |
| 7 | 07042-70108 | PLUG | 50001- | |
| 8 | 428-03-22220 | HOSE | 51001- | |
| 9 | 07289-00120 | CLAMP | 50001- | |
| 10 | 428-03-12431 | PLATE | 50001- | |
| 11 | 01010-81225 | BOLT | 50001- | |
| 12 | 01643-31232 | WASHER | 50001- | |
| 13 | 07283-31185 | CLIP | 50001- | |
| 14 | 01643-31232 | WASHER | 50001- | |
| 15 | 01597-01211 | NUT | 50001- | |
| 16 | 01010-81225 | BOLT | 51001- | |
| 17 | 01643-31232 | WASHER | 51001- |
