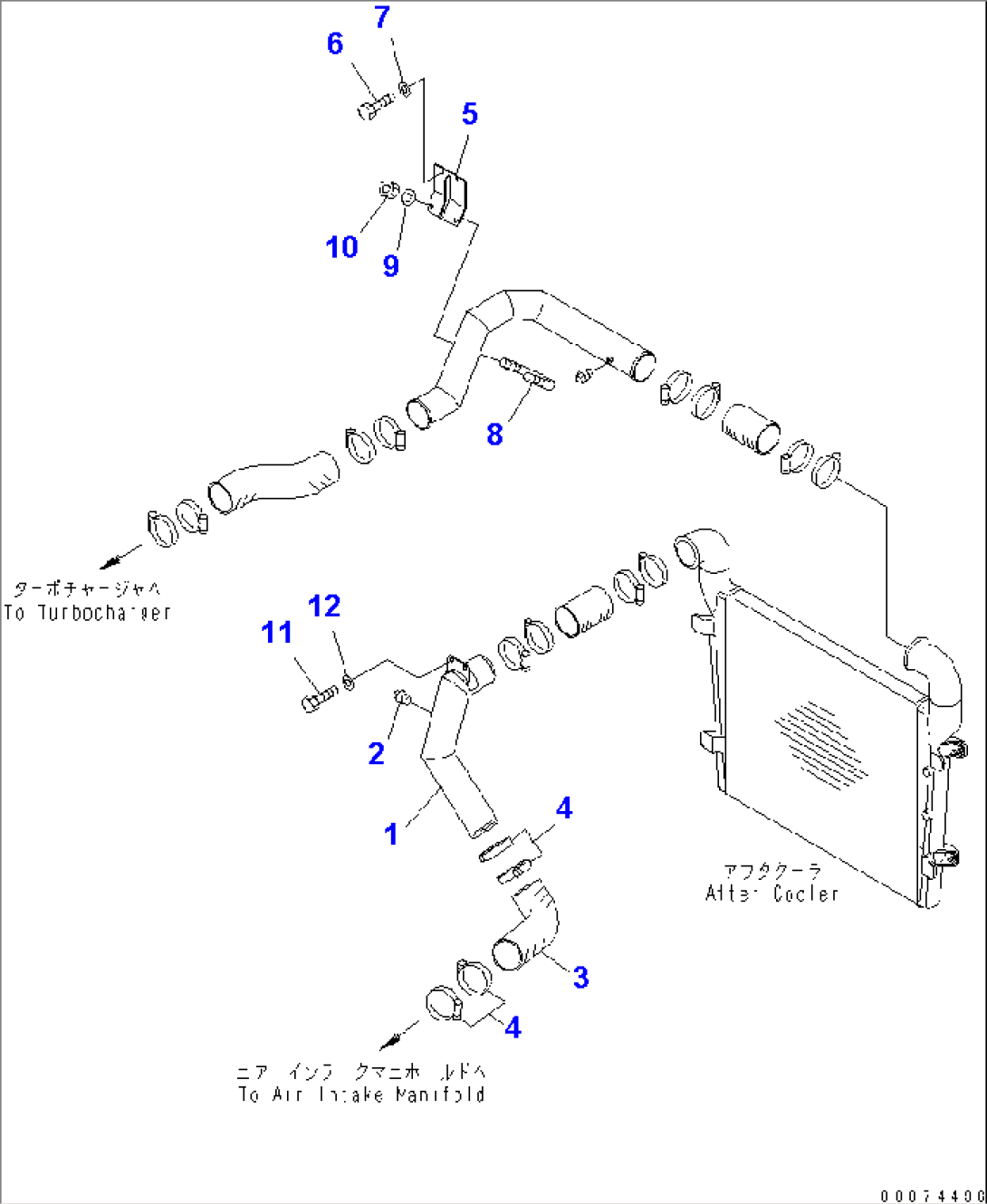

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-03-22270 | TUBE | 51152- | |
| 1 | 428-03-22170 | TUBE | 51075-51151 | |
| 2 | 07042-70108 | PLUG | 51075- | |
| 3 | 428-03-22220 | HOSE | 51075- | |
| 4 | 07289-00120 | CLAMP | 51075- | |
| 5 | 428-03-22260 | BRACKET | 51152- | |
| 5 | 428-03-21160 | BRACKET | 51075-51151 | |
| 6 | 01010-81225 | BOLT | 51075- | |
| 7 | 01643-31232 | WASHER | 51075- | |
| 8 | 07283-31185 | CLIP | 51075- | |
| 9 | 01643-31232 | WASHER | 51075- | |
| 10 | 01597-01211 | NUT | 51075- | |
| 11 | 01010-81225 | BOLT | 51075- | |
| 12 | 01643-31232 | WASHER | 51075- |
