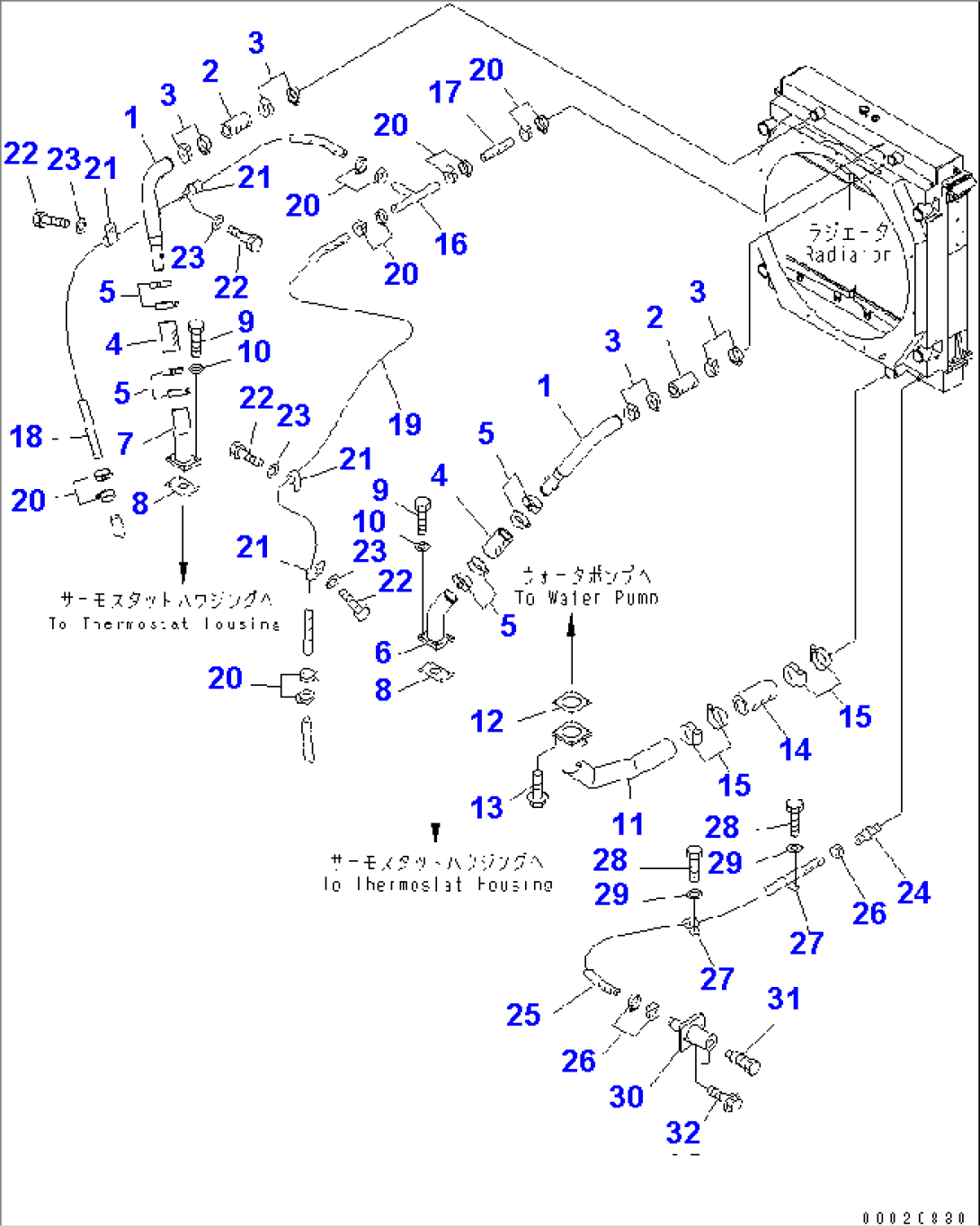

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-22310 | TUBE | 52001- | |
| 2 | 427-03-11430 | HOSE | 52001- | |
| 3 | 07299-00095 | CLAMP | 52001- | |
| 4 | 07260-25820 | HOSE | 52001- | |
| 5 | 07299-00070 | CLAMP | 52001- | |
| 6 | 427-03-22320 | TUBE,L.H. | 52001- | |
| 7 | 427-03-22330 | TUBE,R.H. | 52001- | |
| 8 | 427-03-12520 | SEAL | 52001- | |
| 9 | 01011-81030 | BOLT | 52001- | |
| 10 | 01643-31032 | WASHER | 52001- | |
| 11 | 427-03-22340 | TUBE | 52001- | |
| 12 | 6215-61-7361 | GASKET | 52023- | |
| 12 | 6215-61-7360 | GASKET | 52001-52022 | |
| 13 | 01435-01230 | BOLT | 52001- | |
| 14 | 07260-29928 | HOSE | 52001- | |
| 15 | 07299-00120 | CLAMP | 52001- | |
| 16 | 427-03-12460 | TUBE | 52001- | |
| 17 | 07260-20906 | HOSE | 52001- | |
| 18 | 07261-20918 | HOSE | 52001- | |
| 19 | 07261-20914 | HOSE | 52001- | |
| 20 | 07281-00197 | CLAMP | 52001- | |
| 21 | 08036-01814 | CLIP | 52001- | |
| 22 | 01010-81020 | BOLT | 52001- | |
| 23 | 01643-31032 | WASHER | 52001- | |
| 24 | 6137-81-3231 | NIPPLE | 52001- | |
| 25 | 427-03-23140 | HOSE | 52001- | |
| 26 | 07281-00289 | CLAMP | 52001- | |
| 27 | 08036-23014 | CLIP | 52001- | |
| 28 | 01010-81020 | BOLT | 52001- | |
| 29 | 01643-51032 | WASHER | 52001- | |
| 30 | 426-01-11231 | TUBE | 52001- | |
| 31 | 424-01-11110 | PLUG | 52001- | |
| 32 | 01435-01030 | BOLT | 52001- |
