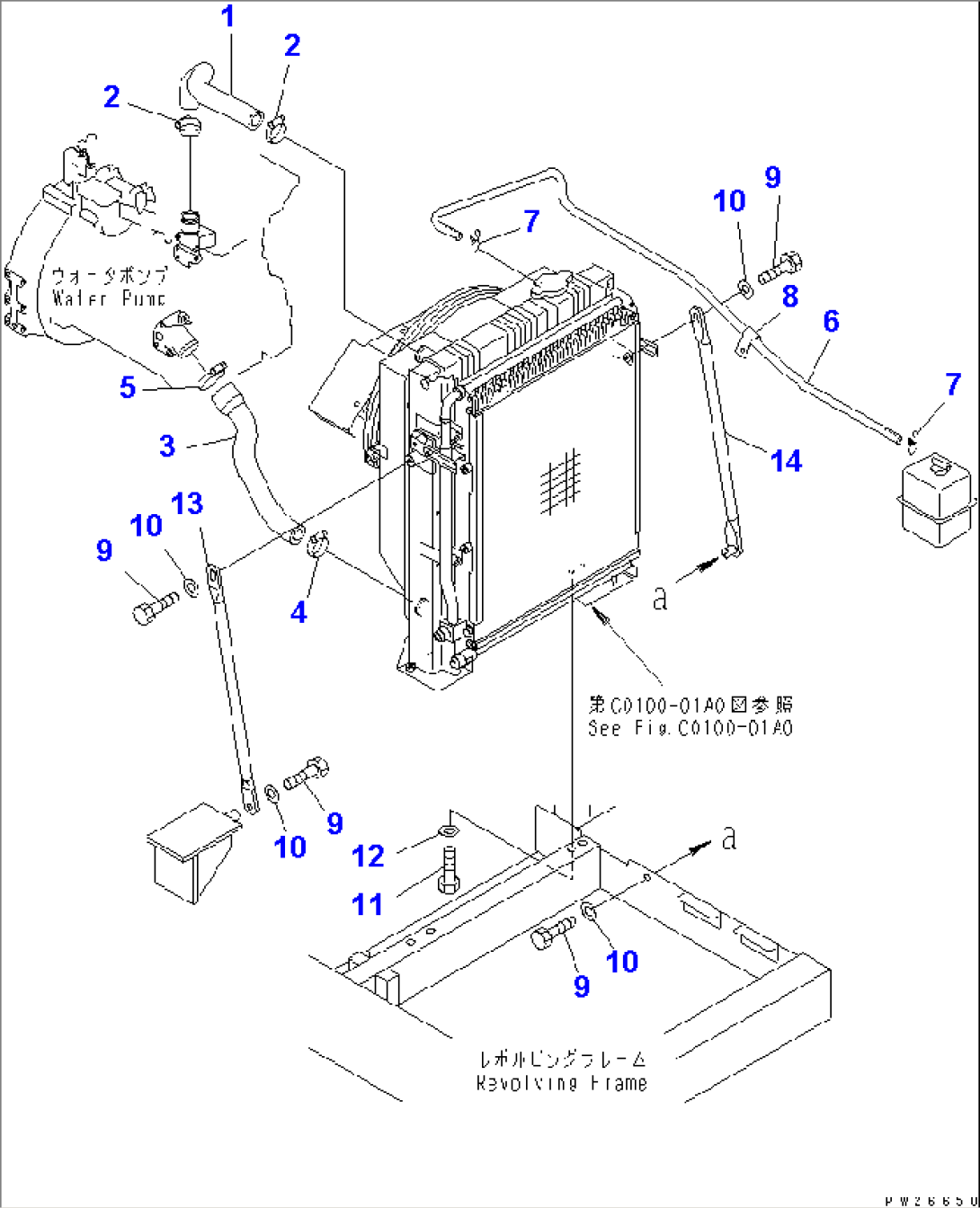

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 203-03-67181 | HOSE | 1001- | |
| 2 | 07289-00055 | CLAMP | 1001- | |
| 3 | 203-03-67190 | HOSE | 1001- | |
| 4 | 07289-00055 | CLAMP | 1001- | |
| 5 | 07289-00070 | CLAMP | 1001- | |
| 6 | 203-03-61730 | HOSE | 1001- | |
| 7 | 206-03-43340 | CLIP | 1001- | |
| 8 | 08036-11214 | CLIP | 1001- | |
| 9 | 01010-51230 | BOLT | 1001- | |
| 10 | 175-54-34170 | WASHER | 1001- | |
| 11 | 01010-51235 | BOLT | 1001- | |
| 12 | 175-54-34170 | WASHER | 1001- | |
| 13 | 203-03-67210 | STAY | 1001- | |
| 14 | 203-03-67140 | STAY | 1001- |
