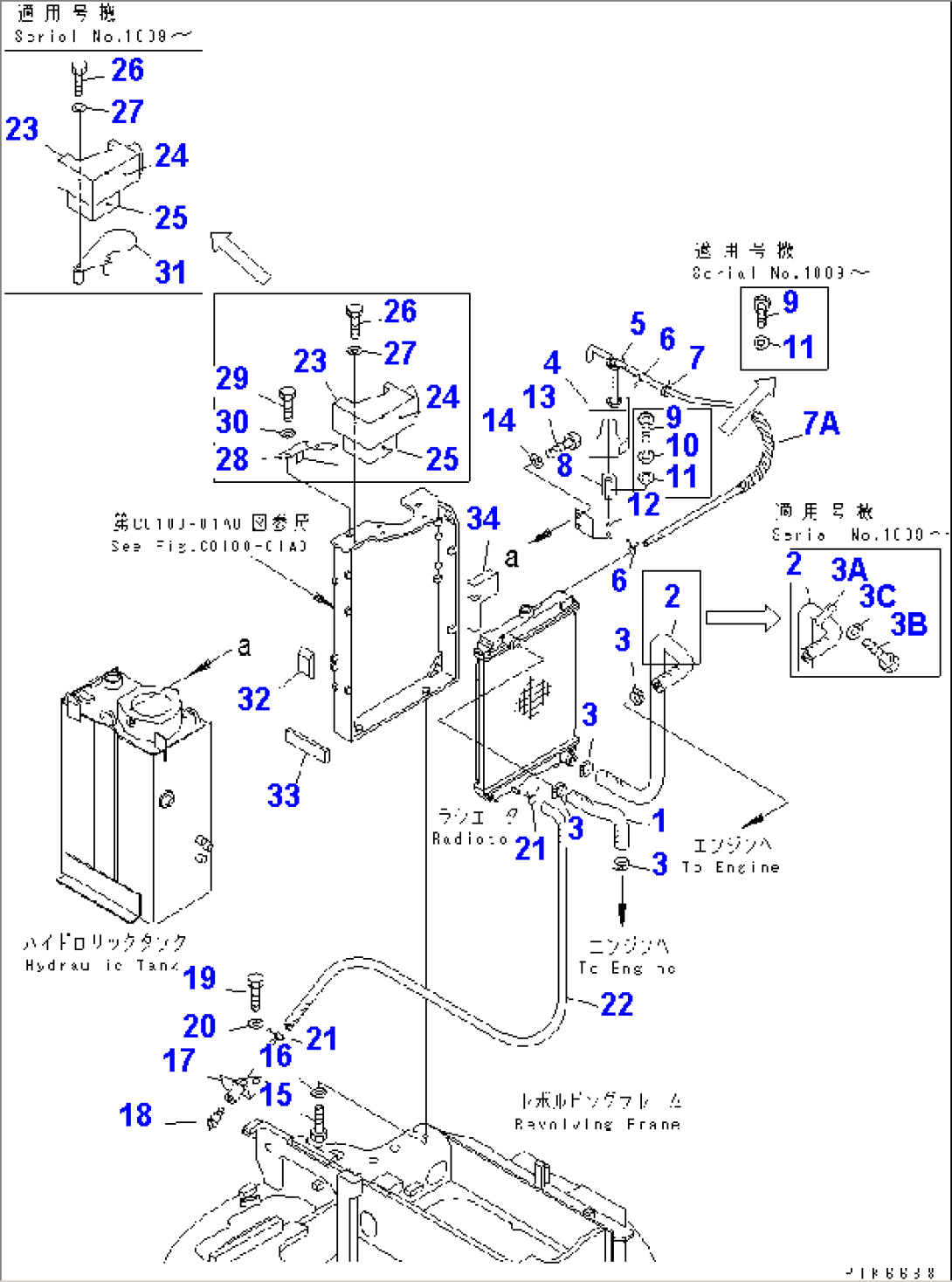

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21U-03-31160 | HOSE | 1001- | |
| 2 | 21U-03-31171 | HOSE | 1001- | |
| 3 | 07281-00419 | CLAMP | 3001- | |
| 3 | 07289-00035 | CLAMP | 1001-2999 | |
| 3A | 155-61-15350 | CLIP | 1333- | |
| 3A | 281-01-13180 | CLIP | 1009-1332 | |
| 3B | 01010-81020 | BOLT | 1009- | |
| 3C | 01643-31032 | WASHER | 1009- | |
| 4 | 20T-03-81360 | TANK | 1001- | |
| 5 | 20T-03-81370 | CONDUCTION ASS'Y | 1001- | |
| 6 | 20T-03-71450 | CLAMP | 1001- | |
| 7 | 08034-30521 | BAND | 1001- | |
| 7A | 08017-21303 | CONDUIT | 1009- | |
| 8 | 20T-03-71420 | BRACKET | 1001- | |
| 9 | 01010-80616 | BOLT | 1009- | |
| 9 | 01220-40616 | SCREW | 1001-1008 | |
| 10 | 01602-20619 | WASHER | 1001-1008 | |
| 11 | 01643-30623 | WASHER | 1001- | |
| 12 | 22F-03-11310 | BRACKET | 1001- | |
| 13 | 01010-81020 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 01010-81040 | BOLT | 1009-1920 | |
| 15 | 01010-81050 | BOLT | 1001-1008 | |
| 16 | 01643-31032 | WASHER | 1001- | |
| 17 | 21U-03-31370 | BOSS,COCK | 1001- | |
| 18 | 20Y-03-21980 | PLUG | 1001- | |
| 19 | 01010-81020 | BOLT | 1001- | |
| 20 | 01643-31032 | WASHER | 1001- | |
| 21 | 206-03-43340 | CLIP | 1001- | |
| 22 | 22F-03-11320 | HOSE | 1001- | |
| 23 | 22F-03-11260 | PLATE ASS'Y | 1001- | |
| 24 | 22F-03-11270 | SHEET | 1001- | |
| 25 | 22F-03-11280 | SHEET | 1001- | |
| 26 | 01010-81070 | BOLT | 1333- | |
| 26 | 01010-81060 | BOLT | 1009-1332 | |
| 26 | 01010-81025 | BOLT | 1001-1008 | |
| 27 | 01643-31032 | WASHER | 1001- | |
| 28 | 22F-03-11410 | COVER | 1001-1008 | |
| 29 | 01010-81025 | BOLT | 1001-1008 | |
| 30 | 01643-31032 | WASHER | 1001-1008 | |
| 31 | 22F-03-11360 | PLATE | 1009- | |
| 32 | 22F-03-11350 | SHEET | 1009- | |
| 33 | 22F-60-11170 | SHEET | 1009- | |
| 34 | 22F-46-11450 | SHEET | 1009- |
