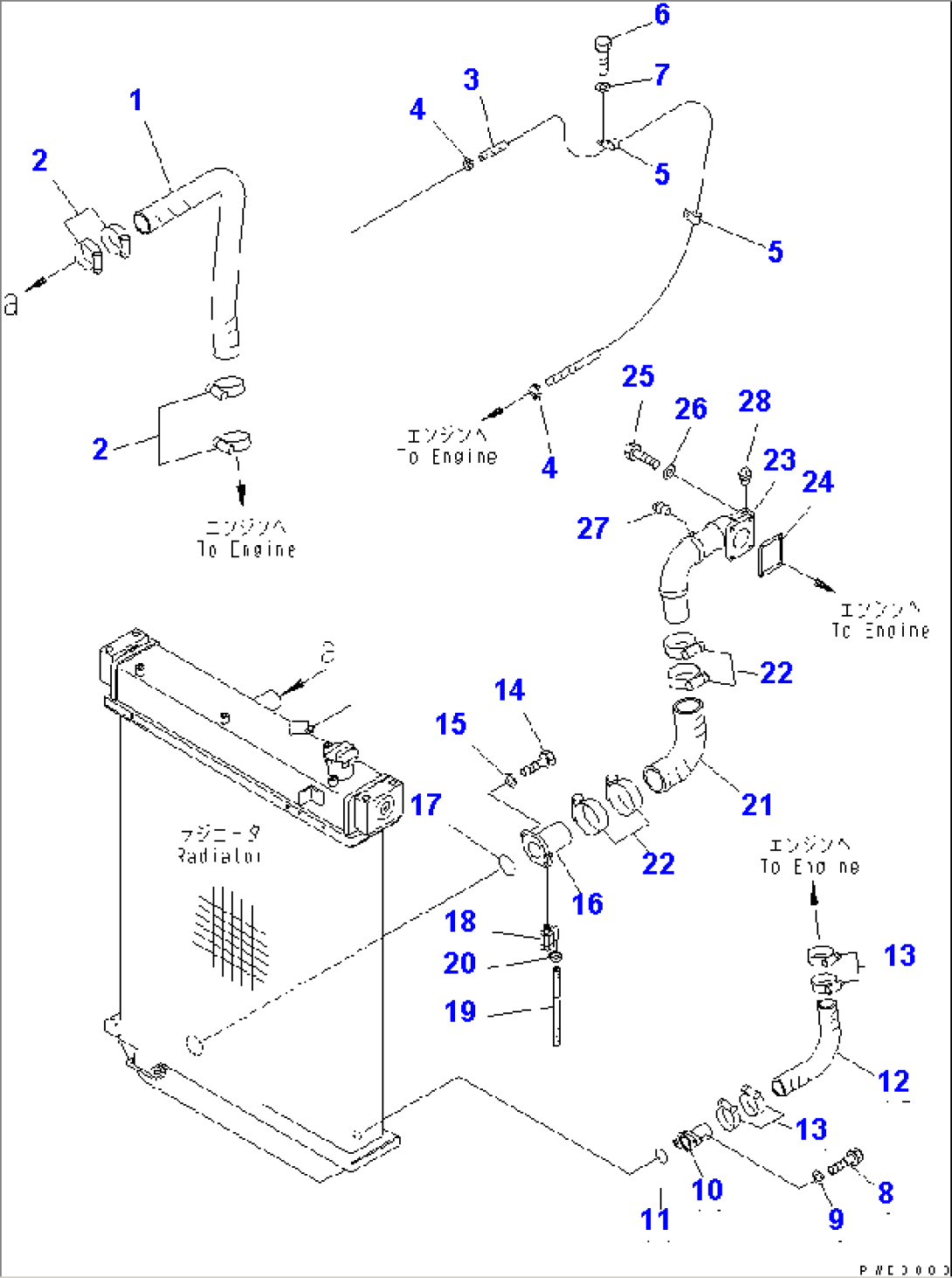

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-03-13310 | HOSE | 65275- | |
| 2 | 07289-00070 | CLAMP | 66399- | |
| 2 | 07289-00070 | CLAMP | 65275-66398 | |
| 3 | 09483-10311 | HOSE | 65275- | |
| 4 | 11Y-09-11140 | CLIP | 66399- | |
| 4 | 07281-00197 | CLAMP | 65275-66398 | |
| 5 | 04434-51612 | CLIP | 65275- | |
| 6 | 01010-81220 | BOLT | 65275- | |
| 7 | 01643-31232 | WASHER | 65275- | |
| 8 | 01010-81235 | BOLT | 65275- | |
| 9 | 01643-31232 | WASHER | 65275- | |
| 10 | 17A-03-13180 | TUBE | 65275- | |
| 11 | 07000-73045 | O-RING | 65275- | |
| 12 | 17A-03-13320 | HOSE | 65275- | |
| 13 | 07289-00055 | CLAMP | 66399- | |
| 13 | 07289-00055 | CLAMP | 65275-66398 | |
| 14 | 01010-81235 | BOLT | 65275- | |
| 15 | 01643-31232 | WASHER | 65275- | |
| 16 | 17A-03-23451 | TUBE | 65106- | |
| 16 | \0\17A-03-13141 | TUBE | 65001-65105 | |
| 17 | 07000-62075 | O-RING | 65275- | |
| 18 | 07730-40004 | VALVE | 65275- | |
| 19 | 195-03-13180 | HOSE | 65275- | |
| 20 | 07285-00155 | CLIP | 65275- | |
| 21 | 17A-03-13330 | HOSE | 65275- | |
| 22 | 07289-00095 | CLAMP | 66399- | |
| 22 | 07289-00095 | CLAMP | 65275-66398 | |
| 23 | 17A-03-13151 | TUBE | 65275- | |
| 24 | 17A-03-13170 | GASKET | 65275- | |
| 25 | 01010-81035 | BOLT | 65275- | |
| 26 | 01643-31032 | WASHER | 65275- | |
| 27 | 07042-30108 | PLUG | 65275- | |
| 28 | 07042-70415 | PLUG | 65275- |
