| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-03-73120 | COOLER | B45001- | |
| 2 | 07730-50004 | VALVE | B45001- | |
| 3 | 07270-01520 | TUBE | B45001- | |
| 4 | 07280-01920 | CLAMP | B45001- | |
| 5 | 195-03-41380 | CUSHION | B45001- | |
| 6 | 417-43-16210 | WASHER | B45001- | |
| 7 | 01010-81040 | BOLT | B45001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61px 15e0 bw s/n b45001 up
- Cooling system
- Cooling (power line cooler)
Поиск по каталогу

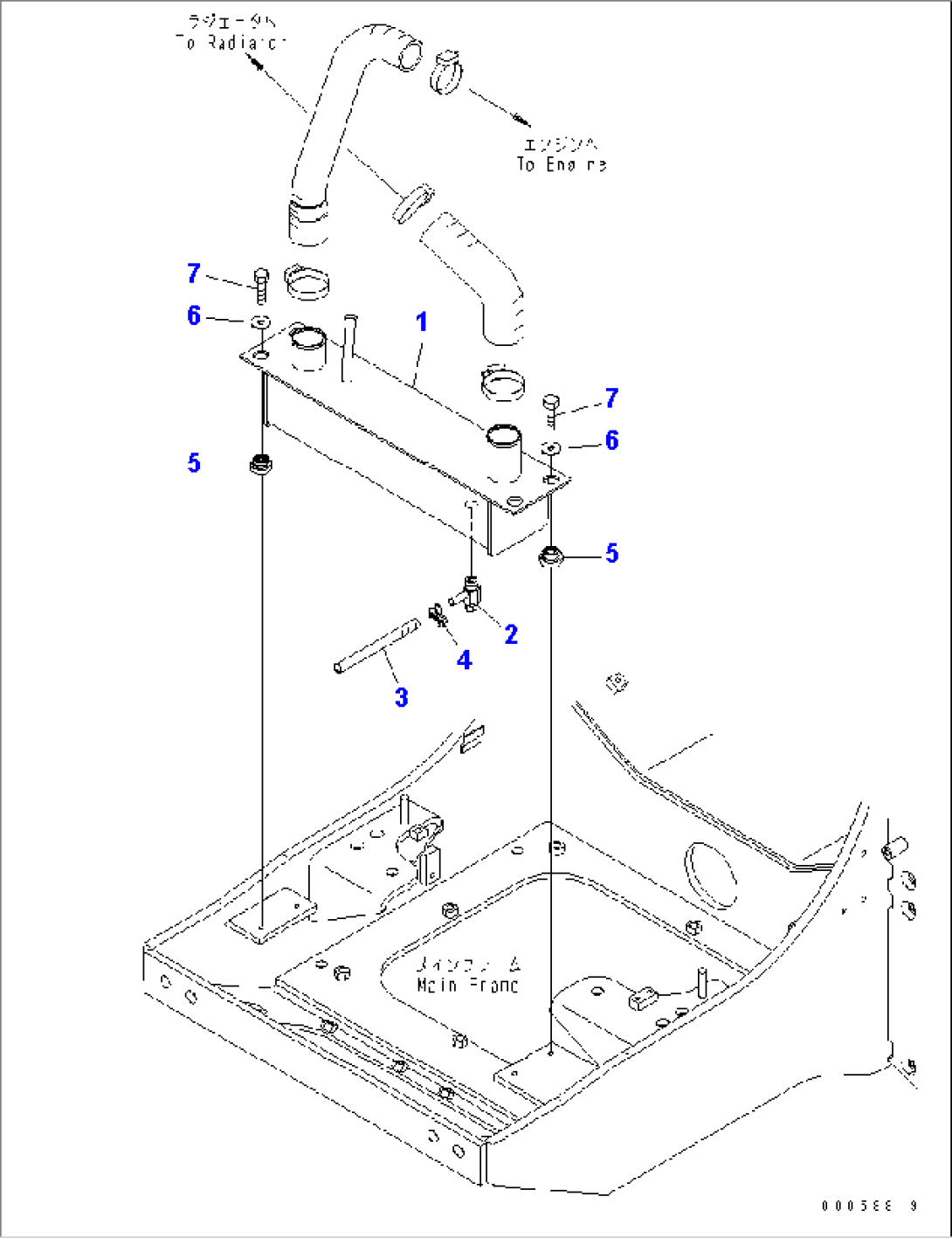

COOLING (POWER LINE COOLER)
